WeChat mini game ad breakdown data integration plan

Last updated 10/03/2026

tip

Note that data generated by third-party data integration counts toward the cluster's data consumption

Summary

Interface overview

Interface	Type	Granularity	Attribution	Cost	Revenue	Impressions	Clicks	Conversions
Mini game ad breakdown data	API	Aggregated metrics			✅	✅	✅

The WeChat ad analytics data API provides a variety of data reports. The AE system supports mini program/mini game ad breakdown data, so you can get impression, click, and revenue data for each ad unit

Integration process

1. Develop an API for getting the WeChat Access Token
2. Log in to the AE backend, go to the Third-party Integration module, add a WeChat Mini game ad breakdown data integration plan, and complete the related configuration
3. Check whether the AE system receives the data successfully, and build reports

1. Develop an API for getting the Access Token

Getting the Access Token from the WeChat platform repeatedly invalidates the previously obtained Access Token. To prevent data pulls from refreshing the Access Token, you need to provide a central control server that gets and refreshes the Access Token in one place, and provide ThinkingAI with an API for getting the Access Token.

The API's Response parameters are the same as those of the official WeChat API:

{
    'access_token': '**************',
    'expires_in': 7200
}

The parameters are as follows:

Parameter	Description
access_token	The obtained credential
expires_in	Credential validity period, in seconds

2. Plan configuration

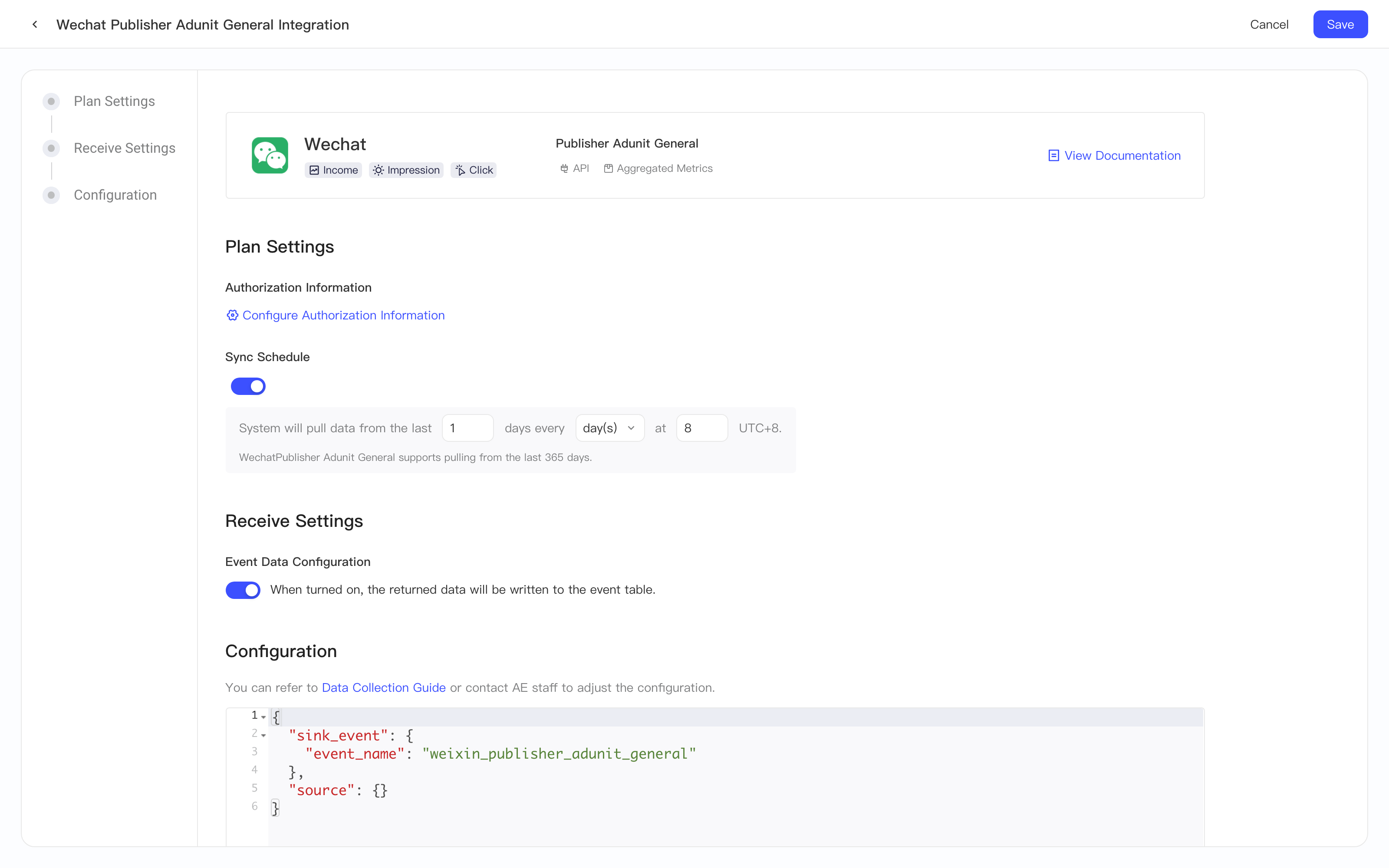

Next, log in to the AE backend, create an integration plan for WeChat mini game ad breakdown data, and complete the configuration

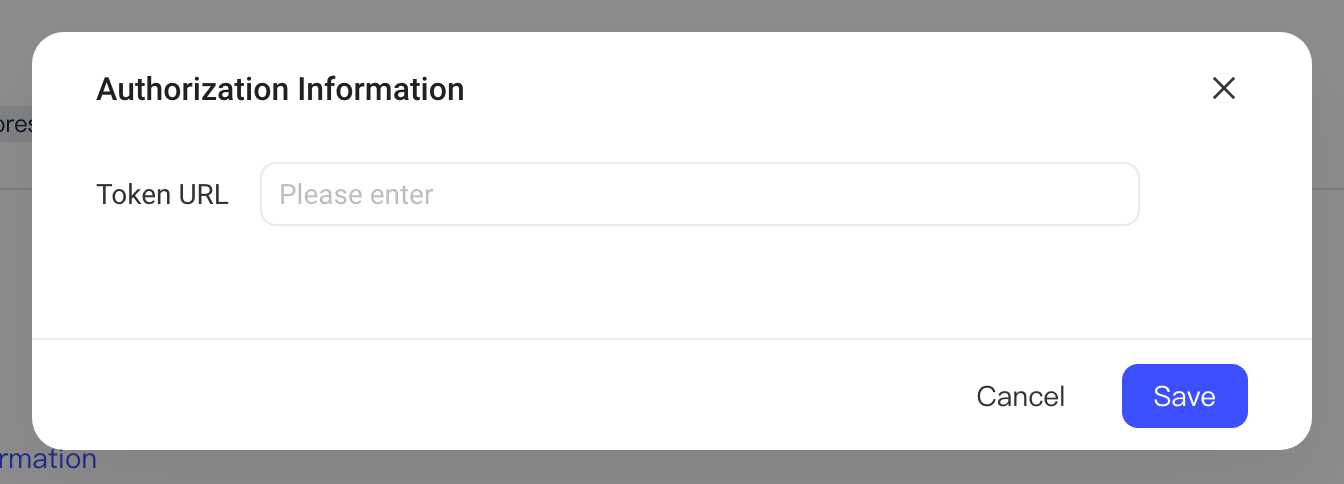

2.1 Configure authorization information

First, click the Configure authorization information button in the authorization information section. In the authorization information pop-up, enter the Access Token API that you developed. Make sure that the API is reachable and check the format of the data it returns

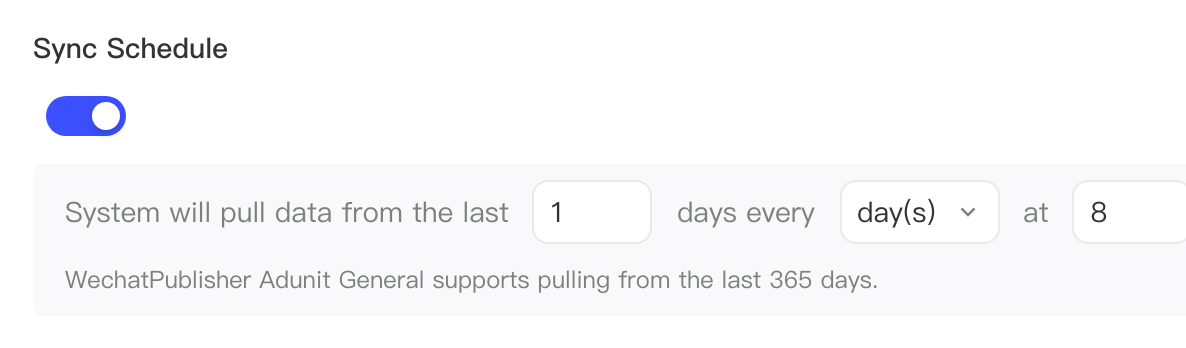

2.2 Sync Schedule

In the Sync Schedule module, you can set the policy for the AE system to pull WeChat ad monetization data on a schedule. You can choose to pull data for a period of time at a specific time every day. Because pulled data also counts toward the data volume, avoid pulling data for overly long periods on a schedule

note

We recommend pulling no more than 90 days at a time. The hint on the configuration page, "The time range can be up to the past 365 days", refers to the historical range that can be pulled, while 90 days is the maximum span of a single request.

2.3 Receive Settings

You can control whether the data is written as events. If you turn this off, the data is not written to the event table, so do not turn off this setting.

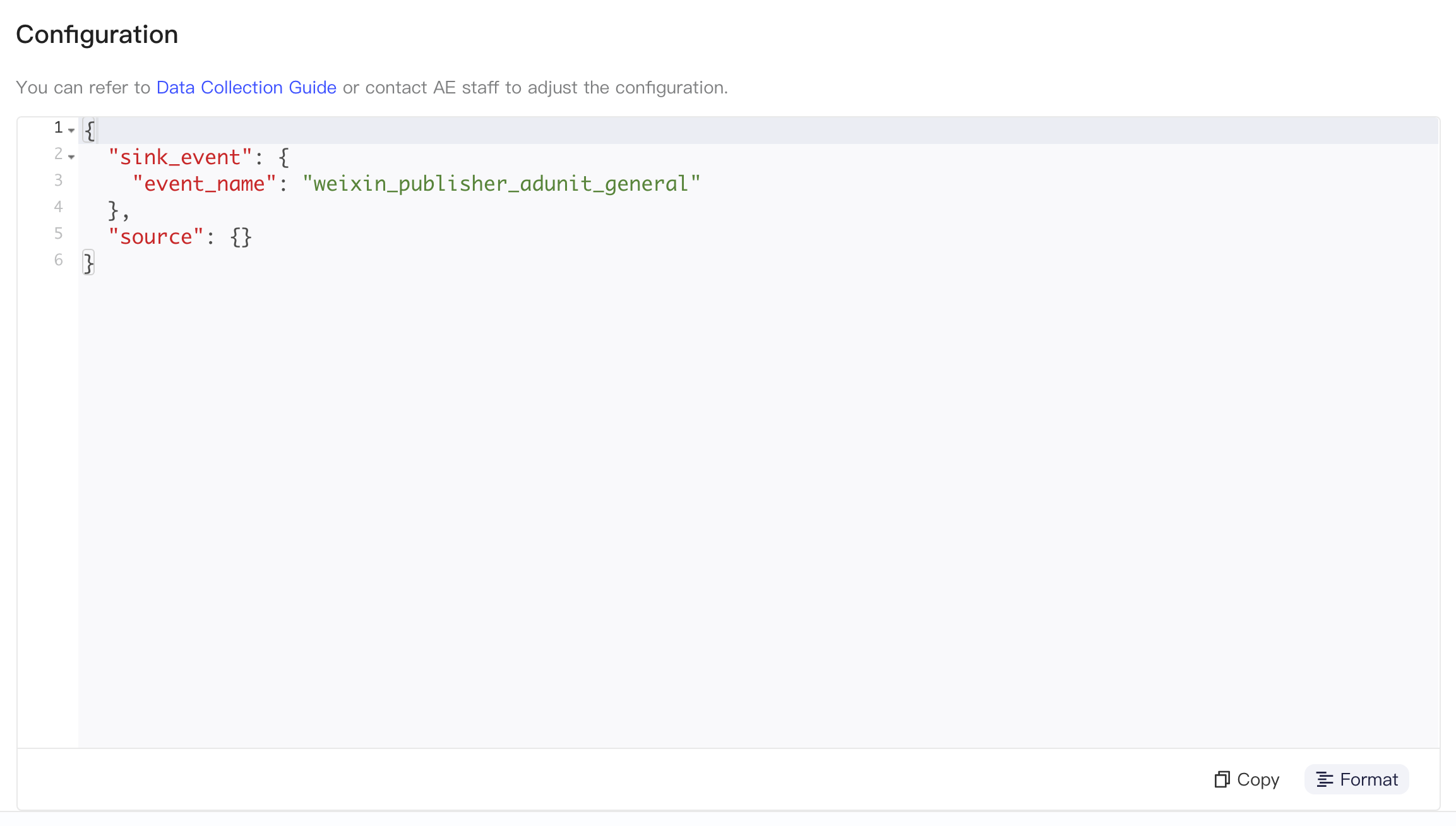

2.4 Configuration

Finally, you can control the details of data pulling in the integration configuration module, such as the event name after the data is ingested.

The configuration is a JSON, and you can adjust its content as needed

Module	Name	Description
sink_event	event_name	Event name after ingestion; customizable

2.5 Ingestion rules

• Because WeChat ad monetization data is returned as aggregated data, we use a fixed value as its user identifier. You can think of all the data as attached to one virtual user
• The date field in the data, that is, the date of the data, is set as the #event_time of the aggregated data
• The event name is weixin_publisher_adunit_general
• Metric fields are ingested as numeric types, and the other fields are ingested as strings

Parameter	Description
date	Data date
ad_unit_id	Ad placement ID
ad_unit_name	Ad placement name
ad_slot	Ad unit type name
req_succ_count	Successful ad requests
exposure_count	Impressions
exposure_rate	Exposure rate
click_count	Clicks
click_rate	Click-through rate
income	Revenue (in cents)
ecpm	Revenue per thousand ad impressions (in cents)

2.6 Standardized fields

The following event properties are standardized:

Original field	Standardized field	Description
ad_unit_id	te_ads_object.ad_group_id	Ad placement ID
ad_unit_name	te_ads_object.ad_group_name	Ad placement name
ad_slot	te_ads_object.placement	Ad unit type name
exposure_count	te_ads_object.impressions	Impressions
click_count	te_ads_object.clicks	Clicks
income (divided by 100)	te_ads_object.revenue	Revenue (in CNY)
CNY (fixed value)	te_ads_object.currency	Currency of the revenue
