Pangle Gromore integration plan

Last updated 10/03/2026

tip

Note that data generated by third-party data integration counts toward the cluster's data consumption

Summary

Interface overview

Interface	Type	Granularity	Attribution	Cost	Revenue	Impressions	Clicks	Conversions
Aggregated data API	API	Aggregated metrics			✅	✅	✅

Pangle Gromore provides the aggregated data report API, which you can use to get aggregated impression, click, and revenue data for monetization ads

Integration process

1. In the Pangle backend, get the Security key and RoleId from the aggregated data report API documentation, and get the user's UserId
2. Log in to the AE backend, go to the Third-party Integration module, add a Pangle Gromore integration, and create an integration plan
3. Check whether the AE system receives the data successfully, and build reports

1. Get the authorization information

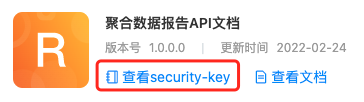

The first step in connecting Pangle Gromore data is to log in to the Pangle backend, select Integration - API Integration Docs in the left sidebar, and click the part shown in the image below to get the user's Security key and RoleId

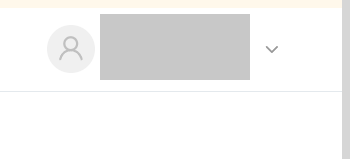

In addition, you need to get the user's UserId. In the upper-right corner of the page, the ID field under the user name is the UserId

2. Plan configuration

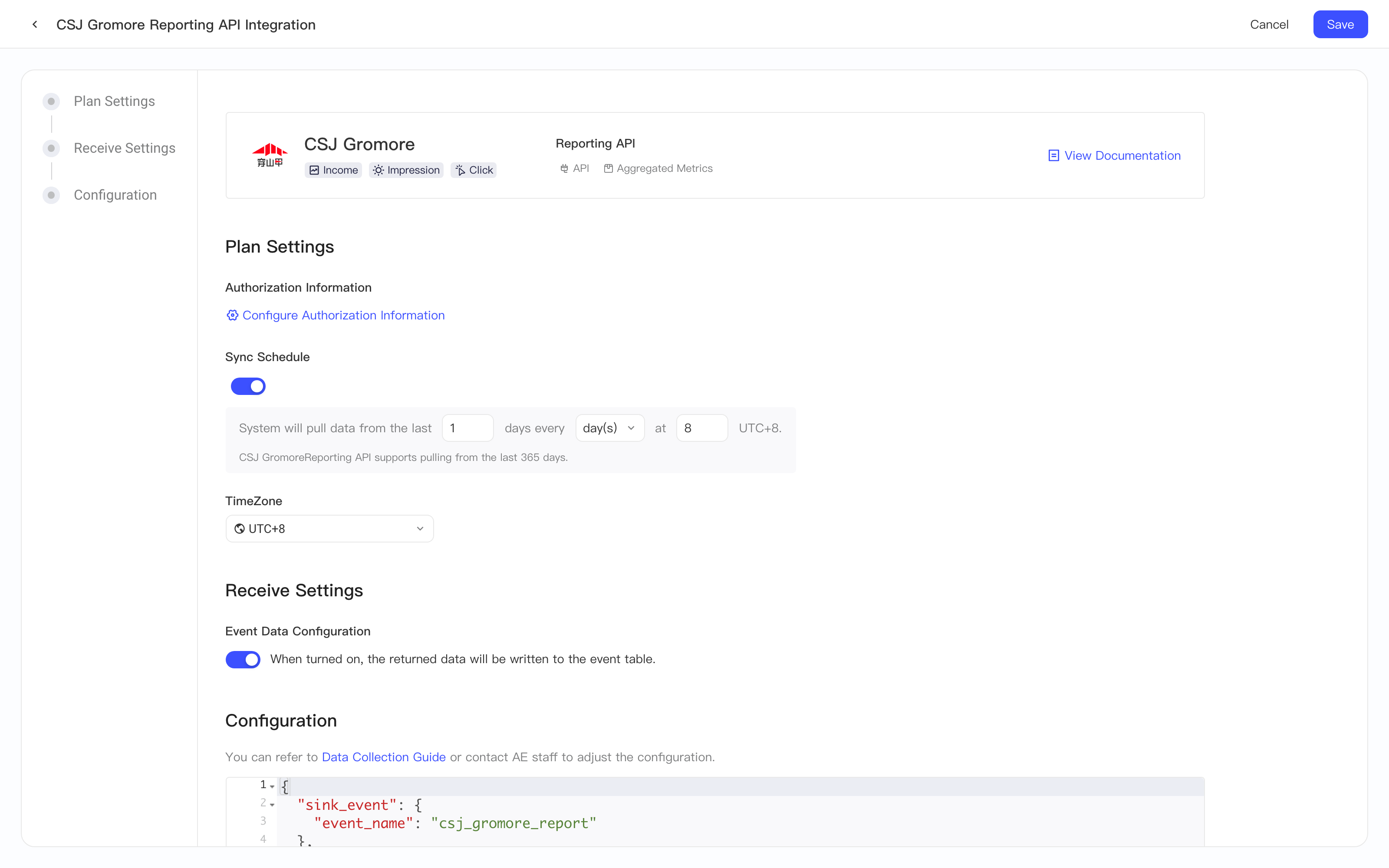

After getting the authorization information from the Pangle Gromore platform, you can log in to the AE system and configure the new plan in the Third-party Integration module. The image below shows the configuration page of the Pangle Gromore aggregated data API. Follow this section to create the plan:

2.1 Authorization information configuration

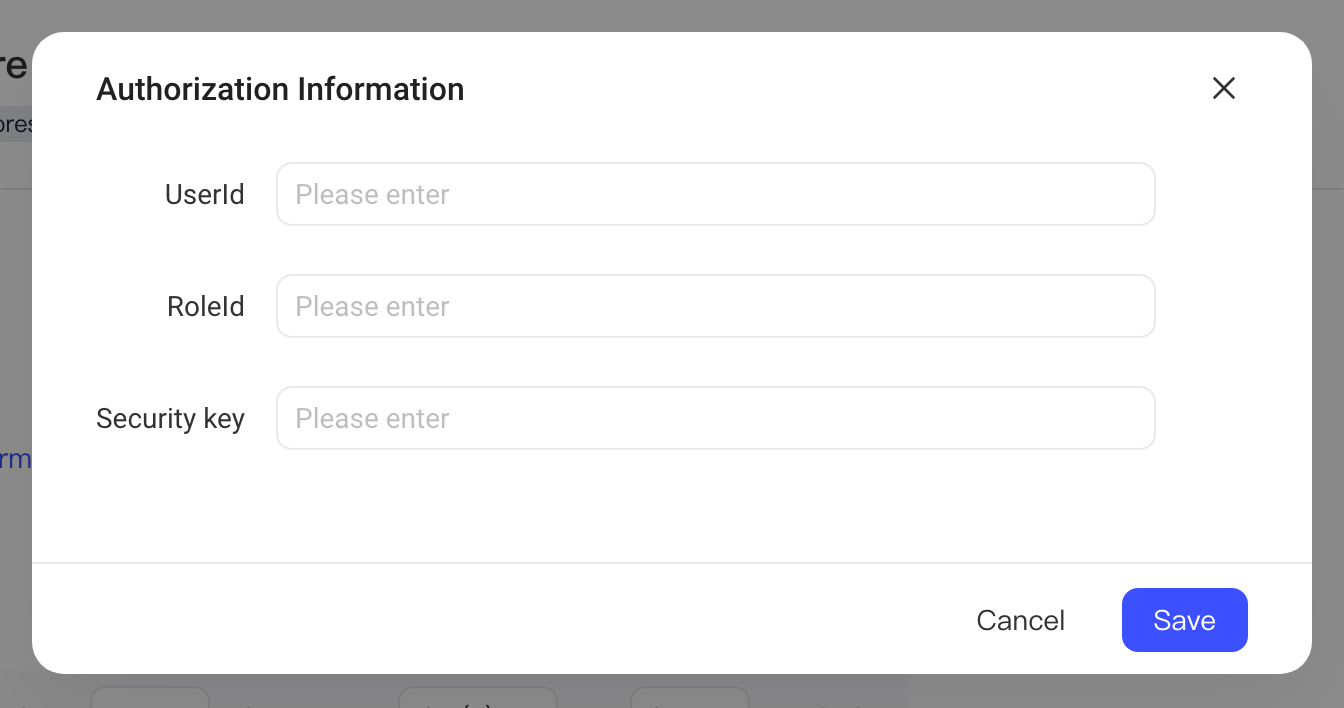

Click the Configure authorization information button under Authorization Information, and enter the information you got from the Pangle Gromore platform in the pop-up

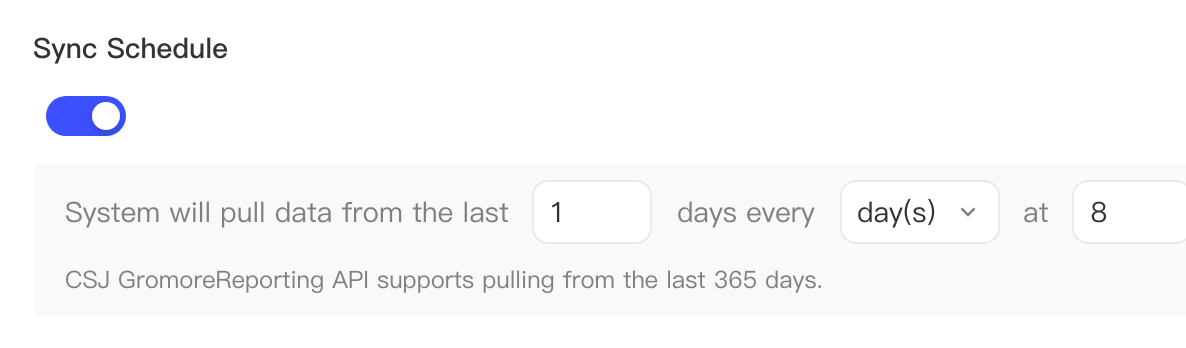

2.2 Sync Schedule

In the Sync Schedule module, you can set the policy for the AE system to pull Pangle Gromore data on a schedule. You can choose to pull data for a period of time at a specific time every day or every hour. Because pulled data also counts toward the data volume, avoid pulling data for overly long periods on a schedule

2.3 Pull time zone

You can also set the time zone of the pulled data. The default is UTC+8

2.4 Event Data Configuration

After you turn on the Event Data Configuration switch, all data sent back is written to the event table. We recommend that you enable event data ingestion.

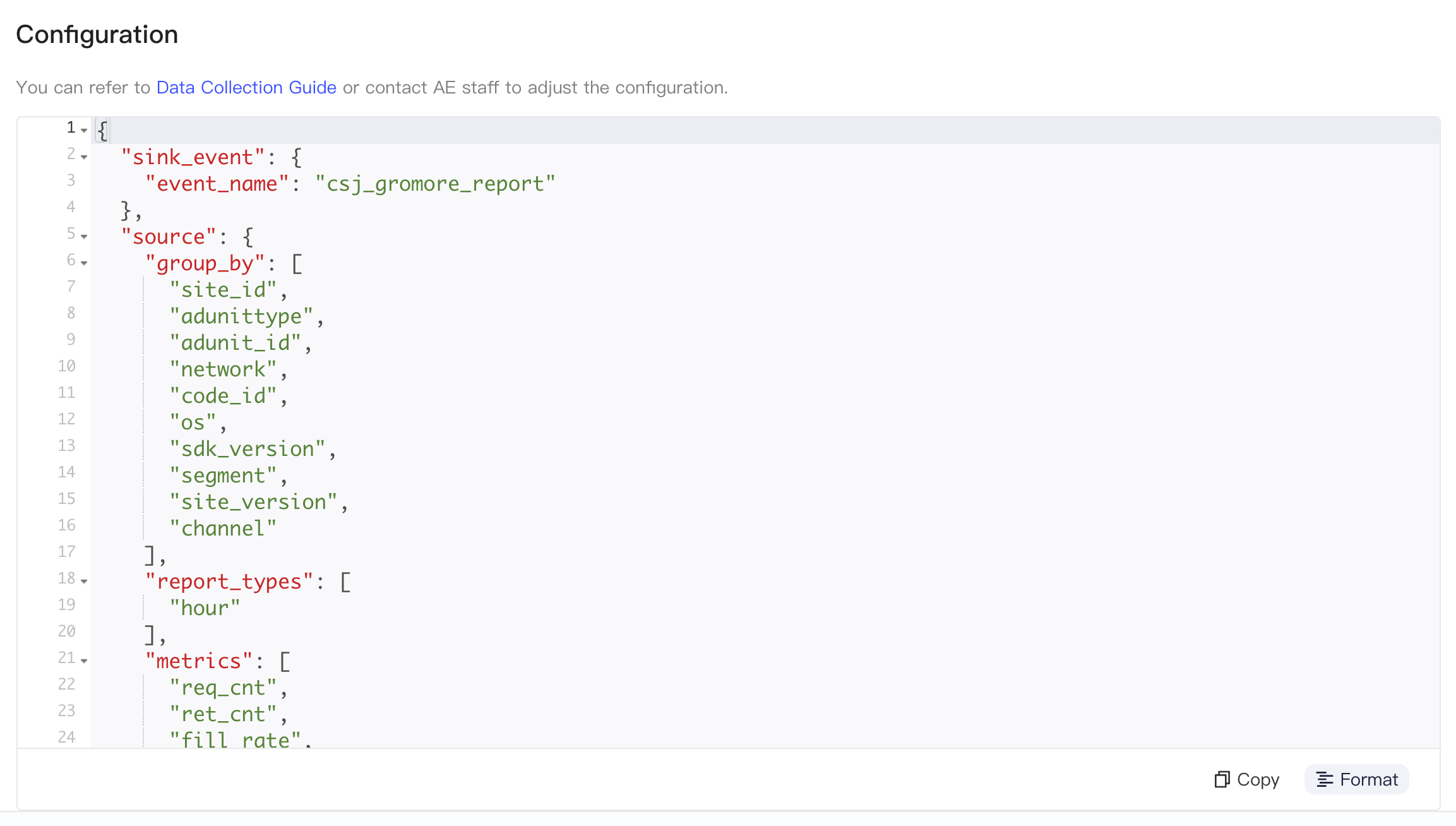

2.5 Configuration

Finally, in the Configuration module, you can control the detailed settings of data pulling, including the time aggregation granularity of the data, the metric fields and dimensions to pull, and the event name after ingestion.

The content of the configuration is a JSON, which you can customize as follows:

Module	Name	Description
sink_event	event_name	Event name after ingestion; customizable; string type.
source	report_types	The report type for data pulling, mainly a choice between daily and hourly reports. Options: Daily report: day Hourly report: hour
	metrics	Metric fields of the corresponding API; list type; customizable
	group_by	Dimension fields of the corresponding API; list type; customizable

Because daily and hourly reports differ considerably, we recommend that you use the configuration template for the corresponding report directly, or fine-tune the template

2.5.1 Hourly report template

The hourly report is also the report we pull by default. You can use the following template directly:

{
  "sink_event": {
    "event_name": "csj_gromore_report"
  },
  "source": {
    "group_by": [
      "site_id",
      "adunittype",
      "adunit_id",
      "network",
      "code_id",
      "os",
      "sdk_version",
      "segment",
      "site_version",
      "channel"
    ],
    "report_types": [
      "hour"
    ],
    "metrics": [
      "req_cnt",
      "ret_cnt",
      "fill_rate",
      "clk_cnt",
      "clk_rate",
      "imp_cnt",
      "ssr",
      "ecpm",
      "revenue"
    ]
  }
}

• Included metrics

The following are the metrics supported by the hourly report. To change them, add the metric names to source.metrics:

Field	Description	Remarks	Default
api_ecpm	Estimated eCPM from the Reporting API	Available only when code_id is used for grouping
api_imp_cnt	Estimated impressions from the Reporting API
api_revenue	Estimated revenue from the Reporting API
waterfall_req_cnt	Traffic requests	Not returned when grouping by network and code_id
waterfall_send_cnt	Traffic responses
waterfall_sr	Traffic fill rate
req_cnt	Ad requests		Yes
ret_cnt	Ad responses		Yes
fill_rate	Ad fill rate		Yes
clk_cnt	Clicks		Yes
clk_rate	Click-through rate		Yes
imp_cnt	Impressions		Yes
ssr	Impression rate		Yes
ecpm	Estimated eCPM		Yes
revenue	Estimated revenue		Yes

• Analysis dimensions

The hourly report provides the following aggregation dimensions. To change them, add the dimension names to source.group_by:

Dimension	Field	Description	Default
site_id	site_id	App ID in Gromore mediation management	Yes
adunittype	adunittype	Type of the ad unit in mediation management	Yes
adunit_id	ad_unit_name	Ad placement name	Yes
	adunit_id	Ad unit ID	Yes
network	network	Ad network that the code slot belongs to	Yes
code_id	code_name	Code slot name	Yes
	code_id	Code slot ID	Yes
os	os	OS type	Yes
sdk_version	sdk_version	SDK version
segment	segemt_id	Traffic group ID
site_version	site_version	App version
channel	channel	Channel information
Required field	user_id	Media account ID	Yes
	role_id	Sub-account ID	Yes
	currency	Currency	Yes

• Ingestion rules

The start_date and end_date fields in the data, that is, the hour fields of data aggregation, are used as the #event_time of the aggregated data

The default event name is: csj_gromore_report

2.5.2 Daily report template

The daily report differs somewhat from the hourly report. You can use the following template, or customize the fields to pull by following this section:

{
    "sink_event":
    {
        "event_name": "csj_gromore_report"
    },
    "source":
    {
        "group_by":
        [
            "site_id",
            "ad_unit_type",
            "ad_unit_id",
            "network",
            "code_id"
        ],
        "report_types":
        [
            "day"
        ],
        "metrics":
        [
            "req_cnt",
            "ret_cnt",
            "fill_rate",
            "imp_cnt",
            "ssr",
            "clk_cnt",
            "clk_rate",
            "ecpm",
            "revenue",
            "api_ecpm",
            "api_revenue",
            "api_imp_cnt",
            "api_req_cnt",
            "api_ret_cnt",
            "api_clk_cnt",
            "api_ssr",
            "api_fill_rate",
            "api_show_gap_rate",
            "api_click_gap_rate"
        ]
    }
}

• Included metrics

The following are the metrics supported by the daily report. To change them, add the metric names to source.metrics:

Field	Description	Remarks	Default
waterfall_req_cnt	Traffic requests	Not returned when grouping by network and code_id
waterfall_send_cnt	Traffic responses
waterfall_sr	Traffic fill rate
req_cnt	Ad requests		Yes
ret_cnt	Ad responses		Yes
fill_rate	Ad fill rate		Yes
imp_cnt	Impressions		Yes
ssr	Impression rate		Yes
clk_cnt	Clicks		Yes
clk_rate	Click-through rate		Yes
ecpm	Estimated eCPM		Yes
revenue	Estimated revenue		Yes
api_ecpm	Estimated eCPM from the Reporting API	To query these metrics, you need to configure ad networks on the Gromore platform before data can be returned.	Yes
api_revenue	Estimated revenue from the Reporting API		Yes
api_imp_cnt	Estimated impressions from the Reporting API		Yes
api_req_cnt	Ad requests from the Reporting API		Yes
api_ret_cnt	Ad responses from the Reporting API		Yes
api_clk_cnt	Ad clicks from the Reporting API		Yes
api_ssr	Impression rate from the Reporting API		Yes
api_fill_rate	Fill rate from the Reporting API		Yes
api_show_gap_rate	Difference between impressions from the Reporting API and impressions counted by the ad platform. Formula: impression gap = (imp_cnt - api_imp_cnt) / api_imp_cnt		Yes
api_click_gap_rate	Difference between clicks from the Reporting API and clicks counted by the ad platform. Formula: click gap = (clk_cnt - api_clk_cnt) / api_clk_cnt		Yes

• Analysis dimensions

The daily report provides the following aggregation dimensions. To change them, add the dimension names to source.group_by:

Dimension	Field	Description	Default
site_id	site_id	App ID in Gromore mediation management	Yes
ad_unit_type	ad_unit_type	Type of the ad unit in mediation management	Yes
ad_unit_id	ad_unit_name	Ad placement name	Yes
	ad_unit_id	Ad unit ID	Yes
network	network	Ad network that the code slot belongs to	Yes
code_id	code_name	Code slot name	Yes
	code_id	Code slot ID	Yes
segment	segemt_id	Traffic group
sdk_version	sdk_version	SDK version
site_version	site_version	App version
channel	channel	Channel information
user_type	user_type	User type
Required field	os	OS type	Yes
	user_id	Media account ID	Yes
	role_id	Sub-account ID	Yes
	currency	Currency	Yes

• Ingestion rules

The date field in the data, that is, the daily field of data aggregation, is used as the #event_time of the aggregated data

The default event name is: csj_gromore_report

2.6 Standardized fields

Field	Standardized field	Description
currency	te_ads_object.currency	Currency
ad_unit_name	te_ads_object.ad_group_name	Ad placement name
ad_unit_id	te_ads_object.ad_group_id	Ad unit ID
adunit_id	te_ads_object.ad_group_id	Ad unit ID
network	te_ads_object.media_source	Ad network that the code slot belongs to
code_name	te_ads_object.ad_name	Code slot name
code_id	te_ads_object.ad_id	Code slot ID
os	te_ads_object.platform	OS type
user_id	te_ads_object.ad_account_id	Media account ID
imp_cnt	te_ads_object.impressions	Impressions
clk_cnt	te_ads_object.clicks	Clicks
revenue	te_ads_object.revenue	Estimated revenue
