Tenjin Reporting Metrics API

Last updated 10/03/2026

tip

Note that data generated by third-party data integration counts toward the cluster's data consumption

Summary

Interface overview

Interface	Type	Granularity	Attribution	Cost	Revenue	Impressions	Clicks	Conversions
Reporting Metrics API	API	Aggregated metrics		✅	✅	✅	✅	✅

Tenjin also provides an API for pulling aggregated metric data, the Reporting Metrics API, which provides:

• Cost data: can be regarded as advertiser data, including cost, click, impression, total revenue, and other data
• Revenue data: can be regarded as publisher data, including impressions and clicks of monetization ads and more detailed revenue data

Integration process

1. Log in to the Tenjin dashboard and get the Access Token
2. Log in to the AE backend, go to the Third-party Integration module, add Tenjin Reporting Metrics API, and complete the related configuration
3. Check whether the AE system receives the data successfully, and build reports

1. Get the Access Token

The first step in connecting Tenjin data is to log in to the Tenjin dashboard and click AUTOMATE -> API Access Tokens in the navigation bar.

Create an Access token on the page shown in the image below. Note that you can name the token when you create it, and you can describe it by what the token is used for. The name can be changed later without affecting its use.

After you create the Access token, you can copy it on this page at any time. You can also revoke access on this page. Copy the token.

2. Plan configuration

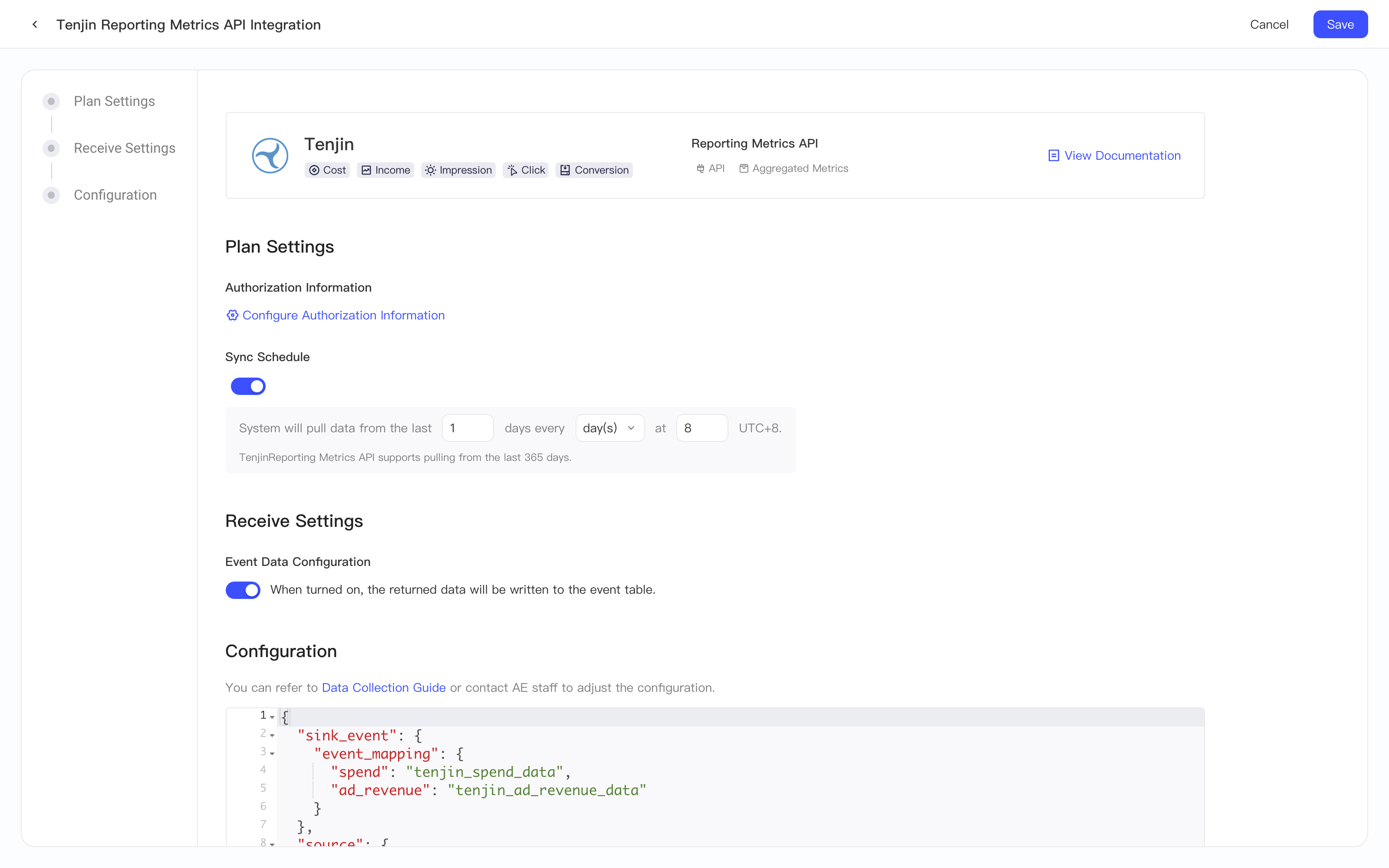

After you get the Tenjin Access Token, log in to the AE system and configure the new plan in the Third-party Integration module. The image below shows the configuration page of Tenjin Reporting Metrics API. Follow this section to create the plan

2.1 Authorization information configuration

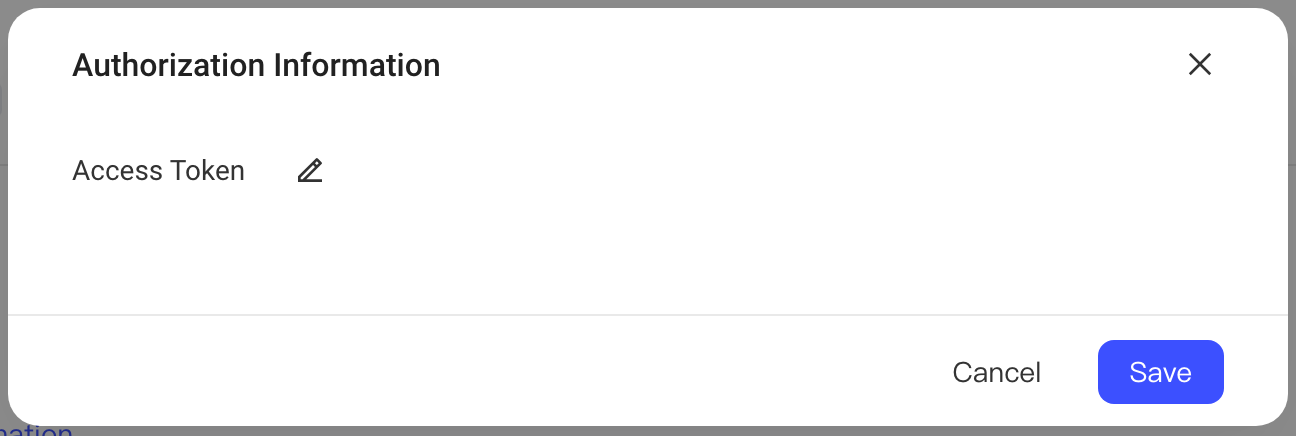

Click the Configure authorization information button under Authorization Information and enter the Access Token you obtained in the previous step in the pop-up:

2.2 Sync Schedule

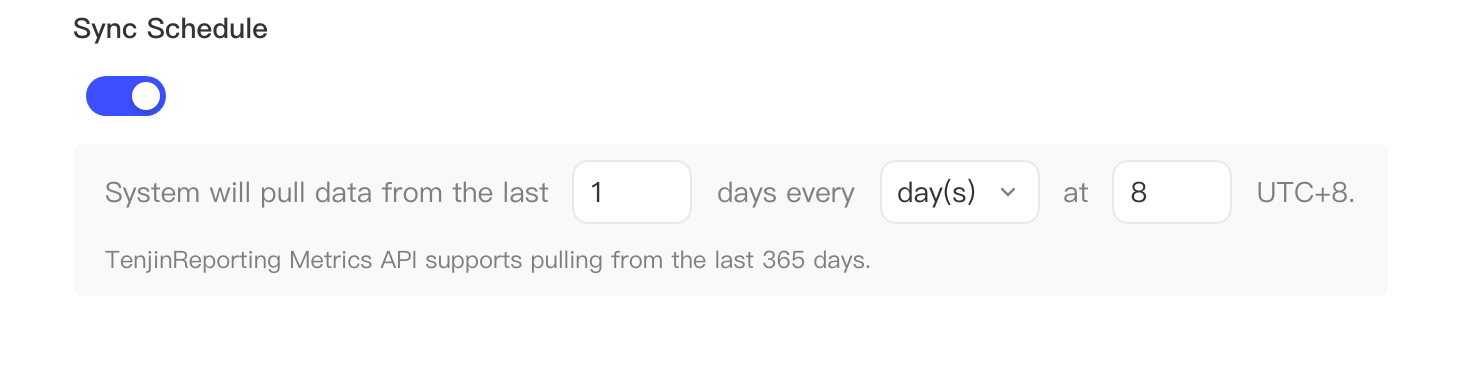

In the Sync Schedule module, you can set the policy for the AE system to pull Tenjin Reporting Metrics API data on a schedule. You can choose to pull data for a period of time at a specific time every day. Because pulled data also counts toward the data volume, avoid pulling data for overly long periods on a schedule

2.3 Receive Settings

You can control whether the data is written as events. If you turn this off, the data is not written to the event table, so do not turn off this setting.

2.4 Configuration

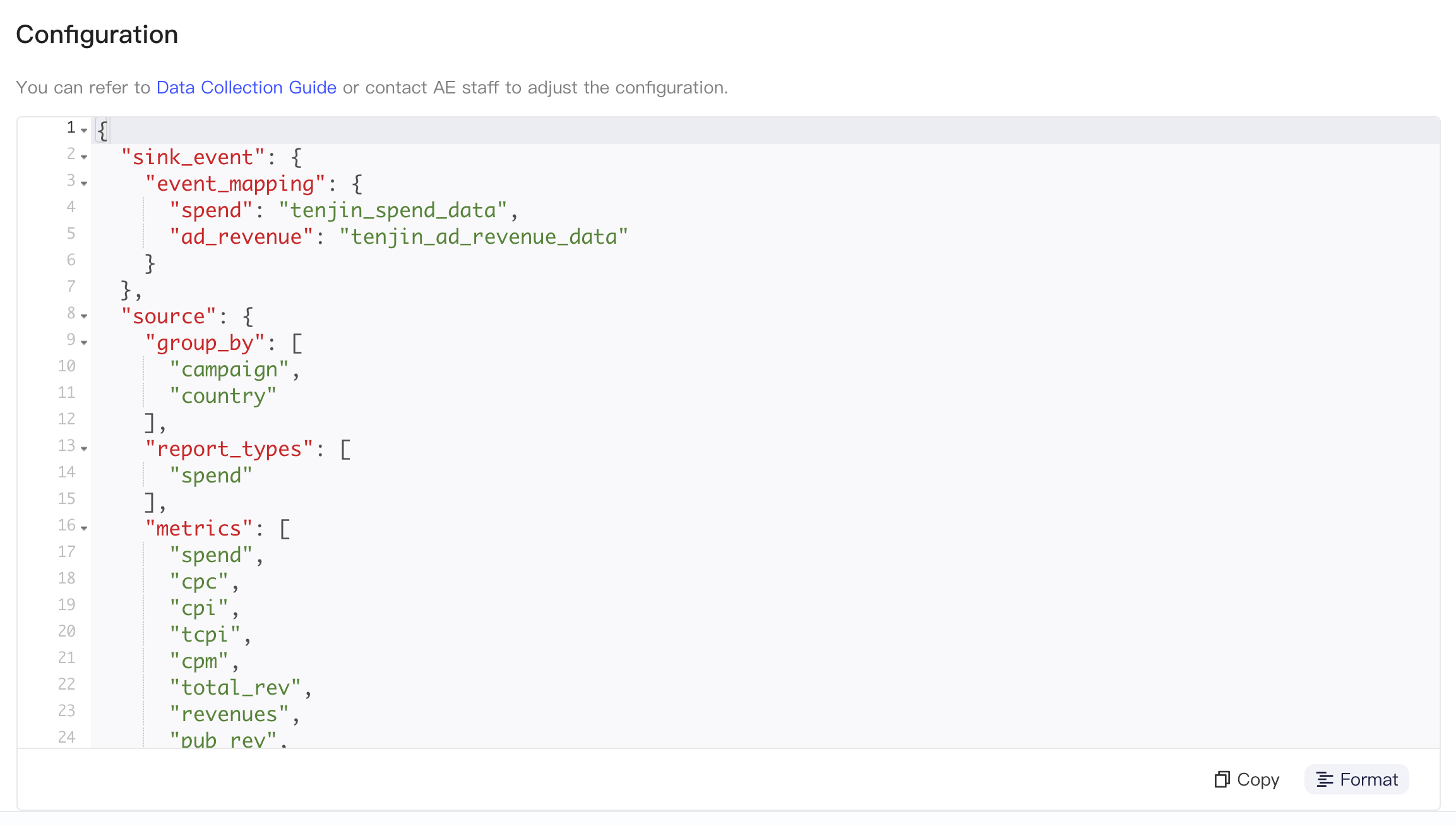

Finally, in the Configuration module, you can control the detailed settings of data pulling, including the time aggregation granularity of the data, the metric fields and dimensions to pull, and the event name after ingestion.

The content of the configuration is a JSON, which you can customize as follows:

Module	Name	Description
sink_event	event_mapping	Event name after ingestion; customizable; JSON type. The key corresponds to the report type, and the value is the ingestion event name for that report type.
source	report_types	Report type to pull. Tenjin Reporting Metrics API supports two report types. List type. We recommend that you enter only one element, that is, pull data for only one report at a time Allowed values: spend, ad_revenue. See the following content for details
	metrics	Metrics in the data; list type. Different report types support different metrics, so pay attention when filling it in
	group_by	Grouping dimensions in the data; list type. Different report types support different group_by values, so pay attention when filling it in

Because data configurations differ greatly between report types, we recommend that you use the configuration template for each level directly, or fine-tune the template

2.4.1 Spend template

The Spend template pulls the cost data of the API, that is, advertiser data. The following is the template for this interface, which you can copy in full into the integration configuration. To adjust it, refer to this subsection:

{
  "sink_event": {
    "event_mapping": {
      "spend": "tenjin_spend_data",
      "ad_revenue": "tenjin_ad_revenue_data"
    }
  },
  "source": {
    "group_by": [
      "campaign",
      "country"
    ],
    "report_types": [
      "spend"
    ],
    "metrics": [
      "spend",
      "cpc",
      "cpi",
      "tcpi",
      "cpm",
      "total_rev",
      "revenues",
      "pub_rev",
      "clicks",
      "tracked_clicks",
      "impressions",
      "installs",
      "tracked_installs",
      "ctr",
      "cvr",
      "users"
    ]
  }
}

• Analysis dimensions

Cost data provides the following analysis dimensions. By default, we use campaign, country as the analysis dimensions, and you can also choose other analysis dimensions as needed. To adjust, enter the analysis dimensions in source.group_by:

Analysis dimension	Included dimension fields	Default
app	app_id, bundle_id
channel	ad_network_name, ad_network_id, ad_network_icon_url
country	country
platform	platform
site	site_id
campaign	campaign_name, campaign_id, ad_network_name, ad_network_id, ad_network_icon_url, app_id, app_name, bundle_id, store_id, app_icon_url, channel, platform
campaign, country	campaign_name, campaign_id, ad_network_name, ad_network_id, ad_network_icon_url, app_id, app_name, bundle_id, store_id, app_icon_url, channel, platform, country	Yes
channel, app	ad_network_name, ad_network_id, ad_network_icon_url, app_id, bundle_id
channel, app, country	ad_network_name, ad_network_id, ad_network_icon_url, app_id, bundle_id, country

• Included metrics

Some key metrics have both a reported value and a tracked value. By default, we use the reported value. If you need to switch to tracked values, we recommend that you switch all of these metrics to tracked values to keep the data logically consistent. To adjust the connected metrics, write the API field names in source.metrics:

API field	Field name	Description	Default
spend	Total spend	Total spend ($)	Yes
cpc	CPC	Average CPC ($)	Yes
cpi	CPI	Cost per reported install ($)	Yes
tcpi	CPI of tracked installs	Cost per tracked install ($)	Yes
cpm	CPM	Average CPM ($)	Yes
cp_ksessions_Nd	Day N average cost per 1,000 Sessions	Average cost of 1,000 Sessions on day N ($) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
cp_user_Nd	Day N cost per retained user	Average cost of retained users on day N ($) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
roas_Nd	Day N ROAS	ROAS on day N (%) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
roi_Nd	Day N ROI	ROI on day N (%) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
total_rev	Total revenue	Total revenue ($)	Yes
total_arpu	Total ARPU	ARPU including in-app purchases and ads ($)
total_rev_Nd	Day N LTV	LTV on day N ($) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
rpu_Nd	Day N total revenue LTV / users	LTV on day N divided by DAU ($) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
revenues	IAP revenue	Revenue from in-app purchases ($)	Yes
iap_arpu	IAP ARPU	ARPU including only in-app purchases ($)
revenues_Nd	Day N IAP revenue LTV	LTV of in-app purchase revenue on day N ($) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
iap_rpu_Nd	Day N IAP revenue LTV / User	LTV calculated from IAP only on day N, divided by DAU ($) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
pub_rev	Ad revenue	Total ad revenue ($)	Yes
pub_arpu	Ad revenue ARPU	ARPU including only ad revenue ($)
pubrev_Nd	Day N ad revenue LTV	LTV of ad revenue on day N ($) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
pub_rpu_Nd	Day N ad revenue LTV / users	LTV of ad revenue on day N divided by DAU ($) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
fraud_purchases	Fraudulent purchases	Number of fraudulent purchases
fraud_revenue	Fraudulent revenue	Revenue from blocked fraudulent purchases ($)
clicks	Reported clicks	Total number of reported clicks	Yes
clicks_difference	Click difference	Difference between reported clicks and tracked clicks
clicks_difference_pct	Click difference percentage	Percentage difference between reported clicks and tracked clicks (%)
tracked_clicks	Tracked clicks	Number of tracked clicks	Yes
blocked_clicks	Blocked clicks	Number of blocked clicks
impressions	Reported impressions	Number of reported impressions	Yes
tracked_impressions	Tracked impressions	Number of tracked impressions
installs	Reported installs	Number of reported installs	Yes
installs_difference	Install difference	Difference between reported installs and tracked installs
installs_difference_pct	Install difference percentage	Percentage difference between reported installs and tracked installs (%)
tracked_installs	Tracked installs	Number of tracked installs	Yes
ctr	CTR	Average CTR (%)	Yes
cvr	CVR	Average CVR (%)	Yes
all_fraud	Fraudulent events	Total number of fraudulent events
blocked_device_events	Blocked device events	Number of blocked device events
cpr	Completion Rate (CPR)	Average CPR Percentage (%)
sessions	Sessions	Average number of Sessions
sessions_Nd	Day N Sessions	Number of Sessions on day N Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
users	DAU	Average DAU	Yes
retention_Nd	Day N retention rate	Retention rate on day N (%) Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
users_Nd	Day N retained users	Number of retained users on day N Range of N: 0, 1, 2, 3, 4, 5, 6, 7, 14, 30, 60, 90, 120
tracked_cvr	Tracked conversion rate	Tracked conversion rate (%)

• Ingestion rules

The day field in the data, that is, the date of the data, is set as the #event_time of the aggregated data

The event name used in the template is -- tenjin_spend_data

2.4.2 Ad Revenue template

The Ad Revenue template pulls the revenue data of the API, that is, publisher data. The following is the template for this interface, which you can copy in full into the integration configuration. To adjust it, refer to this subsection:

{
  "sink_event": {
    "event_mapping": {
      "spend": "tenjin_spend_data",
      "ad_revenue": "tenjin_ad_revenue_data"
    }
  },
  "source": {
    "group_by": [
      "channel",
      "app",
      "country"
    ],
    "report_types": [
      "ad_revenue"
    ],
    "metrics": [
      "ad_revenue",
      "clicks",
      "ecpc",
      "ecpm",
      "impressions"
    ]
  }
}

• Analysis dimensions

Revenue data provides the following analysis dimensions. By default, we use channel, app, country as the analysis dimensions, and you can also choose other analysis dimensions as needed. To adjust, enter the analysis dimensions in source.group_by:

Analysis dimension	Default
app
channel
country
channel, app
channel, app, country	Yes
ad_placement

• Included metrics

Some key metrics have both a reported value and a tracked value. By default, we use the reported value. If you need to switch to tracked values, we recommend that you switch all of these metrics to tracked values to keep the data logically consistent. To adjust the connected metrics, write the API field names in source.metrics:

API field	Default	Description
ad_revenue	Yes	Total revenue
clicks	Yes	Total clicks
ecpc	Yes	eCPC (revenue per click)
ecpm	Yes	eCPM (revenue per 1,000 impressions)
impressions	Yes	Total impressions

• Ingestion rules

The day field in the data, that is, the date of the data, is set as the #event_time of the aggregated data

The event name used in the template is -- tenjin_ad_revenue_data

2.5 Standardized fields

If the following event properties exist in the data, we standardize them automatically:

Original field	Standardized field	Description
campaign_name	te_ads_object.campaign_name	Campaign name
campaign_id	te_ads_object.campaign_id	Campaign ID
ad_network_name	te_ads_object.media_source	Media source or monetization channel
store_id	te_ads_object.app_id	App ID
app_name	te_ads_object.app_name	App name
platform	te_ads_object.platform	Platform, such as Android or iOS
country	te_ads_object.country	Country or region code
【USD】	te_ads_object.currency	Currency of the cost or revenue
impressions	te_ads_object.impressions	Impressions
clicks	te_ads_object.clicks	Clicks
installs	te_ads_object.installs	Conversions (installs)
spend	te_ads_object.cost	User acquisition cost
ad_revenue	te_ads_object.revenue	Monetization revenue
