Moloco Report API

Last updated 10/03/2026

tip

Note that data generated by third-party data integration counts toward the cluster's data consumption

Summary

Interface overview

Interface	Type	Granularity	Attribution	Cost	Revenue	Impressions	Clicks	Conversions
Report API	API	Aggregated metrics		✅	✅	✅	✅	✅

Report API is an aggregated data API. It returns metric data for a period of time, including cost, revenue, impression, click, and conversion data

Integration process

1. Log in to your Moloco account and create an API Key
2. Log in to the AE backend, go to the Third-party Integration module, add a Moloco Report API plan, and complete the related configuration
3. Check whether the AE system receives the data successfully, and build reports

1. Get information from the Moloco backend

1.1 Get the API Key

Before calling the API, you need to get an API Key. Log in to your Moloco account and find the API Access section in the user settings menu in the upper-right corner.

Next, click Create API Key to create a new Moloco API Key. If you have created an API Key before, you can also use the existing one. Make sure to keep the value of the API Key.

1.2 Get the ad account ID

Next, get the IDs of all the ad accounts you want to pull data from. You can get the ad account ID as shown in the image below. Because you can configure multiple ad accounts, we recommend getting the IDs of all the ad accounts you want to pull data from

2. Plan configuration

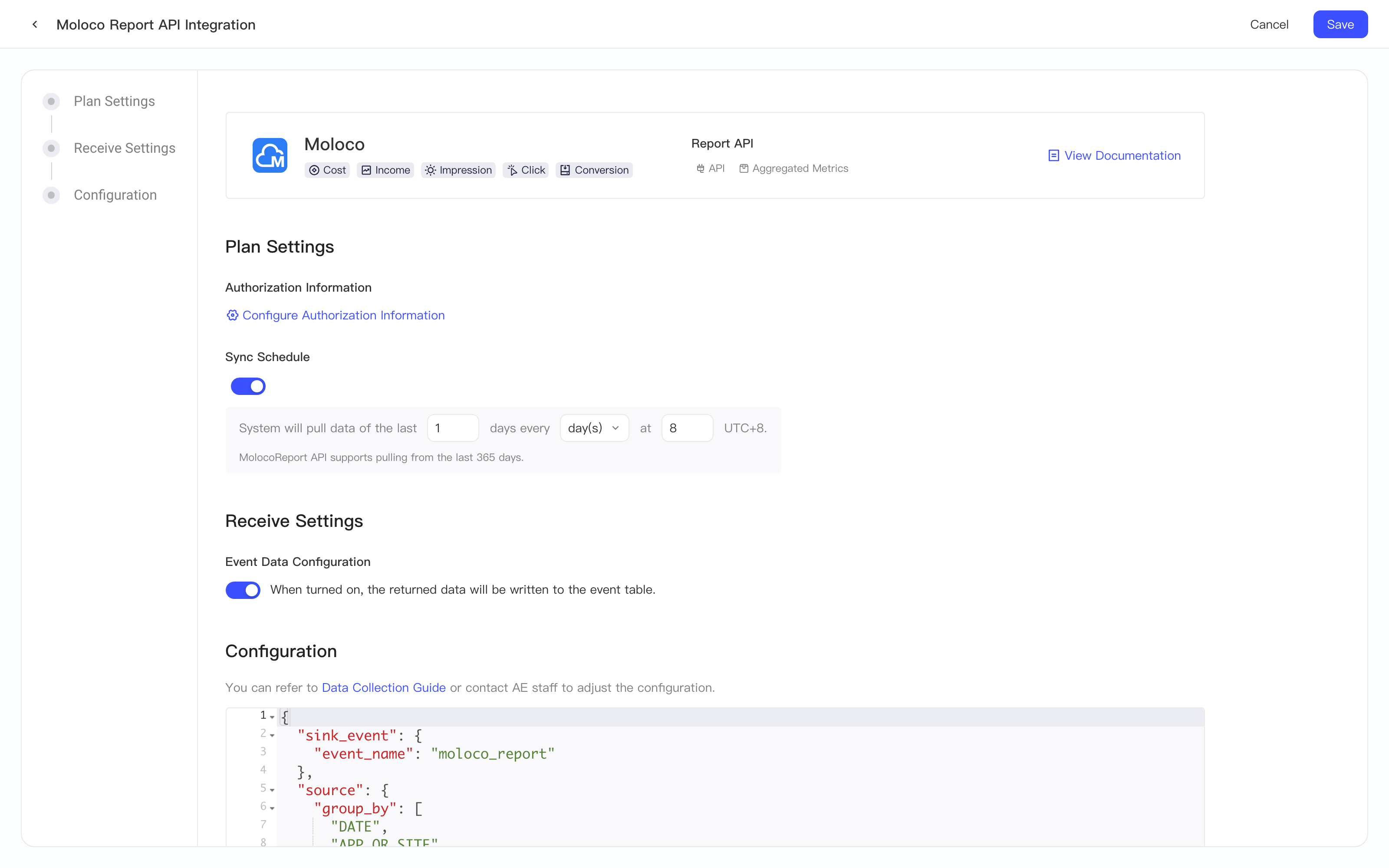

After you get the Moloco authorization information, you can log in to the AE system backend and configure Moloco Report API in the Third-party Integration module. The image below shows the Moloco configuration page:

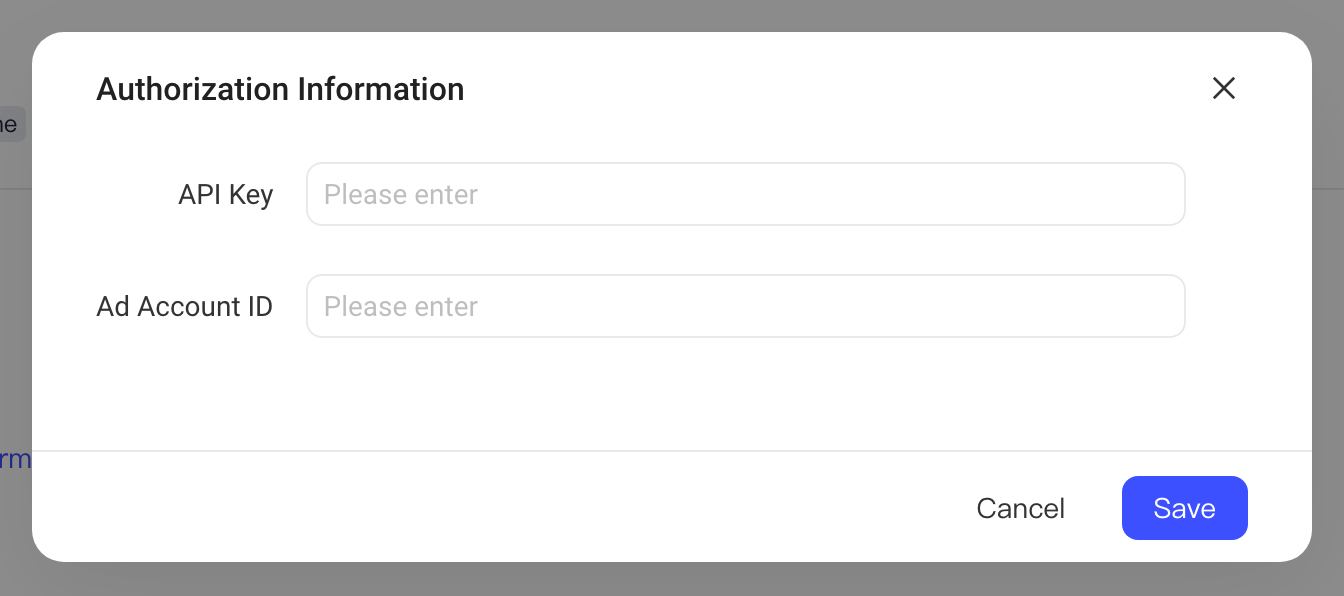

2.1 Authorization information configuration

Click the Configure authorization information button under Authorization Information and enter the information you got from the Moloco backend in the pop-up

• API Key: enter the API Key you created in Moloco
• Ad Account ID: the IDs of the ad accounts you want to pull data from. Separate multiple IDs with ","

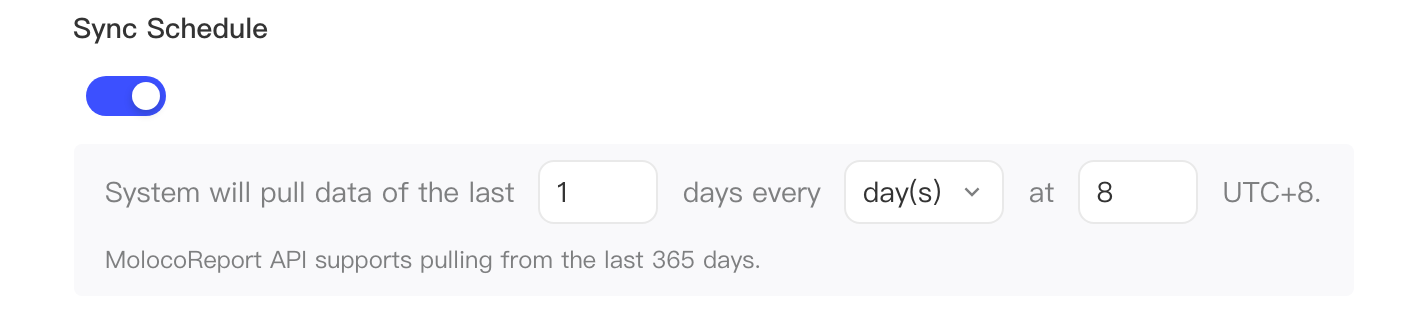

2.2 Sync Schedule

In the Sync Schedule module, you can set the policy for the AE system to pull Moloco Report API data on a schedule. You can choose to pull data for a period of time at a specific time every day or every hour. Because pulled data also counts toward the data volume, avoid pulling data for overly long periods on a schedule

2.3 Event Data Configuration

After you turn on the Event Data Configuration switch, all data sent back is written to the event table. We recommend that you enable event data ingestion.

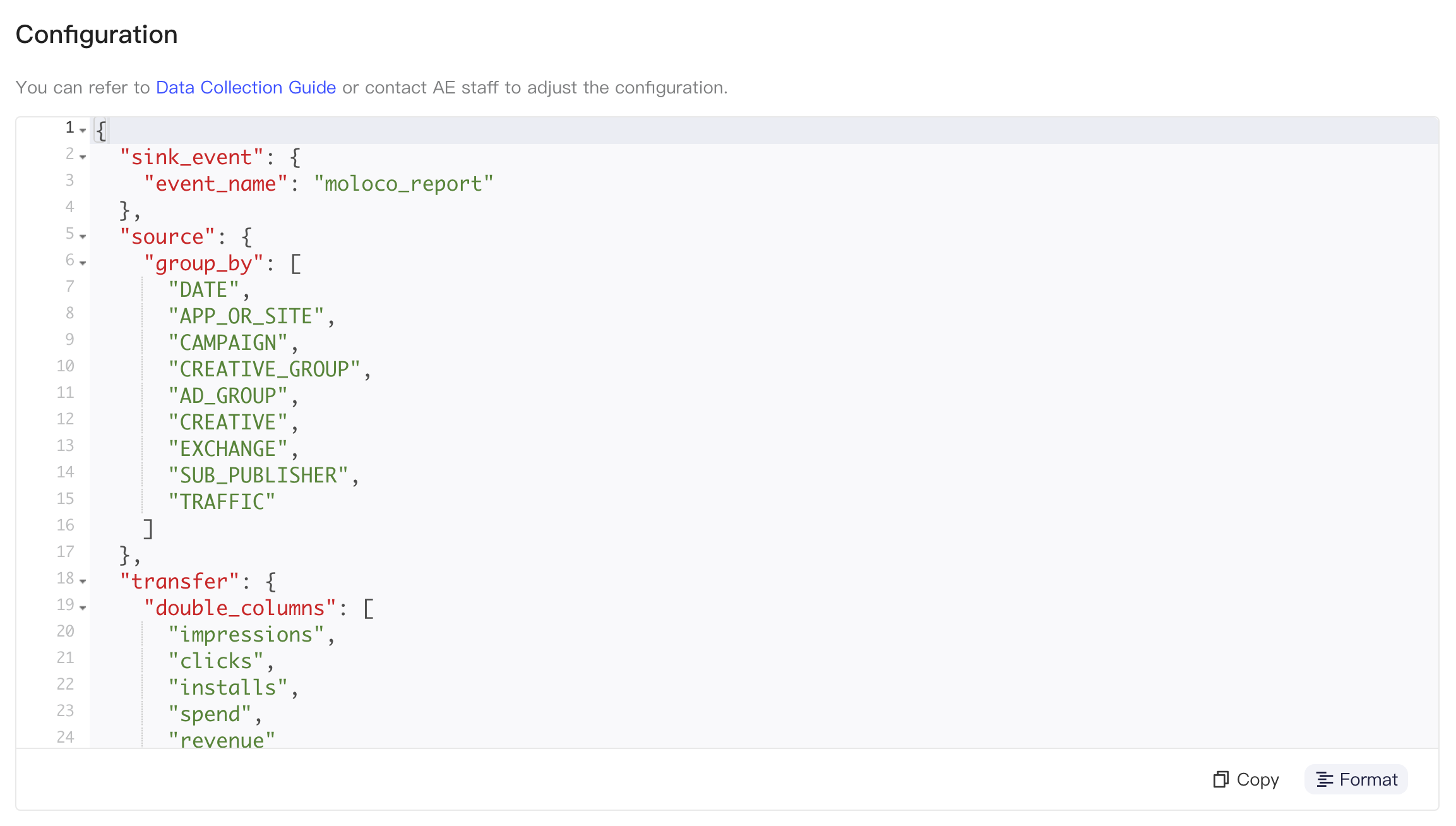

2.4 Configuration

In the Configuration module, you can control the details of data pulling, such as the event name after ingestion and the dimensions of the pulled data.

The content of the configuration is a JSON, which you can customize as follows:

Module	Name	Description
sink_event	event_name	Event name after ingestion; customizable
source	group_by	Grouping dimensions in the data; list type
transfer	double_columns	Ingested metric fields. Do not modify

• Grouping dimensions

The following are the supported grouping dimensions. By default, we get data for all dimensions. Each dimension corresponds to multiple ingestion fields, as shown in the table below. To make changes, modify source.group_by and enter the names of the grouping dimensions you want to pull

Dimension	Ingested field name	Default	Description
Included by default	ad_account_currency	Yes	Currency used by the ad account
	ad_account_id	Yes	Ad account ID
	ad_account_title	Yes	Ad account name
DATE	date	Yes	Date
APP_OR_SITE	app_id	Yes	Unique app ID
	app_os	Yes	Platform of the app
	app_store_id	Yes	App store ID
	app_title	Yes	App name
	site_domain	Yes	Site domain
	site_id	Yes	Site ID
	site_title	Yes	Site name
CAMPAIGN	campaign_country	Yes	Country or region of the campaign
	campaign_id	Yes	Campaign ID
	campaign_title	Yes	Campaign name
AD_GROUP	ad_group_id	Yes	Ad group ID
	ad_group_title	Yes	Ad group name
CREATIVE_GROUP	creative_group_id	Yes	Creative group ID
	creative_group_title	Yes	Creative group name
CREATIVE	creative_id	Yes	Asset ID
	creative_main_asset_location	Yes	Creative asset URL
	creative_title	Yes	Creative name
	creative_type	Yes	Creative type
EXCHANGE	exchange_id	Yes	Unique exchange ID
SUB_PUBLISHER	sub_publisher_id	Yes	Sub Publisher ID
	sub_publisher_title	Yes	Sub Publisher name
TRAFFIC	traffic_is_lat	Yes	Whether LAT is enabled (Boolean)
	traffic_mmp_effective	Yes	Whether it can be attributed
	traffic_skan_bid	Yes	Whether it includes a SKAN response

• Metric fields

The following are the supported metric fields:

Field	Description
impressions	Impressions
clicks	Clicks
installs	Installs
spend	User acquisition cost
revenue	Monetization revenue

2.5 Ingestion rules

• The date field in the data, that is, the date of the data, is set as the #event_time of the aggregated data
• The default event name for Report API data is: moloco_report
• All other fields are stored

2.6 Standardized fields

The following event properties are standardized:

Original field	Standardized field	Description
ad_account_id	te_ads_object.ad_account_id	Ad account ID
campaign_title	te_ads_object.campaign_name	Campaign name
campaign_id	te_ads_object.campaign_id	Campaign ID
ad_group_title	te_ads_object.ad_group_name	Ad group name, or the Unit name for monetization ads
ad_group_id	te_ads_object.ad_group_id	Ad group ID, or the Unit ID for monetization ads
creative_group_title	te_ads_object.ad_name	Ad name
creative_group_id	te_ads_object.ad_id	Ad ID
app_store_id	te_ads_object.app_id	App ID
app_title	te_ads_object.app_name	App name
app_os	te_ads_object.platform	Platform, such as Android or iOS
campaign_country	te_ads_object.country	Country or region code
ad_account_currency	te_ads_object.currency	Currency of the cost or revenue
impressions	te_ads_object.impressions	Impressions
clicks	te_ads_object.clicks	Clicks
installs	te_ads_object.installs	Conversions (installs)
spend	te_ads_object.cost	User acquisition cost
revenue	te_ads_object.revenue	Monetization revenue
