ironSource Impression Level Revenue API

Last updated 10/03/2026

tip

Note that data generated by third-party data integration counts toward the cluster's data consumption

Summary

Interface overview

Interface	Type	Granularity	Attribution	Cost	Revenue	Impressions	Clicks	Conversions
Impression Level Revenue API	API	User data			✅	✅

Impression Level Revenue API provides user-level ad impression data. You can use this data to analyze each user's revenue and the ad impressions of different users.

Integration process

1. Set the AE SDK user identification field in the ironSource SDK
2. Log in to the ironSource dashboard and get the App Key, Secret Key, and Refresh Token
3. Log in to the AE backend, go to the Third-party Integration module, add an ironSource Impression Level Revenue API plan, and complete the related configuration
4. Check whether the AE system receives the data successfully, and build reports

1. Client SDK configuration

To associate ironSource user data with the AE project, use the setUserId() method of ironSource to set the AE distinct ID as the ironSource UserId:

1.1 Option 1 (automatic integration)

• If you integrate the Android or iOS SDK:

  • If the SDK version is 2.8.0~2.8.1, you can use this option directly
  • If the SDK version is 2.8.2 or later, you also need to install the third-party data plugin. For details, see Android SDK third-party data and iOS SDK third-party data

• If you integrate Unity SDK 2.4.0 or later, or Unreal SDK 1.5.0 or later, you can use this option directly

tip

Note that the AE SDK must be initialized before the ironSource SDK, and the automatic integration code must be enabled immediately after the ironSource SDK is initialized. Follow these steps:

1. Initialize the AE SDK.

2. Initialize the ironSource SDK

3. Call `enableThirdPartySharing` to set the distinct ID automatically.

The following are code samples for the SDK on each platform:

Android

// 1. Initialize the Android SDK
TDConfig config = TDConfig.getInstance(this, APPID, TE_SERVER_URL);
TDAnalytics.init(config);
// 2. Initialize the ironSource SDK
//  ...
// 3. Call the enableThirdPartySharing API to set ta_distinct_id in ironSource events
TDAnalytics.enableThirdPartySharing(TDThirdPartyType.IRON_SOURCE);

iOS

// 1. Initialize the iOS SDK
TDConfig *config = [[TDConfig alloc] init];
config.appid = appid;
config.serverUrl = url;
config.mode = TDModeDebug;
[TDAnalytics startAnalyticsWithConfig:config];
// 2. Initialize the ironSource SDK
//  ...
// 3. Call the enableThirdPartySharing API to set ta_distinct_id in ironSource events
[TDAnalytics enableThirdPartySharing:TDThirdPartyTypeIronSource];

Unity

// 1. Initialize the Unity SDK
TDConfig config = new TDConfig("APPID","SERVER");
TDAnalytics.Init(config);
// 2. Initialize the ironSource SDK
//  ...
//3. Call the enableThirdPartySharing API to set ta_distinct_id in ironSource events
TDAnalytics.EnableThirdPartySharing(TDThirdPartyType.IRONSOURCE);

Unreal

// 1. Initialize the Unreal SDK
UTDAnalytics::Initialize();
// 2. Initialize the ironSource SDK
//  ...
// 3. Call enableThirdPartySharing to set ta_distinct_id in ironSource events
TArray<FString> EventTypeList;
EventTypeList.Emplace(TEXT("TAThirdPartyShareTypeIRONSOURCE"));
UTDAnalytics::EnableThirdPartySharing(EventTypeList, AppID);

1.2 Option 2 (manual integration)

For manual integration, you need to use the setUserId() API in the ironSource SDK to set the distinct ID of the AE project.

tip

Note that the AE SDK must be initialized before the ironSource SDK, and setUserId must be called after the ironSource SDK is initialized. Follow these steps:

1. Initialize the AE SDK.

2. Initialize the ironSource SDK.

3. Call `setUserId` to set the distinct ID.

The following are manual integration code samples for the SDK on each platform:

Android

// 1. Initialize the Android SDK
TDConfig config = TDConfig.getInstance(this, APPID, TE_SERVER_URL);
TDAnalytics.init(config);
// 2. Initialize the ironSource SDK
//  ...
// 3. Get the AE distinct ID, which corresponds to #distinct_id in AE
String distinctId = TDAnalytics.getDistinctId();
// 4. Set the AE distinct ID as the ironSource User ID
IronSource.setUserId(distinctId);

iOS

// 1. Initialize the iOS SDK
TDConfig *config = [[TDConfig alloc] init];
config.appid = appid;
config.serverUrl = url;
config.mode = TDModeDebug;
[TDAnalytics startAnalyticsWithConfig:config];
// 2. Initialize the ironSource SDK
//  ...

// 3. Get the AE distinct ID, which corresponds to #distinct_id in AE
NSString *distinctId = [TDAnalytics getDistinctId];
// 4. Set the distinct ID in the events collected by ironSource
[IronSource setUserId:distinctId];

Unity

// 1. Initialize the Unity SDK
TDConfig config = new TDConfig("APPID","SERVER");
TDAnalytics.Init(config);

// 2. Initialize the ironSource SDK
//  ...
// 3. Get the AE distinct ID, which corresponds to #distinct_id in AE
var distinctId = TDAnalytics.GetDistinctId();
// 4. Set the distinct ID in the events collected by ironSource
IronSource.Agent.setUserId(distinctId);

2. Get the authorization information

Next, log in to the ironSource dashboard to get the necessary authorization information

1. First, click the user menu in the upper-right corner, go to the Reporting API tab of the My Account page, and get the Secret Key and Refresh Token

1. Next, go to the Ad Unit page of the ironSource dashboard and select the app you want to connect in the APPLICATIONS list. The card on the right shows the app's App Key. Note it down (iOS and Android are separate. To connect data from both platforms, configure two plans and enter the respective App Keys)

3. Plan configuration

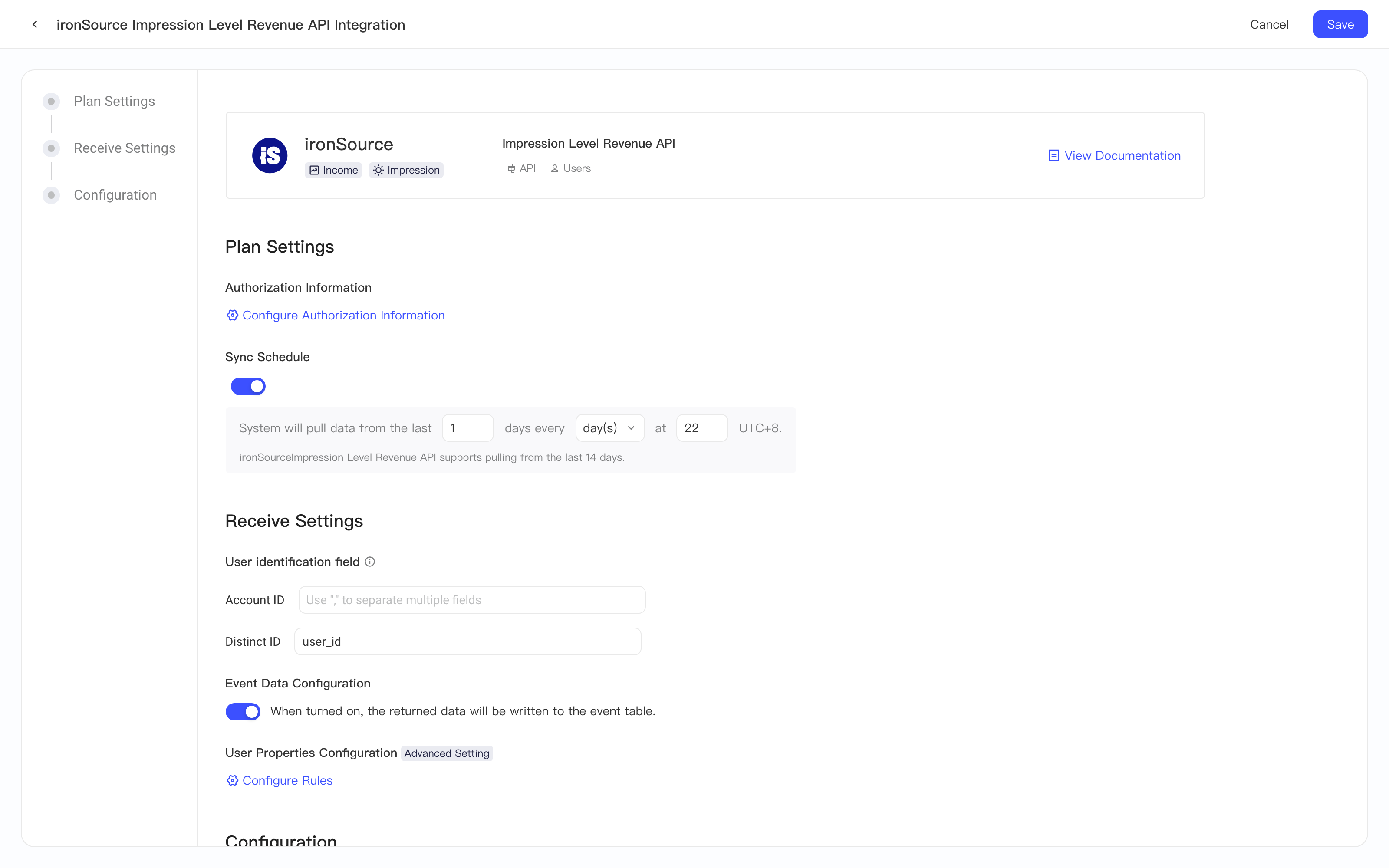

After completing the SDK configuration, log in to the AE system backend and configure ironSource Impression Level Revenue API in the Third-party Integration module. The image below shows the ironSource configuration page:

3.1 Authorization information configuration

Click the Configure authorization information button under Authorization Information, and enter the information you got during authorization in the pop-up (for Refresh Token, click the edit icon first to show the input box)

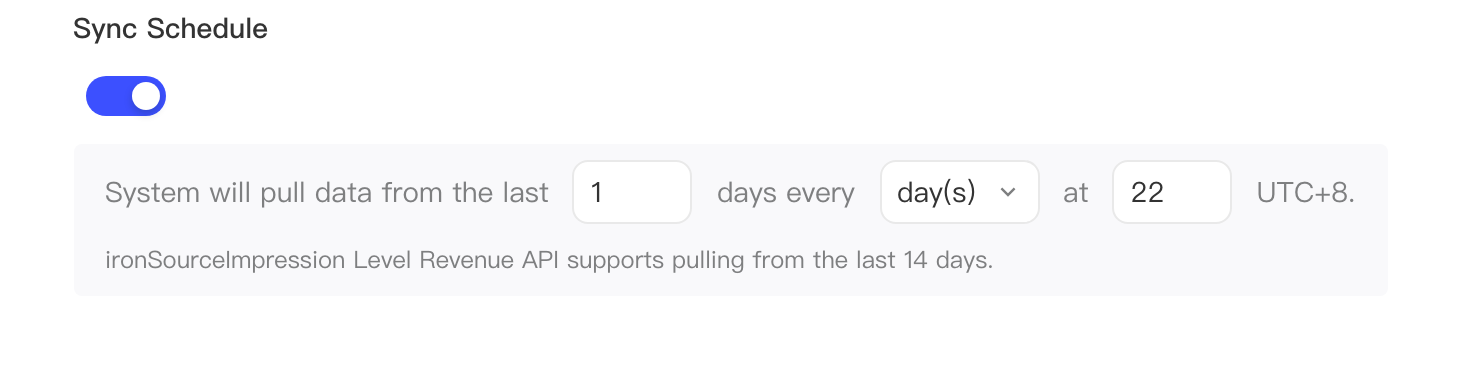

3.2 Sync Schedule

In the Sync Schedule module, you can set the policy for the AE system to pull ironSource Impression Level Revenue API data on a schedule. You can choose to pull data for a period of time at a specific time every day or every hour. Because pulled data also counts toward the data volume, avoid pulling data for overly long periods on a schedule

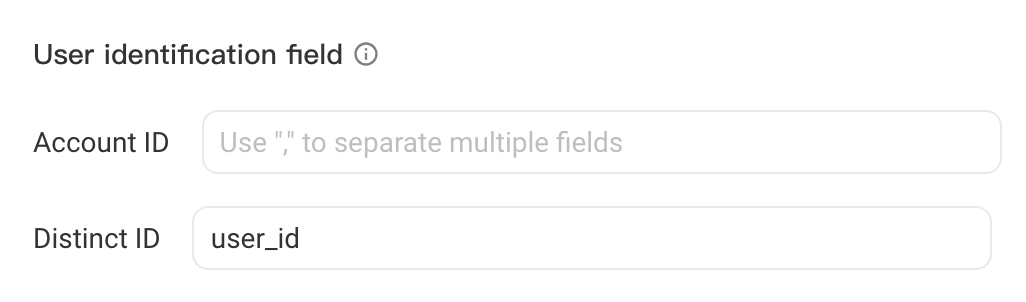

3.3 User identification fields

Because ironSource Impression Level Revenue API provides user-level data, you need to set user identification rules for it. Based on this configuration, the AE system sets these fields as the user identification fields of the data when it converts the pulled data.

If you configured the client SDK according to this document, use the following configuration:

• Field associated with the account ID: none
• Field associated with the distinct ID: user_id

3.4 Event Data Configuration

After you turn on the Event Data Configuration switch, all data sent back is written to the event table. We recommend that you enable event data ingestion.

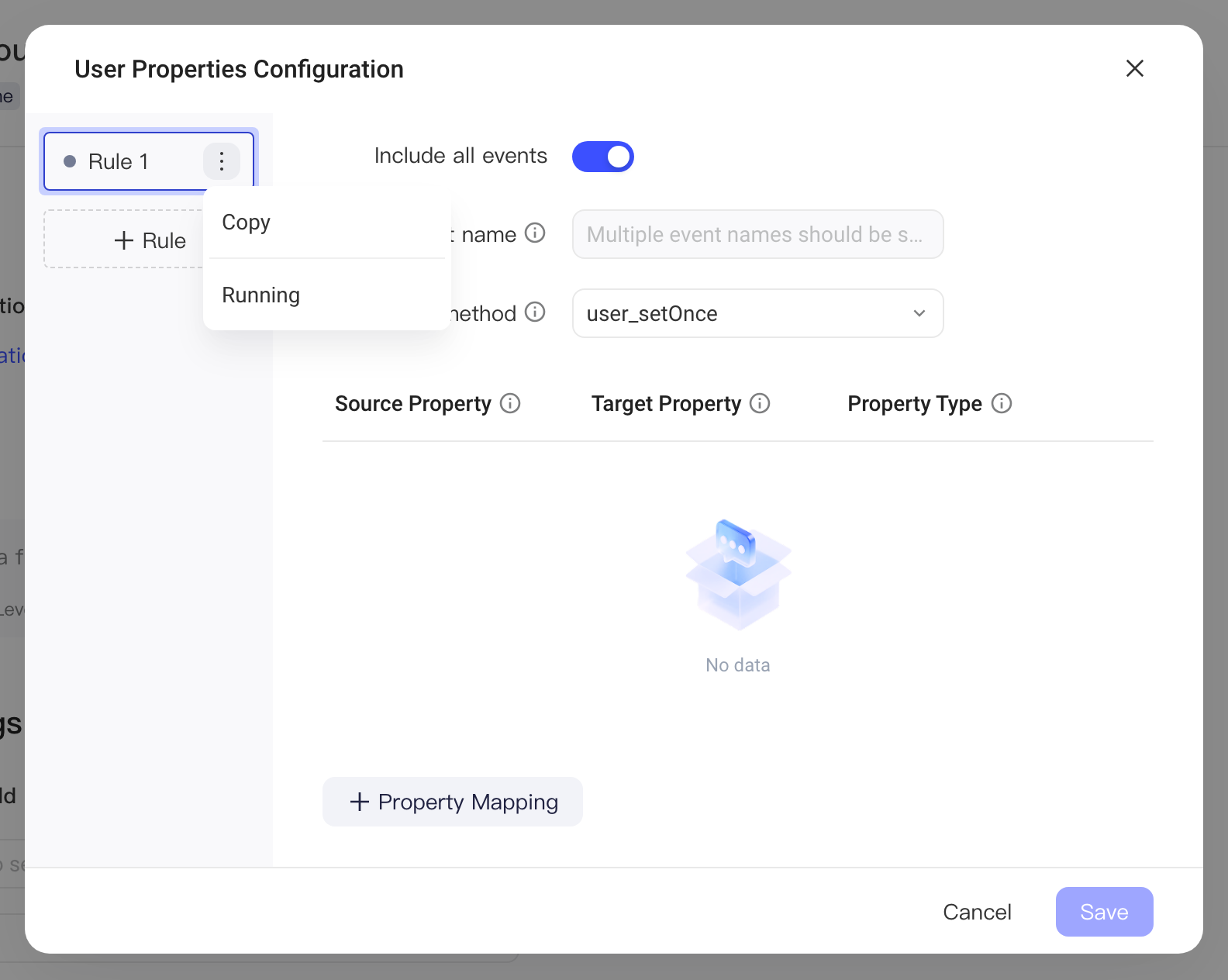

3.5 User Properties Configuration

By default, the AE system doesn't write ironSource Impression Level Revenue API data to user properties. If you want to write some fields to the user table, first turn on the rule so that it runs, and then use the Property Mapping feature to add the fields to write to the user table. For Source Property, enter the ingested name of the field:

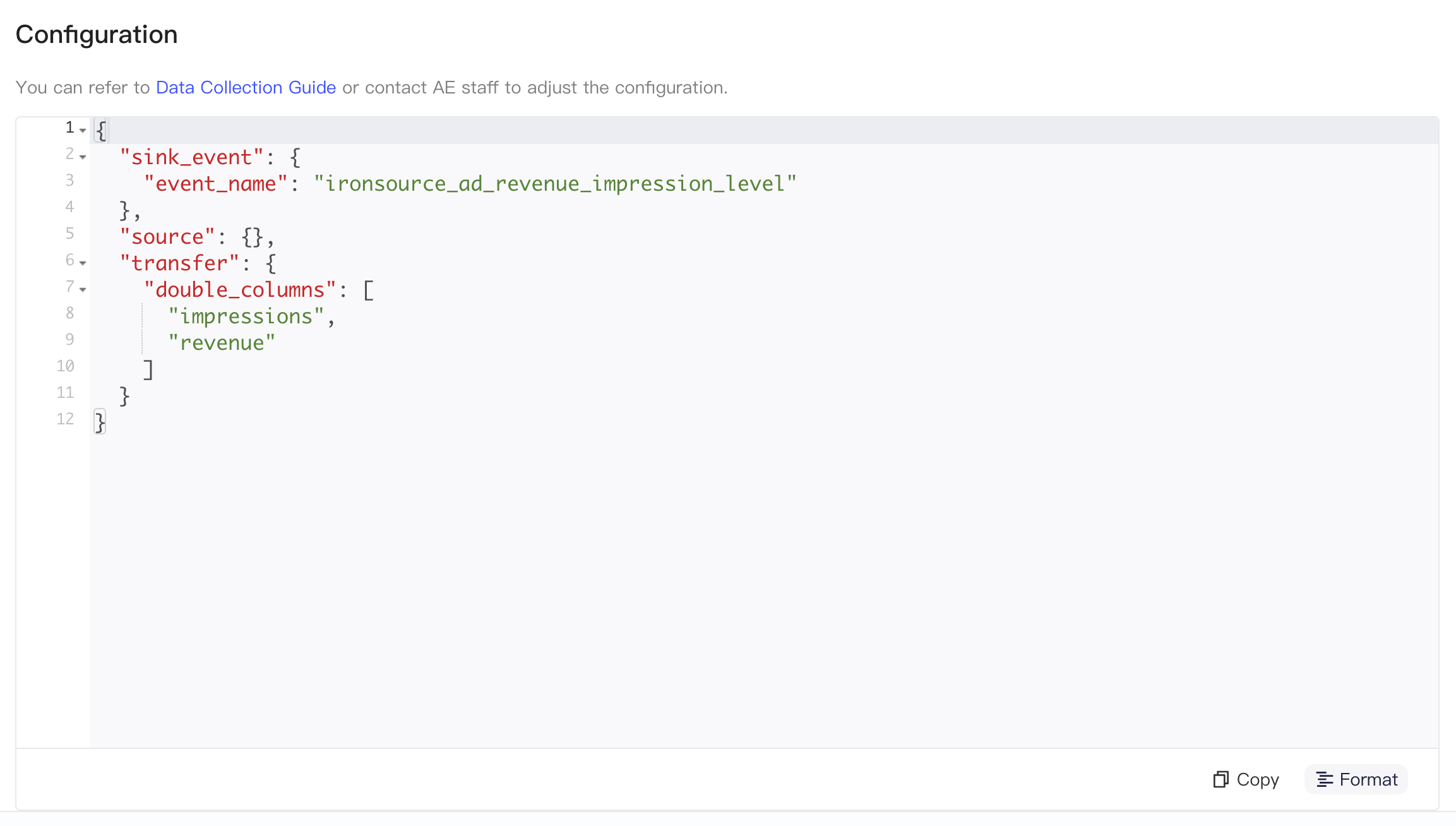

3.6 Configuration

In the Configuration module, you can control the detailed settings of data pulling, such as the event name after ingestion.

The configuration is a JSON, and you can adjust its content as needed

Module	Name	Description
sink_event	event_name	Event name after ingestion; customizable
transfer	double_columns	Metric fields to convert to numeric type. All other ingested fields are ingested as strings. We don't recommend changing this

3.7 Data ingestion rules

• user_id in the data is used as the distinct ID of the data. This field should correspond to the distinct ID in the AE project
• The event_timestamp field in the data, that is, the ad impression time, is used as the event's #event_time
• The event name is ironsource_ad_revenue_impression_level
• All other fields are ingested. The following are the fields returned by the Impression Level Revenue API:
• Dimension fields

Field name	Description	Example value
event_timestamp	Impression timestamp	2021-09-01 11:26:46
#zone_offset	Time zone (AE preset property)	0 (fixed value)
advertising_id	User's advertising ID (GAID / IDFA)	137cf2f0-609c-4ae3-ab64-ed5c0d7392fd
advertising_vendor_id	User's vendor ID (app Set ID / IDFV)	A0810F0B-16C2-474B-B765-77B3A3113AA2
user_id	User ID set by the user, that is, the user ID set in "1. Client SDK configuration"	c7d9fed7-aa40-4bfa-918f-8d4b155bfd4b
ad_unit	Ad unit	rewarded_video
ad_network	Ad network	Admob
instance_name	Instance name	Bidding, High
country	Country (region) code	US
placement	Placement	Home_Screen
segment	Name of the traffic segment the user is assigned to	Tier 1
AB_Testing	A/B Test label	A,B
app_key	App key
app_name	App name
platform	Platform	iOS, android

• Metric fields

Field name	Description	Example value
revenue	Revenue amount	0.5

3.8 Standardized fields

The following event properties are standardized:

Original field	Standardized field	Description
ad_network	te_ads_object.media_source	Monetization channel
ad_unit	te_ads_object.ad_group_name	Unit name of the monetization ad
placement	te_ads_object.placement	Monetization ad placement
app_name	te_ads_object.app_name	App name
country	te_ads_object.country	Country or region code
platform	te_ads_object.platform	Platform, such as Android or iOS
Fixed value USD	te_ads_object.currency	Currency of the monetization revenue
revenue	te_ads_object.revenue	Monetization revenue
