AppsFlyer Master API

Last updated 10/05/2026

tip

Note that data generated by third-party data integration counts toward the cluster's data consumption

Summary

Interface overview

Interface	Type	Granularity	Attribution	Cost	Revenue	Impressions	Clicks	Conversions
Master API	API	Aggregated metrics		✅	✅	✅	✅

Master API supports custom analysis dimensions and aggregated metrics, and is more flexible than the Pull API aggregated metrics API.

Integration process

1. Log in to the AppsFlyer dashboard and get the V2.0 API Token and App ID
2. Log in to the AE backend, go to the Third-party Integration module, add an AppsFlyer Master API plan, and complete the related configuration
3. Check whether the AE system receives the data successfully, and build reports

1. Get the API Token and App ID

1.1 Get the API Token

1.1 Get the API Token

Get the V2.0 API token for Master API

1.2 Get the App ID

You can find your app's App ID under My Apps in the AppsFlyer dashboard. On Android, it starts with com., such as com.demoapp.ta; on iOS, it starts with id, such as id12345678

2. Plan configuration

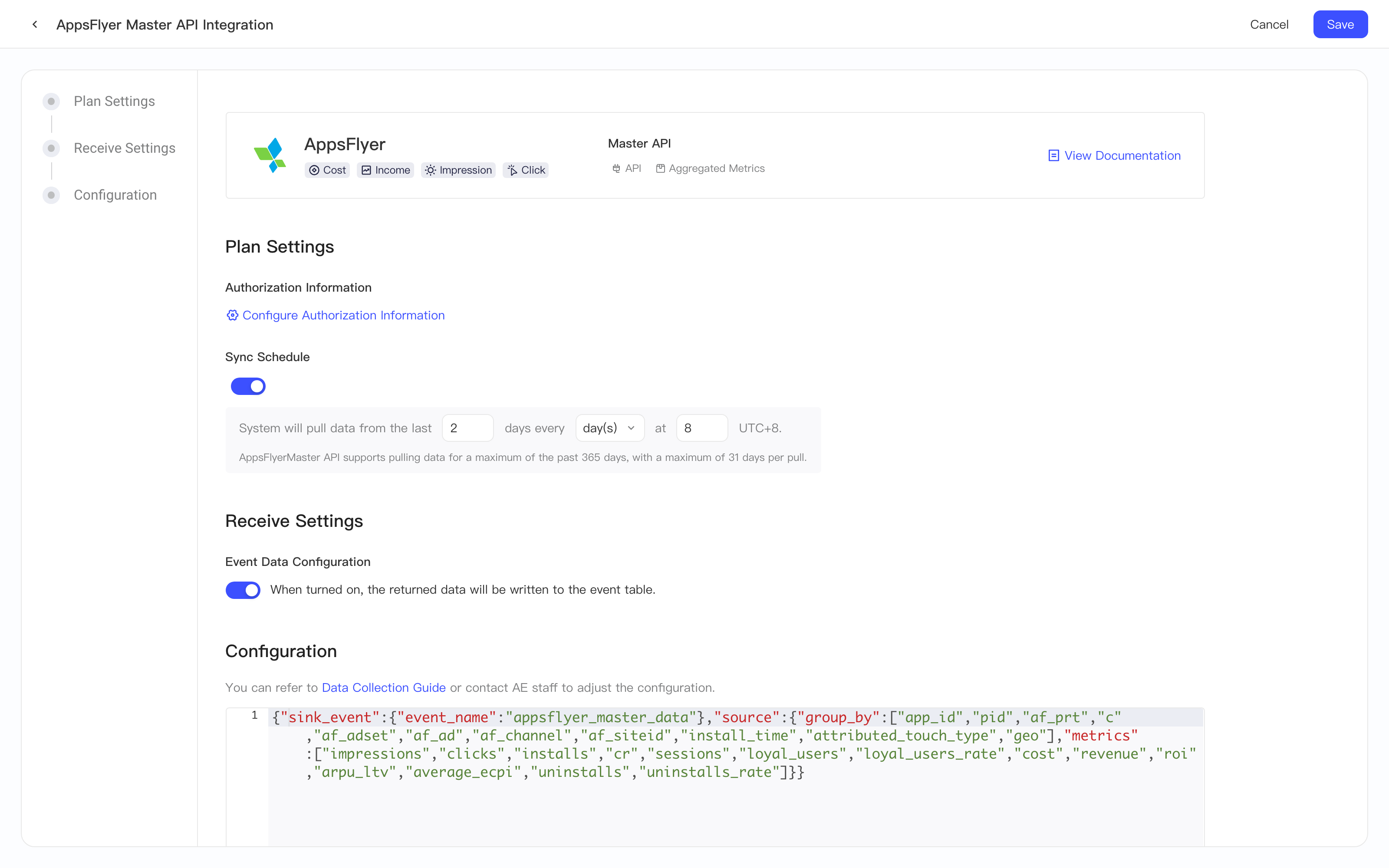

After getting the AppsFlyer API token and App ID, you can log in to the AE system and configure the new plan in the Third-party Integration module. The image below shows the configuration page of AppsFlyer Master API. Follow this section to create the plan:

2.1 Authorization information configuration

Click the Configure authorization information button under Authorization Information, and enter the API Token and App ID in the pop-up

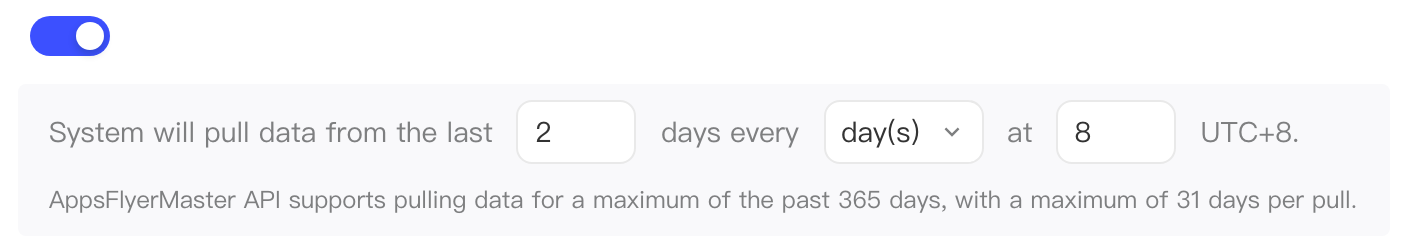

2.2 Sync Schedule

In the Sync Schedule module, you can set the policy for the AE system to pull AppsFlyer Master API data on a schedule. You can choose to pull data for a period of time at a specific time every day, with a maximum of 31 days per pull. Because pulled data also counts toward the data volume, avoid pulling data for overly long periods on a schedule

2.3 Pull time zone

Data is pulled in the project time zone, and the plan configuration has no separate pull time zone setting. The description under Sync Schedule states the time zone used, for example, "The system will, at UTC+8, every..."

2.4 Receive Settings

You can control whether the data is written as events. If you turn this off, the data is not written to the event table, so do not turn off this setting.

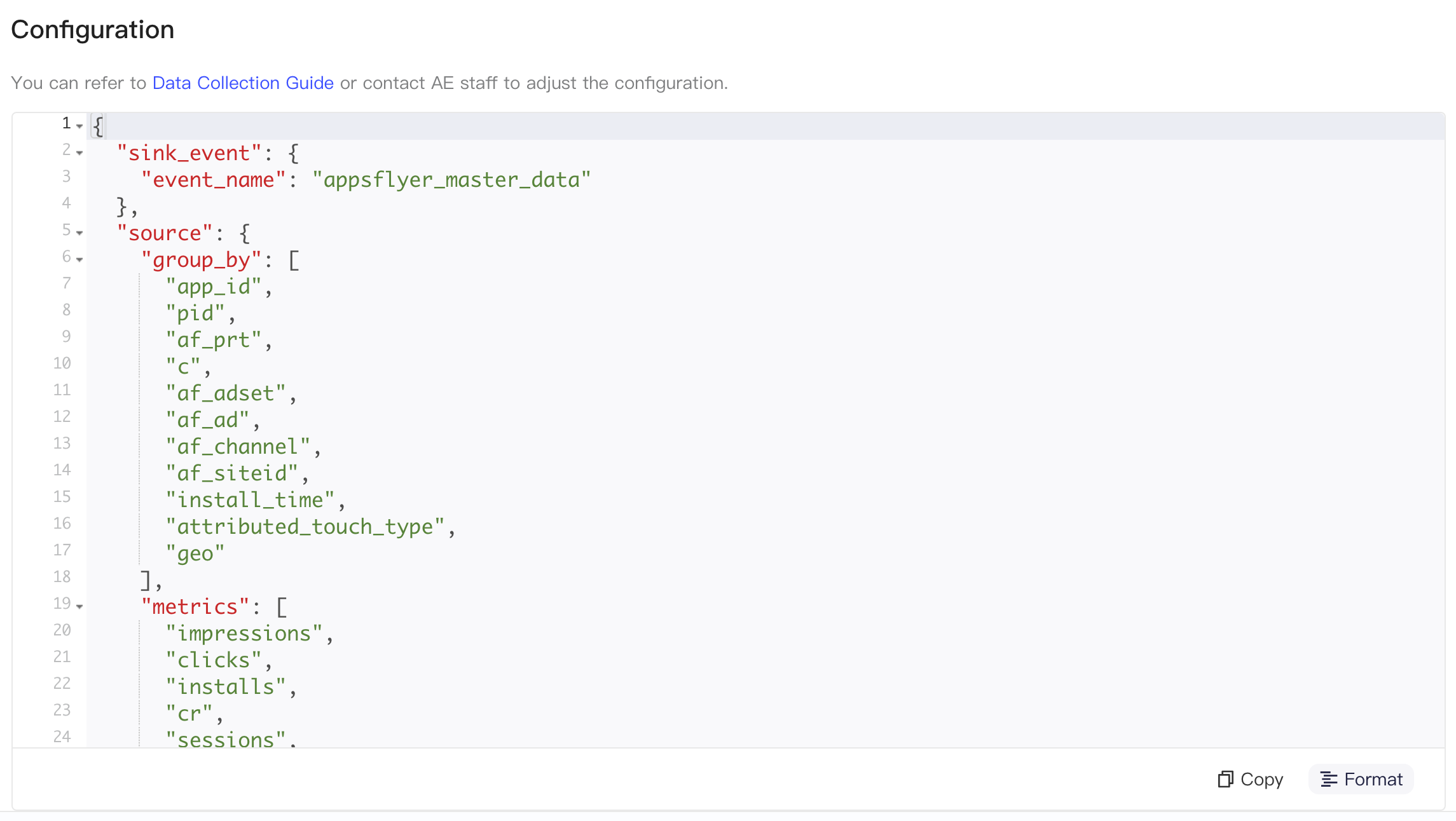

2.5 Configuration

Finally, in the Configuration module, you can control the detailed settings of data pulling, including the data type, the dimensions to pull, and the event name after ingestion.

The content of the configuration is a JSON, which you can customize as follows:

Module	Name	Description
sink_event	event_name	Event name after ingestion; customizable
source	metrics	Metrics in the data; list type; customizable
	group_by	Grouping dimensions in the data; list type; customizable

• Grouping dimensions

The following lists the grouping dimensions. To change them, modify source.group_by and use the field names.

Field meaning	Field name	Ingested name	Default
App ID	app_id	app_id	✓
Media Source	pid	media_source	✓
Agency	af_prt	partner	✓
Campaign	c	campaign	✓
Adset	af_adset	adset	✓
Ad	af_ad	ad	✓
Channel	af_channel	channel	✓
Publisher ID	af_siteid	publisher_id_af_siteid	✓
Keywords	af_keywords	keywords
Is Primary Attribution	is_primary	is_primary_attribution
Campaign ID	af_c_id	campaign_id
Adset ID	af_adset_id	adset_id
Ad ID	af_ad_id	ad_id
Install Time	install_time	install_time	✓
Touch Type	attributed_touch_type	touch_type	✓
GEO	geo	geo	✓

• Metric fields

Master API includes many types of metrics. The following lists some commonly used Master API fields. For the full list of fields, see the AppsFlyer official documentation:

tip

Note that some metrics support different dimension fields. To make changes, we recommend that you contact ThinkingAI staff

To change them, modify source.metrics

Ingested name	Description	Default
impressions	Impressions	✓
clicks	Clicks	✓
installs	Installs	✓
cr	Conversion rate	✓
sessions	Sessions	✓
loyal_users	Loyal user installs	✓
loyal_users_rate	Loyal user rate	✓
cost	Total cost	✓
revenue	Total revenue	✓
roi	ROI	✓
arpu_ltv	Average lifetime value	✓
average_ecpi	Average eCPI	✓
uninstalls	Uninstalls	✓
uninstalls_rate	Uninstall rate	✓
retention_day_[x]	Retained users on day N (N = 0,1,2,3,4,5,6,7,15,30)
retention_rate_day_[x]	Retention rate on day N (N = 0,1,2,3,4,5,6,7,15,30)
cohort_day_[x]_total_revenue_per_user	Cumulative revenue on day N (N = 1,2,3,4,5,6,7,15,30,40,50,60,70,80,90)
cohort_day_[x]_revenue_per_user	Same-day revenue on day N (N = 1,2,3,4,5,6,7,15,30,40,50,60,70,80,90)
cohort_[x]_days_total_revenue_per_user	Same as cumulative revenue on day N (N = 1,2,3,4,5,6,7,15,30,40,50,60,70,80,90)

2.6 Data ingestion rules

By default, we write the pulled data to the AE project as events:

• Because the Master API aggregated metrics API returns aggregated data, we use a fixed value as the user identifier. You can think of all the data as attached to one virtual user
• The install_time field in the data, that is, the user's install time, is used as the event's #event_time
• The event name is appsflyer_master_data
• All other fields are ingested

2.7 Standardized fields

The following event properties are standardized:

Original field	Standardized field	Description
media_source	te_ads_object.media_source	Media source
campaign	te_ads_object.campaign_name	Campaign name
campaign_id	te_ads_object.campaign_id	Campaign ID
adset	te_ads_object.ad_group_name	Ad group name
adset_id	te_ads_object.ad_group_id	Ad group ID
ad	te_ads_object.ad_name	Ad name
ad_id	te_ads_object.ad_id	Ad ID
app_id	te_ads_object.app_id	App ID
geo	te_ads_object.country	Country or region code
impressions	te_ads_object.impressions	Impressions
clicks	te_ads_object.clicks	Clicks
installs	te_ads_object.installs	Conversions (installs)
cost	te_ads_object.cost	Campaign cost
revenue	te_ads_object.revenue	Monetization revenue
