AppLovin User Revenue API

Last updated 10/03/2026

tip

Note that data generated by third-party data integration counts toward the cluster's data consumption

Summary

Interface overview

Interface	Type	Granularity	Attribution	Cost	Revenue	Impressions	Clicks	Conversions
User Revenue API	API	User level			✅	✅

In addition to the SDK and callback links, AppLovin also provides a data pull API, the User Revenue API, which supports pulling user-level or impression-level ad revenue data.

Integration process

1. Integrate the AppLovin SDK and the AE SDK, and set the AE user identification IDs in the AppLovin SDK
2. Log in to the AppLovin dashboard and get the authorization information required by the User Revenue API
3. Log in to the AE backend, go to the Third-party Integration module, add an AppLovin User Revenue API plan, and complete the related configuration
4. Check whether the AE system receives the data successfully, and build reports

1. Client SDK configuration

The first step in integrating AppLovin data is to connect the AE SDK with the AppLovin SDK on the client.

1.1 Option 1 (automatic linking)

• If you integrate the Android or iOS SDK:

  • If the SDK version is 2.8.0~2.8.1, you can use this option directly
  • If the SDK version is 2.8.2 or later, you also need to install the third-party data plugin. For details, see Android SDK third-party data and iOS SDK third-party data

tip

Note that AE SDK initialization and the code that enables automatic integration must run before the AppLovin SDK is initialized. Follow these steps:

1. Initialize the AE SDK.

2. Call `enableThirdPartySharing` to set the distinct ID automatically.

3. Initialize the AppLovin SDK.

The following are code samples for the SDK on each platform:

Android

// 1. Initialize the Android SDK
TDConfig config = TDConfig.getInstance(this, APPID, TE_SERVER_URL);
TDAnalytics.init(config);
// 2. Call the enableThirdPartySharing API to set ta_distinct_id in AppLovin events
TDAnalytics.enableThirdPartySharing(TDThirdPartyType.APPLOVIN_IMPRESSION)
// 3. Initialize the AppLovin SDK
//  ...

iOS

// 1. Initialize the iOS SDK
TDConfig *config = [[TDConfig alloc] init];
config.appid = appid;
config.serverUrl = url;
[TDAnalytics startAnalyticsWithConfig:config];
// 2. Call the enableThirdPartySharing API to set ta_distinct_id in AppLovin events
[TDAnalytics enableThirdPartySharing:TDThirdPartyTypeAppLovin];
// 3. Initialize the AppLovin SDK
//  ...

This option works by automatically calling the setUserIdentifier() method of the AppLovinSdk SDK internally to pass in the distinct ID of the AE project.

1.2 Option 2 (manual linking)

With manual linking, you use the setUserIdentifier() API in AF AppLovin to set the distinct ID of the AE project.

tip

Note that AE SDK initialization and the setUserIdentifier call must run before the AppLovin SDK is initialized. Follow these steps:

1. Initialize the AE SDK.

2. Call `setUserIdentifier` to set the distinct ID.

3. Initialize the AppLovin SDK.

The following are manual integration code samples for the SDK on each platform:

Android

// 1. Initialize the Android SDK
TDConfig config = TDConfig.getInstance(this, APPID, TE_SERVER_URL);
TDAnalytics.init(config);
// 2. Get the AE distinct ID, which corresponds to #distinct_id in AE
String distinctId = TDAnalytics.getDistinctId();
// 3. Set the distinct ID in events collected by AppLovin
AppLovinSdk.getInstance(context).setUserIdentifier(distinctId);
// 4. Initialize the AppLovin SDK
//  ...

iOS

// 1. Initialize the iOS SDK
TDConfig *config = [[TDConfig alloc] init];
config.appid = appid;
config.serverUrl = url;
[TDAnalytics startAnalyticsWithConfig:config];
// 2. Get the AE distinct ID, which corresponds to #distinct_id in AE
NSString *distinctId = [TDAnalytics getDistinctId];
// 3. Set the distinct ID in events collected by AppLovin
[ALSdk shared].userIdentifier = distinctId;
// 4. Initialize the AppLovin SDK
//  ...

Unity

// 1. Initialize the Unity SDK
TDConfig config = new TDConfig("APPID","SERVER");
TDAnalytics.Init(config);
// 2. Get the AE distinct ID, which corresponds to #distinct_id in AE
var distinctId = TDAnalytics.GetDistinctId();
// 3. Set the distinct ID in events collected by AppLovin
MaxSdk.SetUserId(distinctId);
// 4. Initialize the AppLovin SDK
//  ...

2. Get the Report Key

Next, log in to the AppLovin dashboard and get the Report Key under Account > Key. Keep this key safe

3. Plan configuration

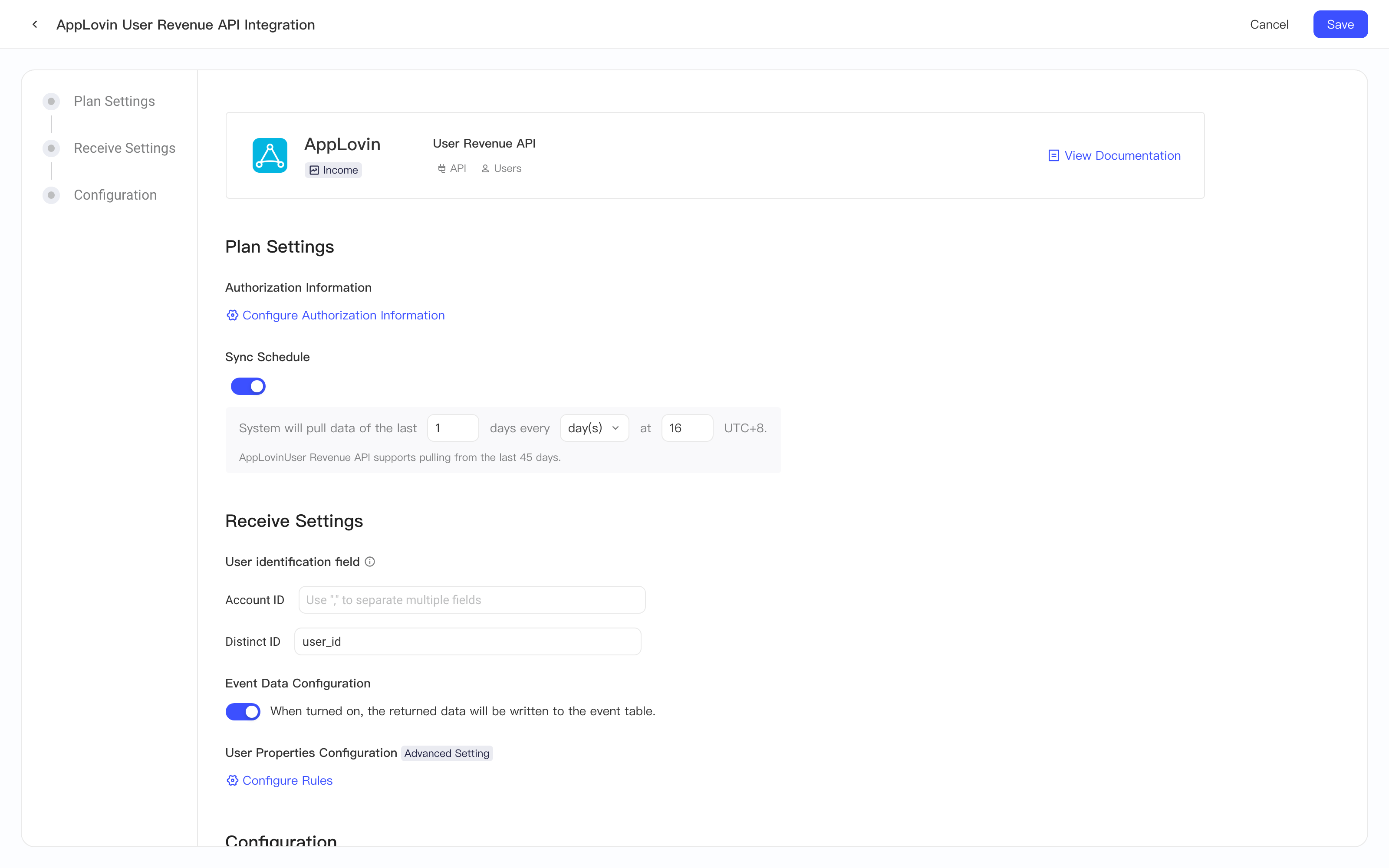

After you complete the SDK configuration and get the Report Key, log in to the AE system and configure the new plan in the Third-party Integration module. The image below shows the configuration page of AppLovin User Revenue API. Follow this section to create the plan:

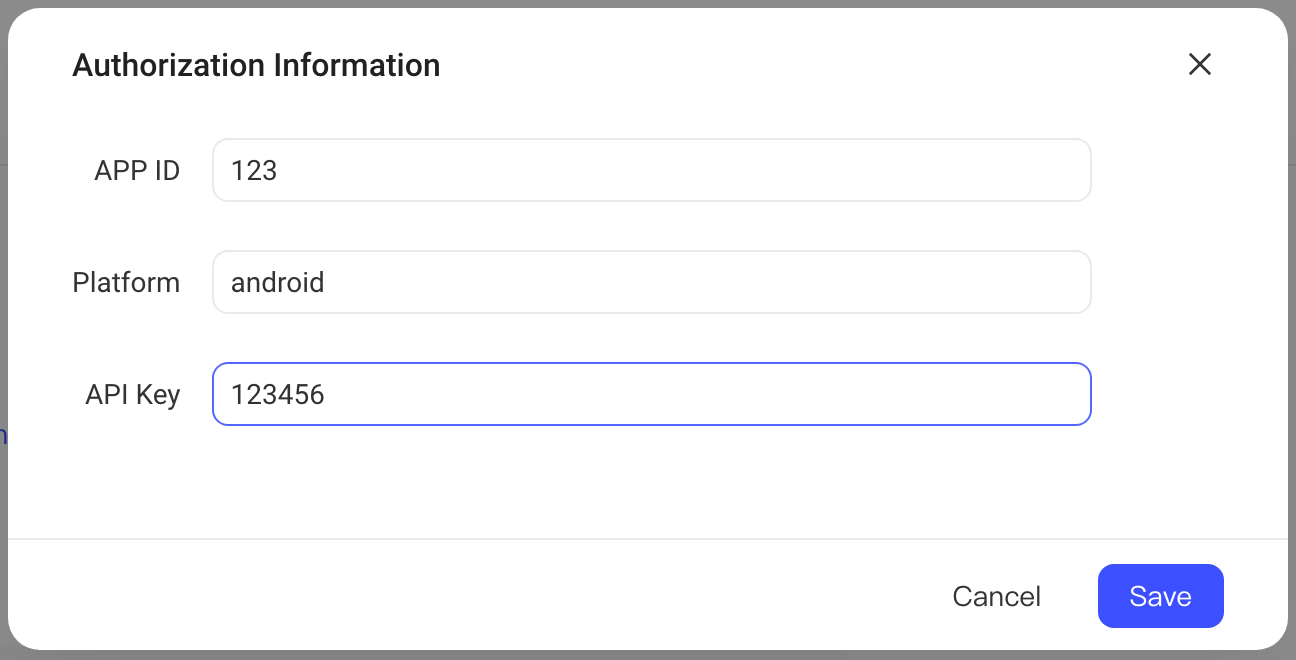

3.1 Authorization information configuration

Click the Configure authorization information button under Authorization Information, and enter the information you obtained during authorization in the pop-up (to enter the API Key, first click the edit icon on the right)

Where:

• APP ID: the numeric part of the iTunes ID on iOS, or the app package name on Android
• Platform: the platform of the game. Enter android or ios
• API Key: the Report Key you just obtained

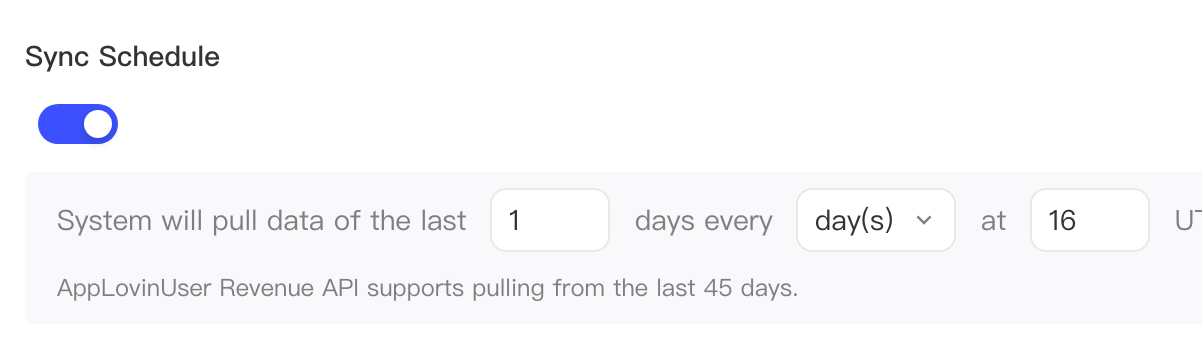

3.2 Sync Schedule

In the Sync Schedule module, you can set the policy for the AE system to pull AppLovin User Revenue API data on a schedule. You can choose to pull data for a period of time at a specific time every day or every hour. Because pulled data also counts toward the data volume, avoid pulling data for overly long periods on a schedule

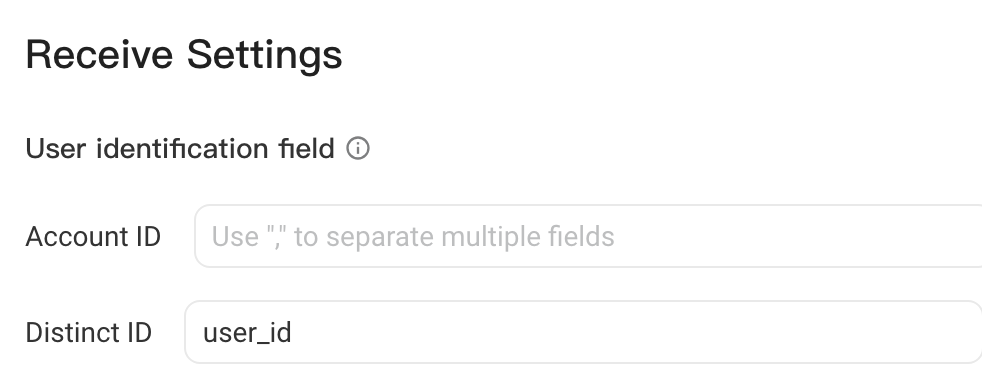

3.3 User identification fields

Because AppLovin User Revenue API provides user-level data, you need to set user identification rules for it, that is, the fields in the AppLovin User Revenue API data that correspond to #distinct_id and #account_id. Based on this configuration, the AE system sets these fields as the user identification fields of the data when it converts the pulled data.

If you configured the client SDK as described in the previous step of this document, use the following configuration:

• Field associated with the account ID: none
• Field associated with the distinct ID: user_id

3.4 Event Data Configuration

After you turn on the Event Data Configuration switch, all data sent back is written to the event table. We recommend that you enable event data ingestion.

3.5 User Properties Configuration

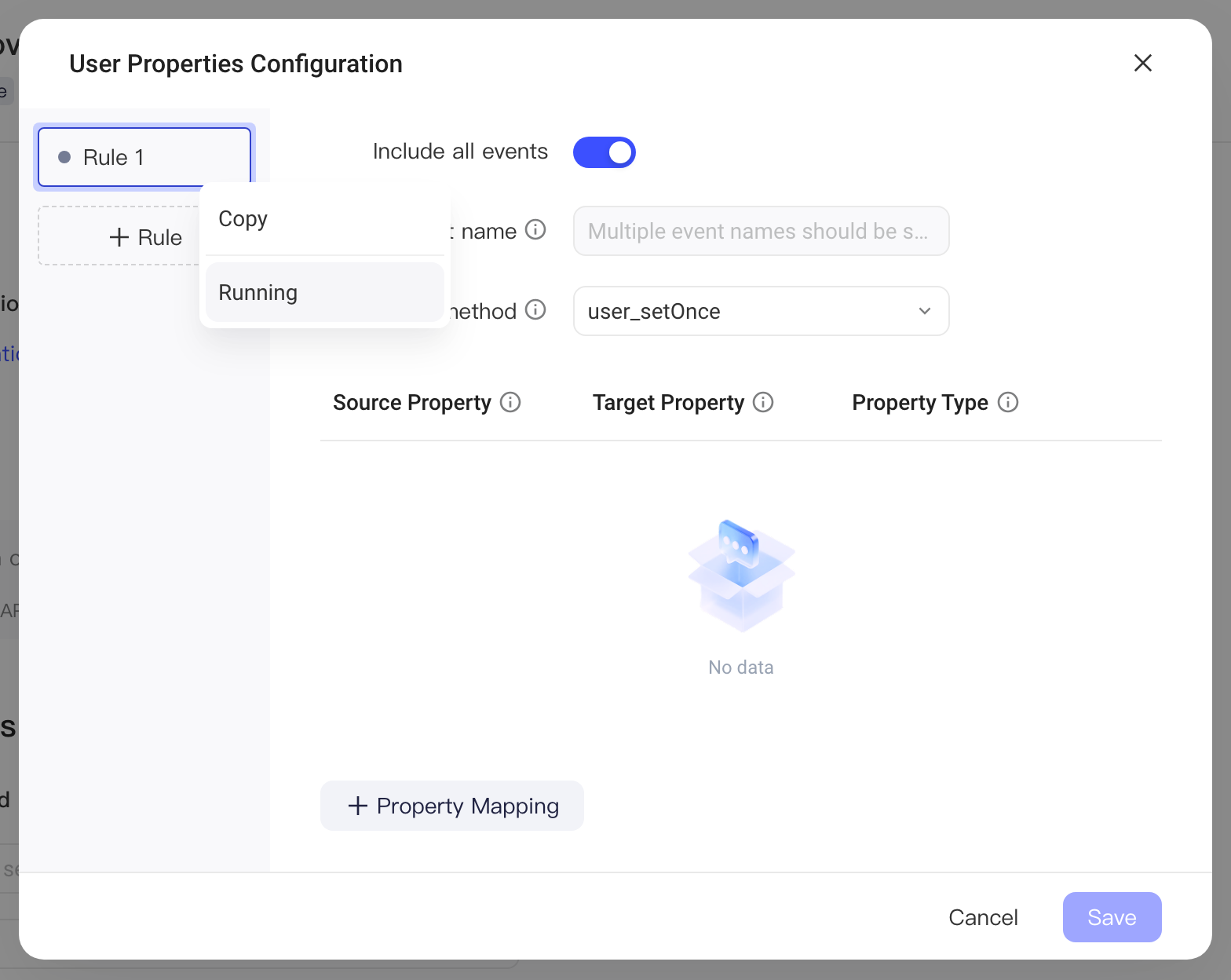

By default, the AE system does not write AppLovin User Revenue API data to user properties. To write some fields to the user table, first turn on the rule so that it runs, and then use the Property Mapping feature to add the fields to write to the user table. For Source Property, enter the ingested name of the field:

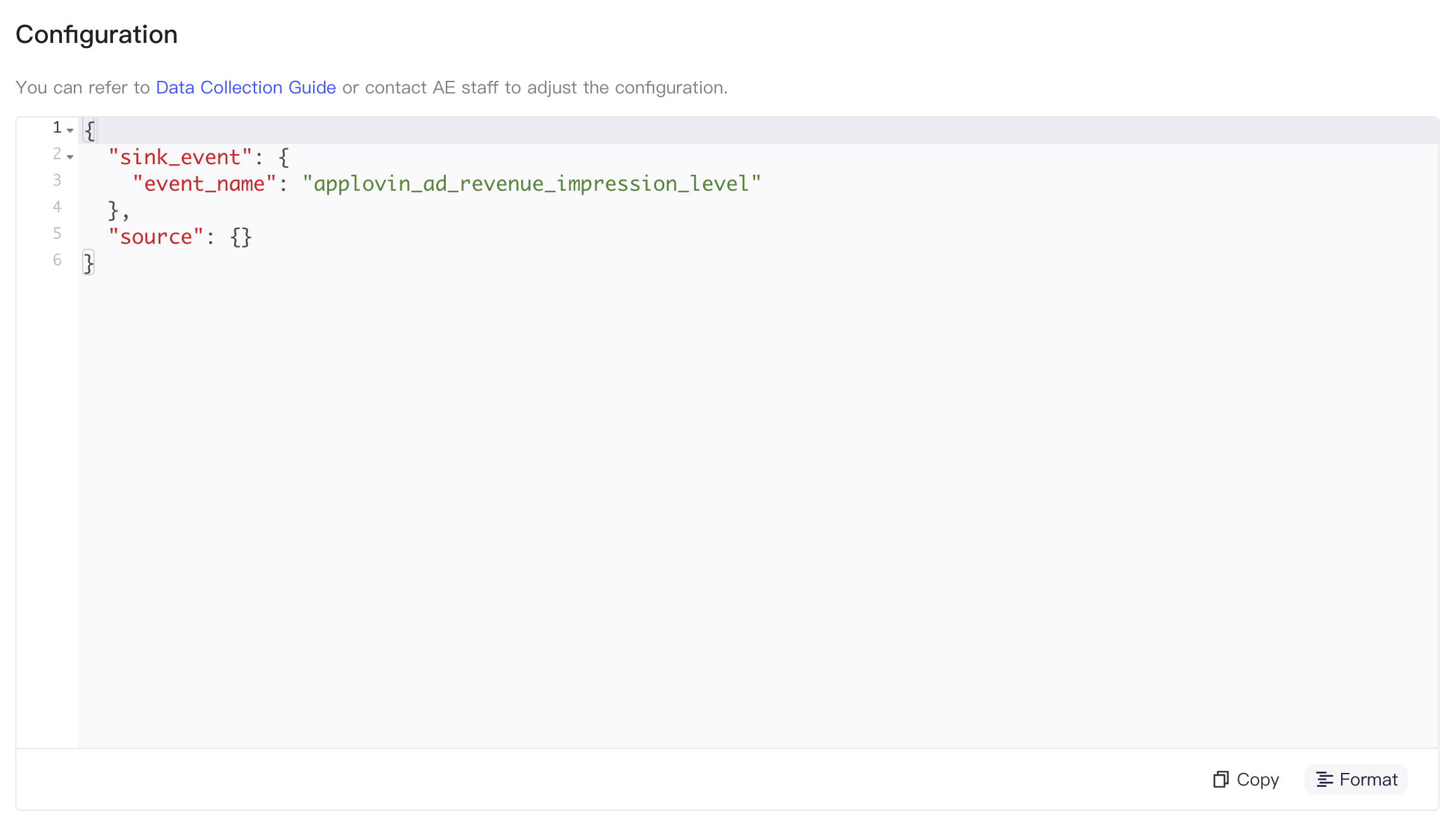

3.6 Configuration

In the Configuration module, you can control the detailed settings of data pulling, such as the event name after ingestion.

The configuration is a JSON, and you can adjust its content as needed

Module	Name	Description
sink_event	event_name	Event name after ingestion; customizable

3.7 Data ingestion rules

• user_id in the data is used as the distinct ID of the data. This field should correspond to the distinct ID in the AE project
• The date field in the data, that is, the ad impression time, is used as the event's #event_time
• The event name is applovin_ad_revenue_impression_level
• All other fields are stored. The following are the meanings of all fields in the returned data:

Field	Ingested name	Description	Sample
Ad Format	ad_format	Ad type	INTER, BANNER, REWARD
Ad Placement	ad_placement	Placement name customized in the SDK	Launch%20Screen
Ad Unit ID	ad_unit_id	MAX ad ID	9ad0816ac071552a
Ad Unit Name	ad_unit_name	MAX ad name	Control
Country	country	Two-letter Country Code	gb
Custom Data	custom_data	Custom data set through the SDK	gb
Date	date	Time of the ad impression	2019-07-29 15:53:07.39
Device Type	device_type	Device Type	PHONE, TABLET
IDFA	idfa	IDFA on iOS or Google Advertising ID on Android	860635ea-65bc-eaed-d355-1b5283b30b94
IDFV	idfv	IDFV	4CD1C3C4-3FD7-00F5-1635-7BC6D9387E60
Network	network	The Ad Network that displayed the ad	For possible values, see (MAX Mediation Documentation (applovin.com)) APPLOVIN_NETWORK
Placement	placement	Placement name of the Ad Network	MY_NATIVE_PLACEMENT
Revenue	revenue	Estimated revenue, including FB Bidding values	0.0121, 5.74466e-05
User ID	user_id	User ID set by the SDK, which corresponds to the distinct ID of the AE project	7634657898
Waterfall	waterfall	Name of the ad Waterfall	LAT

3.8 Standardized fields

The following event properties are standardized:

Original field	Standardized field	Description
network_name	te_ads_object.media_source	Media source
ad_mediation_platform	te_ads_object.media_source	Monetization channel
ad_unit_name	te_ads_object.ad_group_name	Unit name of the monetization ad
ad_unit_id	te_ads_object.ad_group_id	Unit ID of the monetization ad
ad_placement	te_ads_object.placement	Monetization ad placement
app_id	te_ads_object.app_id	App ID
country	te_ads_object.country	Country or region code
platform	te_ads_object.platform	Platform, such as Android or iOS
Fixed value USD	te_ads_object.currency	Currency of the monetization revenue
revenue	te_ads_object.revenue	Monetization revenue
