Airbridge Actuals Report

Last updated 10/05/2026

tip

Note that data generated by third-party data integration counts toward the cluster's data consumption

Summary

Interface overview

Interface	Type	Granularity	Attribution	Cost	Revenue	Impressions	Clicks	Conversions
Actuals Report	API	Aggregated metrics		✅		✅	✅	✅

Airbridge Actuals Report provides aggregated report data, including metrics such as cost, impressions, clicks, and conversions. This integration plan pulls Airbridge report data on a schedule in the AE backend. The API uses an asynchronous task mode: AE first creates a report task, then polls the task status, and reads the results page by page after the task completes.

Integration process

1. Get the authorization information app_name and api_token in the Airbridge dashboard
2. Log in to the AE backend, go to the Third-party Integration module, add an Airbridge Actuals Report plan, and complete the related configuration
3. Check whether the AE system receives the data successfully, and build reports

1. Get Airbridge authorization information

Before you use Airbridge Actuals Report, prepare the following authorization information.

Authorization information	Required	Description
app_name	Yes	Airbridge app name, used to build the API request path
api_token	Yes	Airbridge API call credential

2. Plan configuration

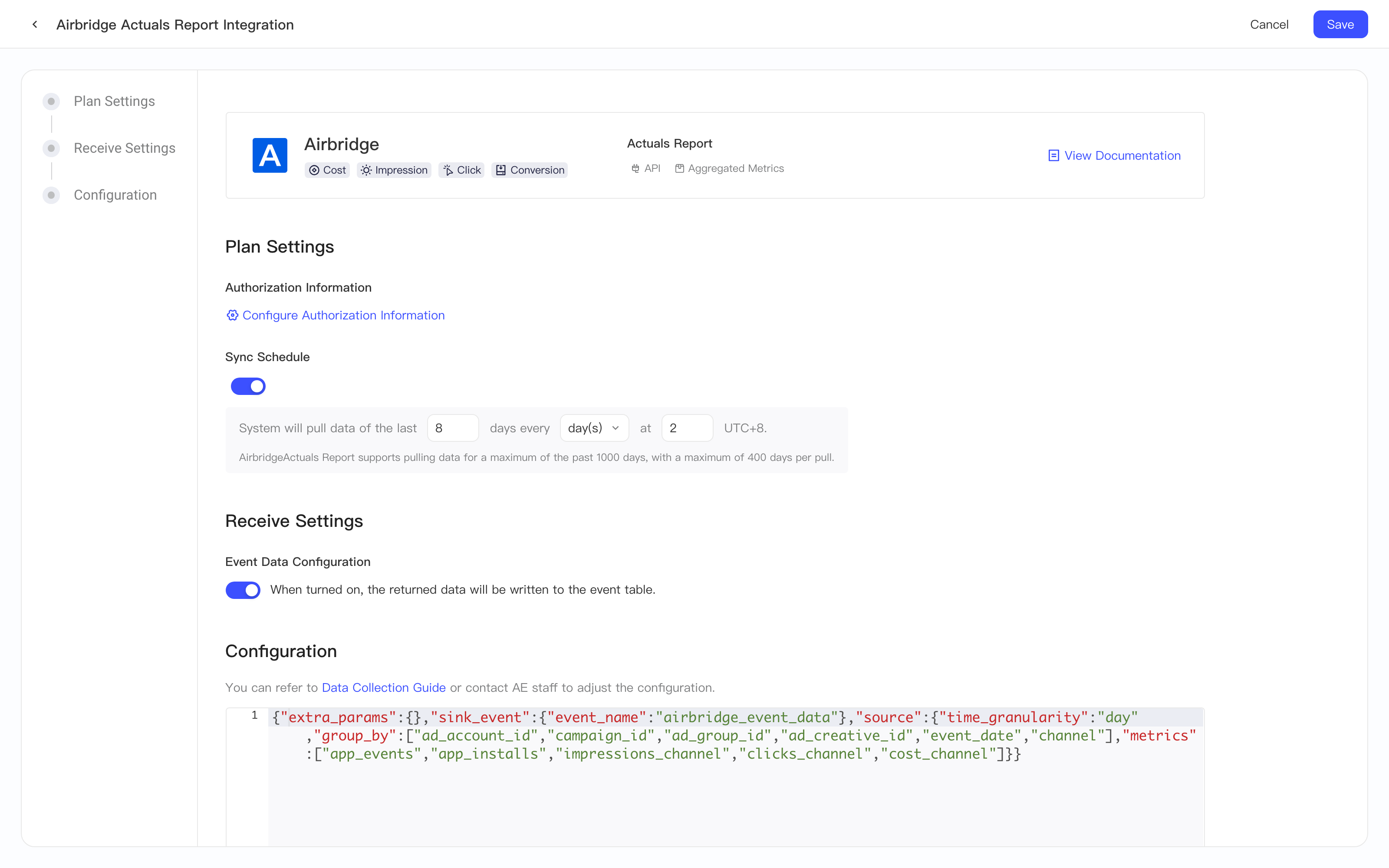

After getting the Airbridge authorization information, log in to the AE system and configure the new plan in the Third-party Integration module. The image below shows the configuration page of Airbridge Actuals Report. Follow this section to create the plan:

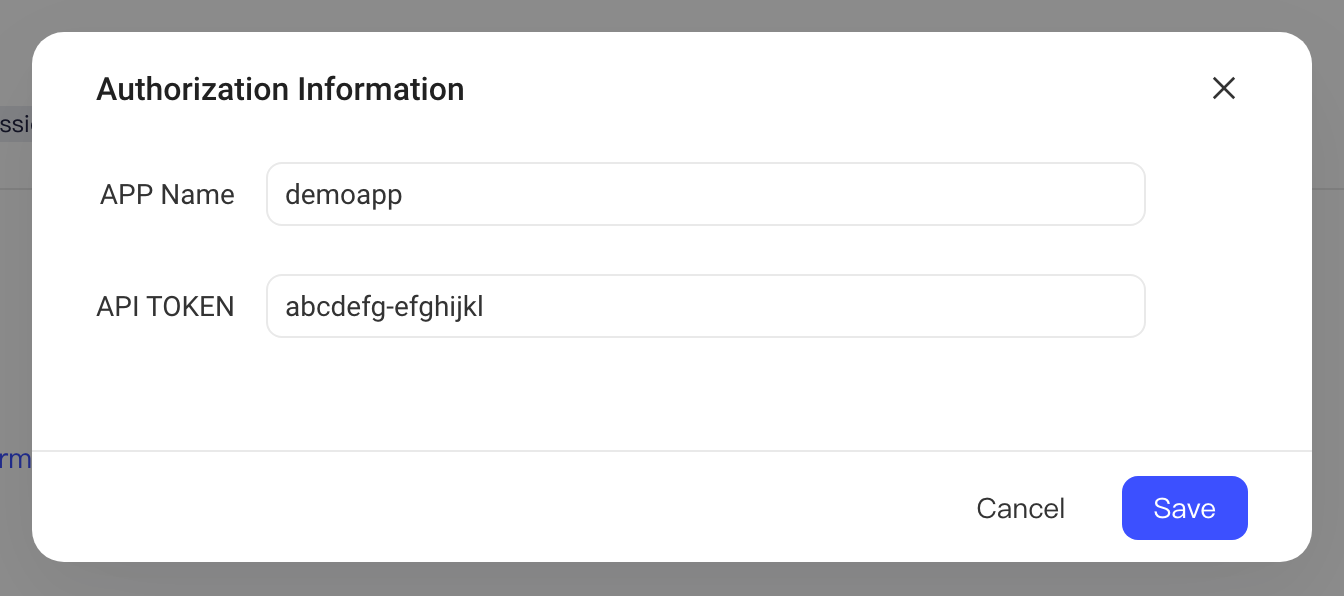

2.1 Authorization information configuration

In Authorization Information, enter the app_name and api_token obtained from Airbridge.

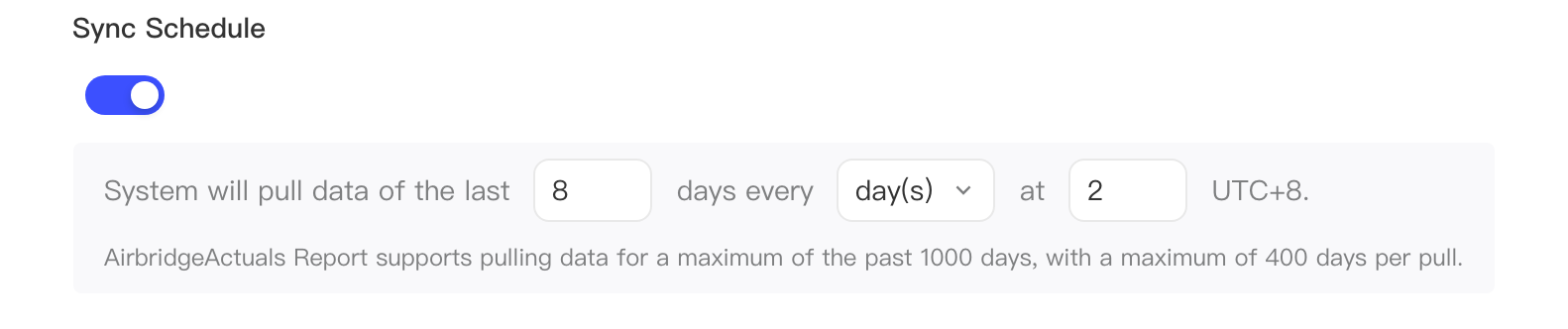

2.2 Sync Schedule

You can configure how often the plan pulls data on a schedule. Once this is enabled, the AE system starts Actuals Report data retrieval tasks in Airbridge at the configured interval.

Airbridge Actuals Report can pull data from a time range of up to the past 1000 days, and a single pull covers up to 400 days.

2.3 Event Data Configuration

You can control whether the data is written as events. After you turn on the Event Data Configuration switch, the AE system writes the aggregated data pulled from Airbridge Actuals Report to the event table.

We recommend that you enable event data ingestion. If you turn off this setting, the pulled data is not written to the event table and cannot be used in Events Analysis later.

2.4 Configuration

Configuration defines how data is retrieved from Airbridge Actuals Report and how it is stored, including metrics, dimensions, time granularity, date range, the event name after ingestion, and extended parameters.

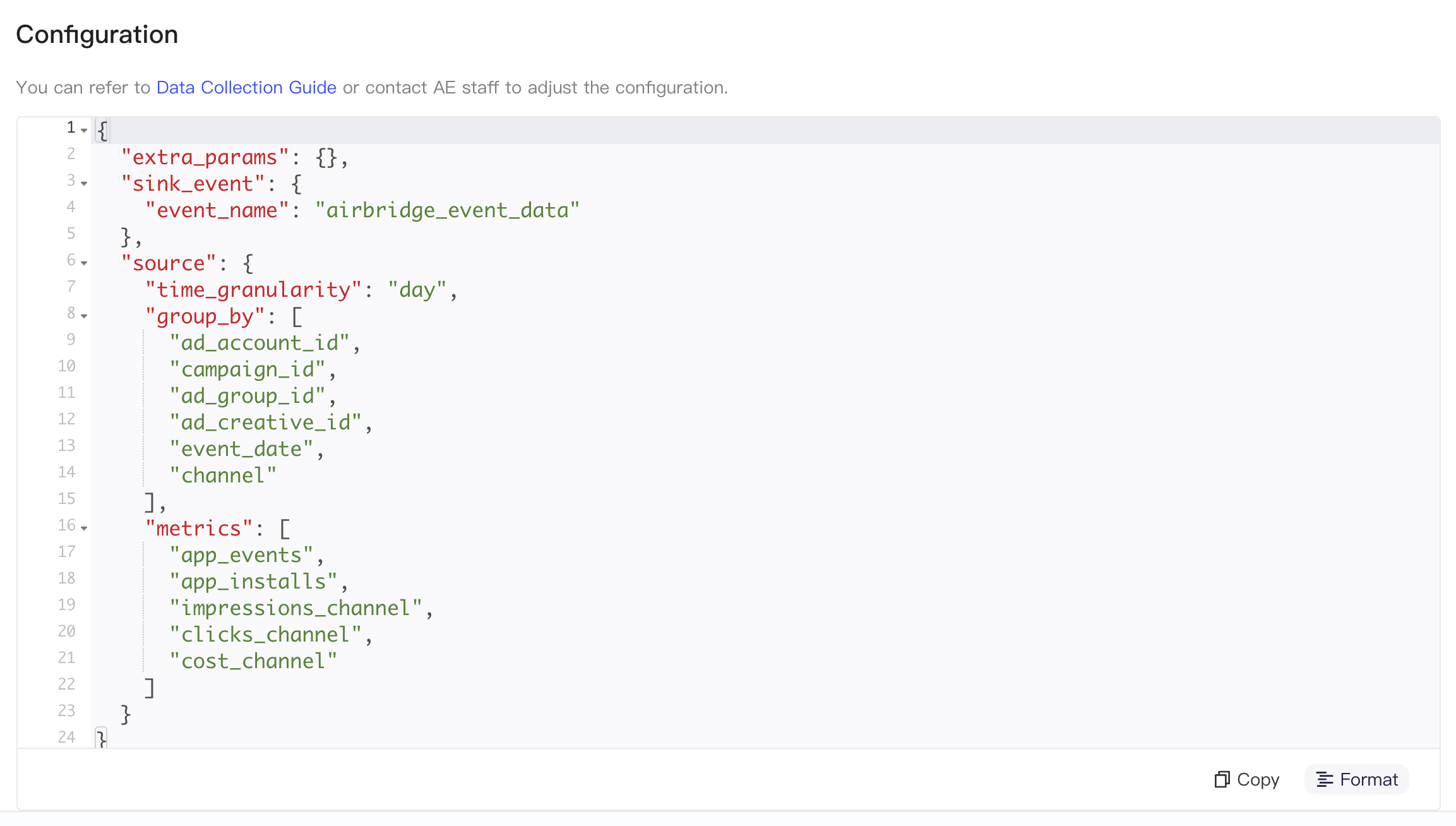

The content of the configuration is a JSON, which you can customize as follows:

Module	Name	Required	Description
source	metrics	Yes	List of metrics to pull
	group_by	Yes	Dimensions by which data is aggregated
	time_granularity	Yes	Time granularity; currently only day is supported
Root configuration	date_range	Yes	Date range of each pull
sink_event	event_name	Yes	Event name after ingestion; customizable
extra_params	filters	No	Airbridge filter conditions
	sorts	No	Airbridge sort conditions

{
  "source": {
    "metrics": [
      "app_events",
      "app_installs",
      "impressions",
      "impressions_channel",
      "clicks_channel",
      "cost_channel"
    ],
    "group_by": [
      "ad_account_id",
      "campaign_id",
      "ad_group_id",
      "ad_creative_id",
      "event_date",
      "channel"
    ],
    "time_granularity": "day"
  },
  "date_range": "0,1",
  "sink_event": {
    "event_tracking": true,
    "event_name": "airbridge_event_data"
  },
  "extra_params": {}
}

2.4.1 Metric configuration

metrics configures the Airbridge metrics to pull. Common metrics include event count, install count, impression count, click count, cost, and revenue.

Metric field	Description	Description
app_events	Number of in-app events	In sample configuration
app_installs	Number of app installs	In sample configuration
impressions	Number of impressions	In sample configuration
impressions_channel	Channel impressions	In sample configuration
clicks_channel	Channel clicks	In sample configuration
cost_channel	Channel cost	In sample configuration
app_total_revenue	Total app revenue	Optional

2.4.2 Group-by dimensions

group_by configures the aggregation dimensions of the report. groupBys in the Airbridge response is returned in the order of group_by in the request.

Group-by dimension	Ingested field name	Type	Description	Remarks
ad_account_id	ad_account_id	String	In sample configuration	Ad account ID
campaign_id	campaign_id	String	In sample configuration	Campaign ID
ad_group_id	ad_group_id	String	In sample configuration	Ad group ID
ad_creative_id	ad_creative_id	String	In sample configuration	Ad creative ID
event_date	event_date	Date	In sample configuration	Data date
channel	channel	String	In sample configuration	Channel
platform	platform	String	Optional	Platform
event_type	event_type	String	Optional	Event type
event_source	event_source	String	Optional	Event source
event_category	event_category	String	Optional	Event category

Do not change the order of group_by during parsing or ingestion. If the order changes, dimension values may be misaligned.

2.4.3 Extended parameters

Airbridge Actuals Report supports filtering and sorting. You can configure filters and sorts in extra_params.

Config items	Required	Description
extra_params.filters	No	Filter conditions; dimension must be in source.group_by
extra_params.sorts	No	Sort conditions; fieldName must be in source.group_by or source.metrics

Configuration example:

{
  "extra_params": {
    "filters": [
      {
        "dimension": "channel",
        "filterType": "IN",
        "values": [
          "App"
        ]
      }
    ],
    "sorts": [
      {
        "fieldName": "event_date",
        "isAscending": true
      }
    ]
  }
}

2.5 Configuration limits

Module	Limit	Rule
Sync Schedule	Time window per query	Up to 400 days
	Query time range	Up to 1000 days
Configuration	source.group_by	Up to 10
	source.metrics	Up to 20
	extra_params.filters[].dimension	Must be in source.group_by
	extra_params.sorts[].fieldName	Must be in source.group_by or source.metrics

2.6 Event ingestion rules

The report results of Airbridge Actuals Report are not flat field objects. Instead, they consist of groupBys and values.

1. Because Actuals Report returns aggregated data, a fixed value is used as the user identifier. You can think of all data as attached to one virtual user.
2. The event_date field in the data, that is, the data date, is set as the #event_time of the aggregated data.
3. The event name used in the template is airbridge_event_data. To change it, modify sink_event.event_name.
4. groupBys is returned in the order of source.group_by in the request.
5. During ingestion, the values in the groupBys array are written to the corresponding dimension fields in the same order.
6. values.<metric>.value is written to event properties as the metric value.
7. All other recognizable metric and dimension fields are stored.
8. If a metric returns isMasked=true, the metric value has been masked or hidden by Airbridge. Keep this in mind during analysis.
9. If notifications exists in the response, Airbridge has added notices to or processed the aggregated results. We recommend that you refer to it when you troubleshoot data discrepancies.

Example:

{
  "groupBys": [
    "2026-06-02",
    "facebook.business",
    "120239009297780452"
  ],
  "values": {
    "app_events": {
      "value": 2,
      "isMasked": false
    }
  }
}

If group_by in the request is ["event_date", "channel", "campaign_id"], the above data is mapped as follows:

Ingested field	Ingested value
event_date	2026-06-02
channel	facebook.business
campaign_id	120239009297780452
app_events	2

2.7 Standardized fields

Airbridge fields can be standardized based on the AE system's standard ad object te_ads_object, but the final mapping must be confirmed against the semantics of the Airbridge fields and the AE system's common field definitions before it is published.

Original field	Standardized field	Description
ad_account_id	te_ads_object.ad_account_id	Ad account ID
campaign_id	te_ads_object.campaign_id	Campaign ID
campaign	te_ads_object.campaign_name	Campaign name
ad_group_id	te_ads_object.ad_group_id	Ad group ID
ad_group	te_ads_object.ad_group_name	Ad group name
ad_creative_id	te_ads_object.ad_id	Ad ID
ad_creative	te_ads_object.ad_name	Ad name
channel	te_ads_object.media_source	Media source
platform	te_ads_object.platform	Platform
country	te_ads_object.country	Country/Region
currency	te_ads_object.currency	Currency
agency_of_the_tracking_link_creator	te_ads_object.agency	Agency
app_package_name	te_ads_object.app_id	App ID
airbridge_app_name	te_ads_object.app_name	App name
impressions_channel	te_ads_object.impressions	Impressions
clicks_channel	te_ads_object.clicks	Clicks
cost_channel	te_ads_object.cost	Ad cost
app_installs	te_ads_object.installs	Install

3. Next steps

3.1 Check data ingestion

After you save and enable the plan, you can check in the AE system whether data has been stored for the event specified by sink_event.event_name.

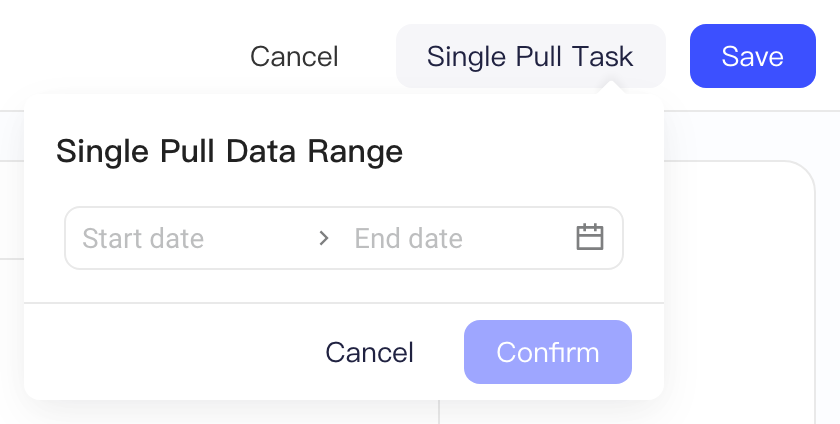

3.2 Pull data once

To backfill data for a specific date range as a one-off, use the single pull feature. Backfills are still subject to the date range limits of Airbridge Actuals Report.

The date range of a single backfill cannot exceed 400 days.

3.3 Troubleshoot data discrepancies

If the data in the AE system is inconsistent with what the Airbridge dashboard shows, check the following settings first:

• Whether date_range and the pull time zone match the calculation basis of the Airbridge report.
• Whether metrics and group_by match the selections in the Airbridge dashboard report.
• Whether filters and sorts affect the returned results.
• Whether all paginated results have been read.
• Whether isMasked=true or notifications exists in the returned results.
