Model-mapping event properties

Last updated 10/05/2026

1. Feature overview​

Previous approach

  • In the previous data model, reported data directly generated assets such as events and event properties, which were then used to build assets such as reports and dashboards
  • Multi-source data integration wasn't supported, and assets for analysis scenarios couldn't be built before data was reported
View original image

Previous data model: reported data is used directly by analysis features

Super-layer model and reported data

  • The super-layer model adds an isolation layer between source data and the analysis features that use it, removing the strong dependency between the two
  • Adds the Model-Mapping Event Property management feature, where you can view model-mapping event property data
View original image

Super-layer model data flow

2. Usage​

List page​

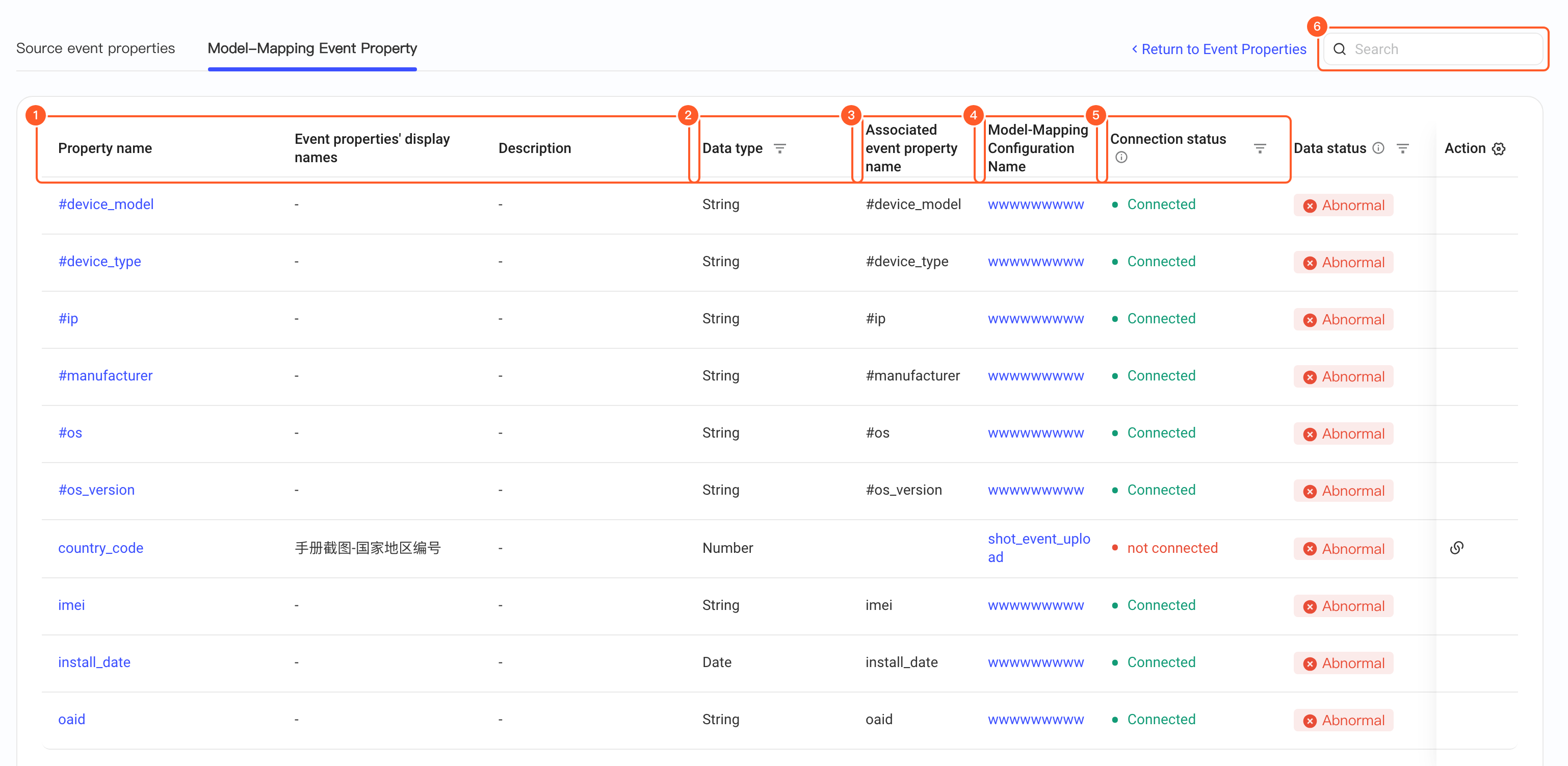

Model-mapping event properties page overview

Automatic detection logic​

  • When there's a new model-mapping configuration, the AE system automatically creates a super event property with the same name and associates it with the model-mapping event property, and the connection status changes to Connected
  • If a super event property with the same name or type is already used by other data, the automatic detection logic is interrupted. Confirm the scope of impact, and then use the Create and Associate Super Event Property feature below to do it manually

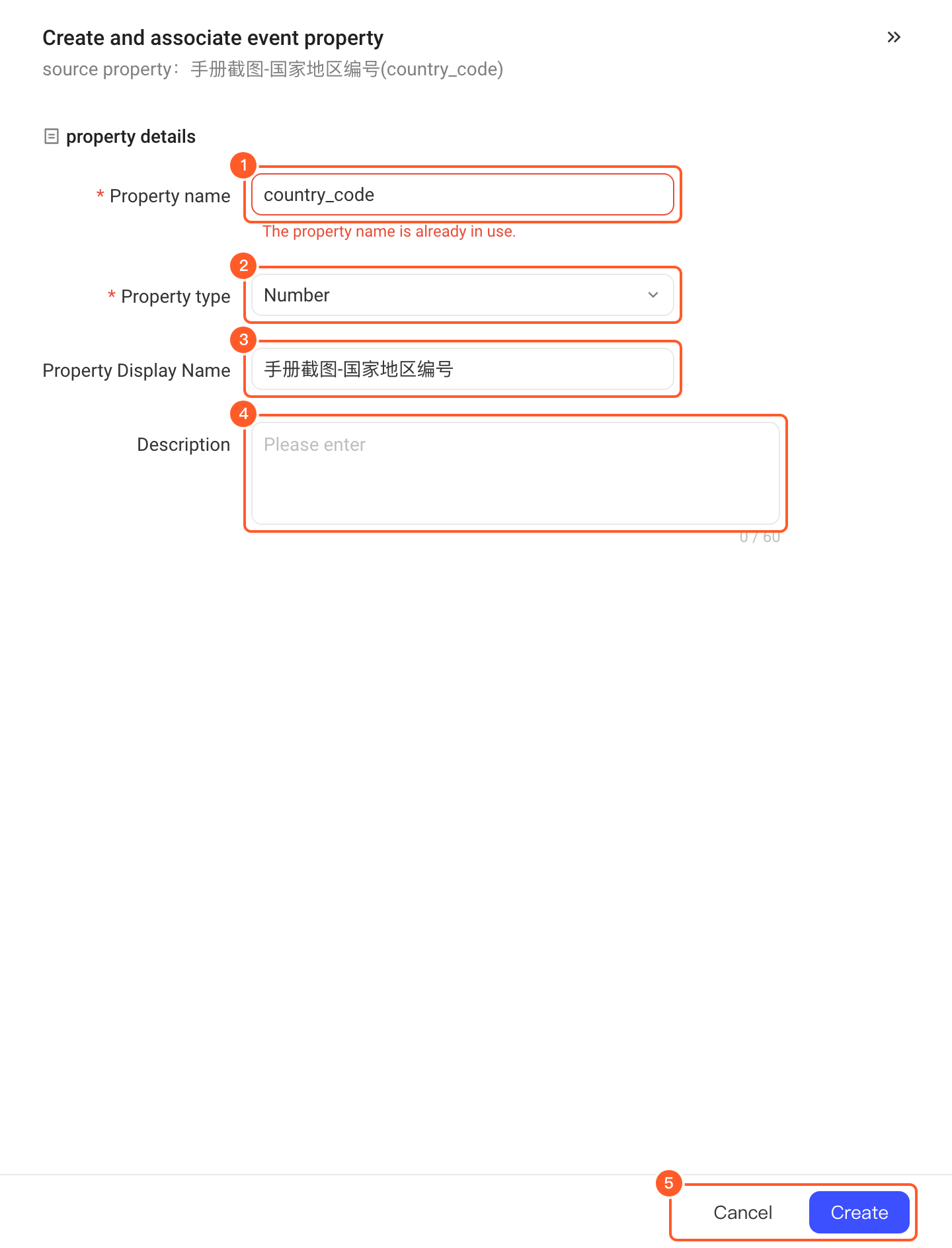

Creating and associating a super event property

3. Parameter limits​

  • A single project can have up to 10,000 model-mapping assets, regardless of type
