Model-mapping user properties

Last updated 10/05/2026

1. Feature overview​

Previous approach

  • In the previous data model, reported data directly generated assets such as events and user properties, which were then used to build assets such as reports and dashboards
  • Multi-source data integration wasn't supported, and assets for analysis scenarios couldn't be built before data was reported
View original image

Previous data model: reported data is used directly by analysis features

Super-layer model and reported data

  • The super-layer model adds an isolation layer between source data and the analysis features that use it, removing the strong dependency between the two
  • Adds the Model-Mapping User Property management feature, where you can view model-mapping user property data
View original image

Super-layer model data flow

Note

Unlike event properties, each user property can have only 1 data source (data reporting or model mapping)

Model-mapping user property configuration must be enabled by a data administrator. Discuss and confirm this during the project kickoff phase, and then carry out the related operations

In the current version, model-mapping user properties are configured in Model-Mapping Configuration (Entity table)

2. Usage​

List page​

Model-mapping user properties page overview

Automatic detection logic​

  • When there's a new model-mapping configuration, the AE system automatically creates a super user property with the same name and associates it with the model-mapping user property
  • If a super user property with the same name or type is already used by other data, the automatic detection logic is interrupted. Confirm the scope of impact, and then use the Create and Associate Super User Property feature below to do it manually

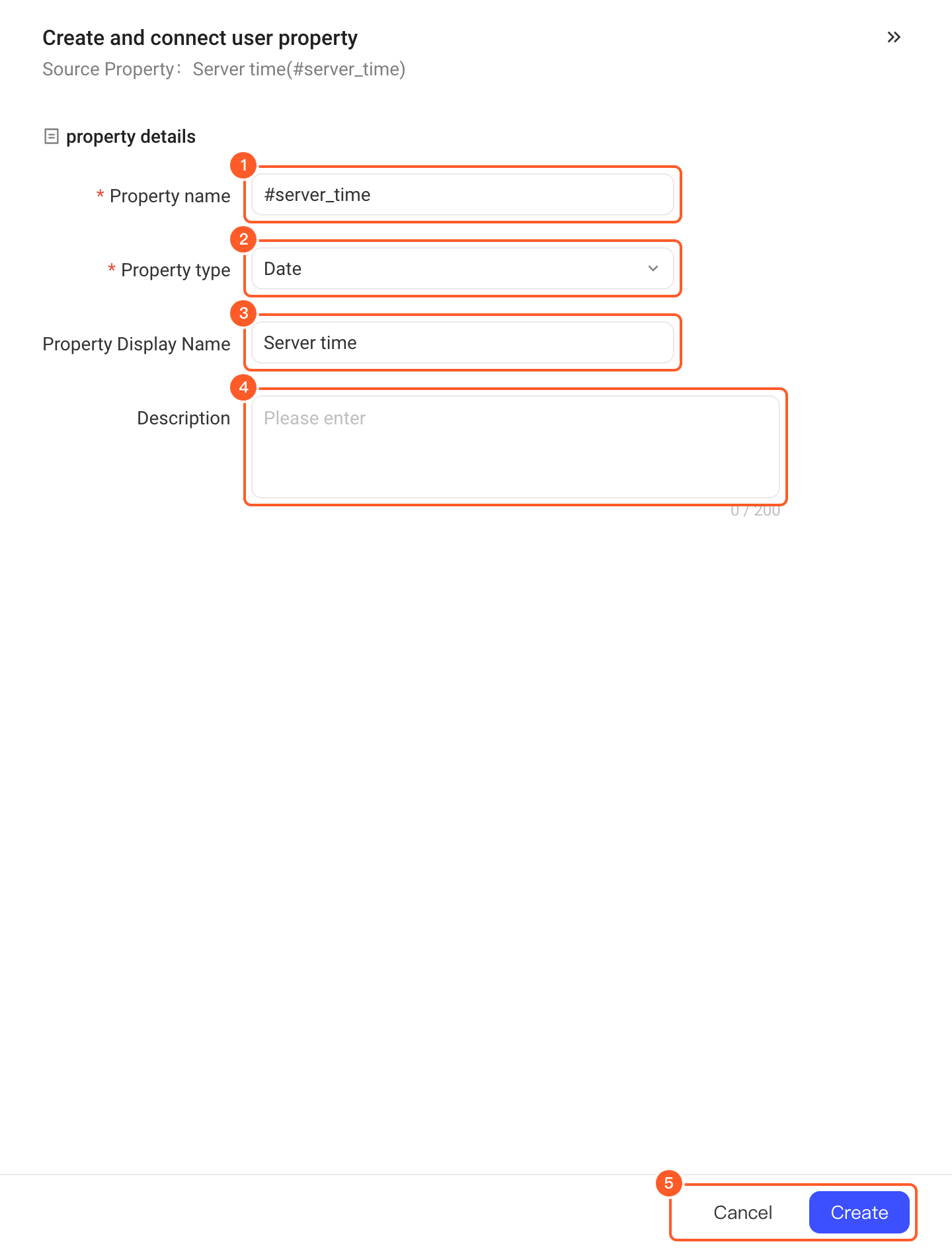

Creating and associating a super user property

3. Parameter limits​

  • A single project can have up to 10,000 model-mapping assets, regardless of type
