Model-mapping dimension table
This document describes only the fields specific to the Model-Mapping Dimension Table configuration and the logic specific to its asset list
For a general description of the model mapping assets configuration feature, see Model Mapping Assets Configuration
1. Basic information
- The AE system lets you add associated dimension information to existing property data to get dimension properties. For example, based on the product ID property, you can associate other dimension data to get information such as the product name, price, and type
- For Excel and CSV files, use the Data Table feature
- For external data sources, use the Model-Mapping Dimension Table in Model Mapping Assets Configuration

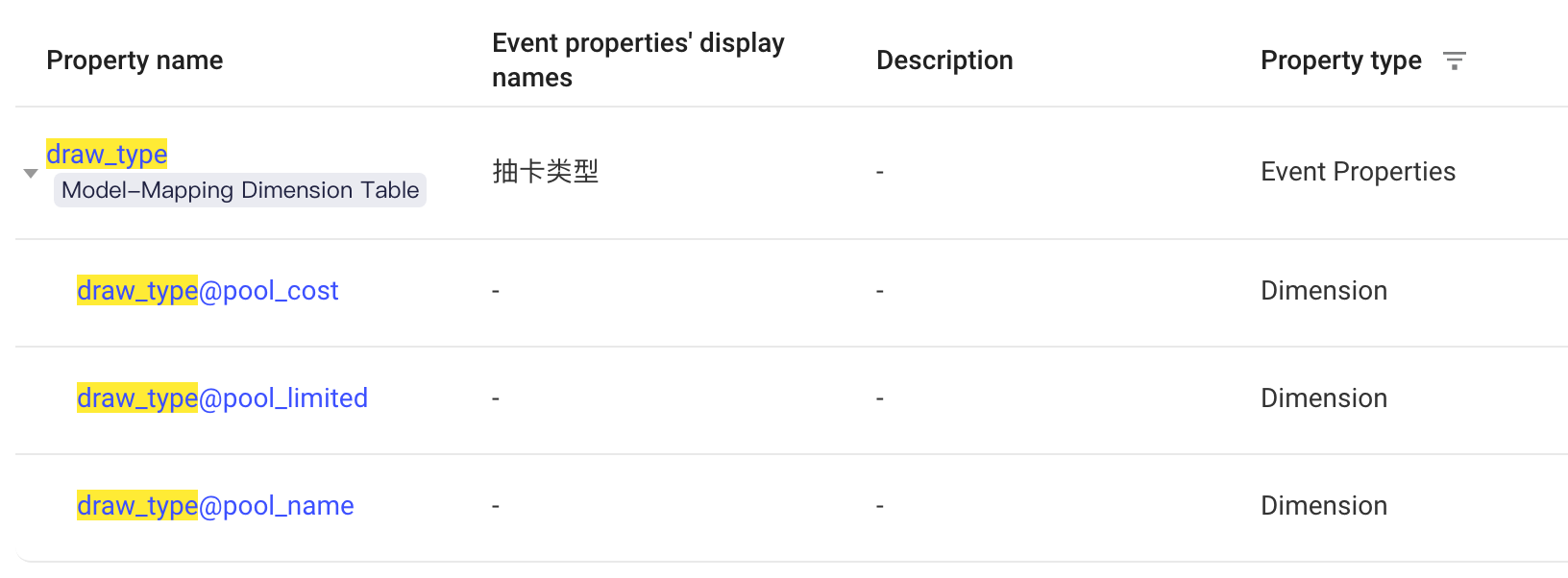

Model-mapping dimension table use case preview
2. Model-mapping configuration fields
2.1 Entity information
Includes three fields: entity property type, entity property, and entity column
🔵 Entity property type
For a property that needs associated dimension data, first determine whether it's an event property or a user property
Your selection in this field determines the options available in the Entity property field that follows

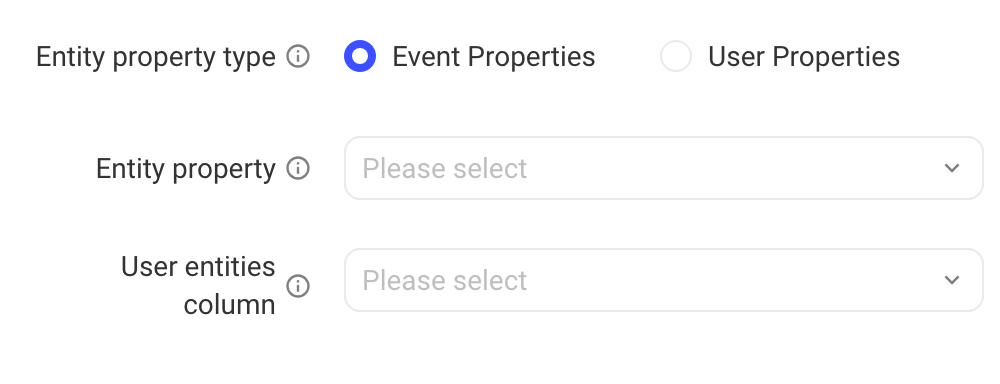

Entity information preview
🔵 Entity property
Select the property that needs associated dimension data. Supported types: String, Number, Time
When the entity property is of the String or Number type, the system reads the property value and finds the equal value in the data source to associate with it
When the entity property is of the Time type, the system truncates the time to the required granularity (day, hour, and so on), converts it to the String type, and then associates it with the values in the data source. In this case, an additional Time format field appears
🔵 Time format
Required only when the entity property is of the Time type
The following table lists the granularity options and the text format used for matching. The entity column in the data source must be formatted accordingly to avoid incorrect matches
| Time granularity | Text format for matching |
|---|---|
| Year | 2099 |
| Month | 2099-07 |
| Day | 2099-07-31 |
| Hour | 2099-07-31 09 |
| Minute | 2099-07-31 09:16 |
| Second | 2099-07-31 09:16:48 |
| Millisecond | 2099-07-31 09:16:48.270 |

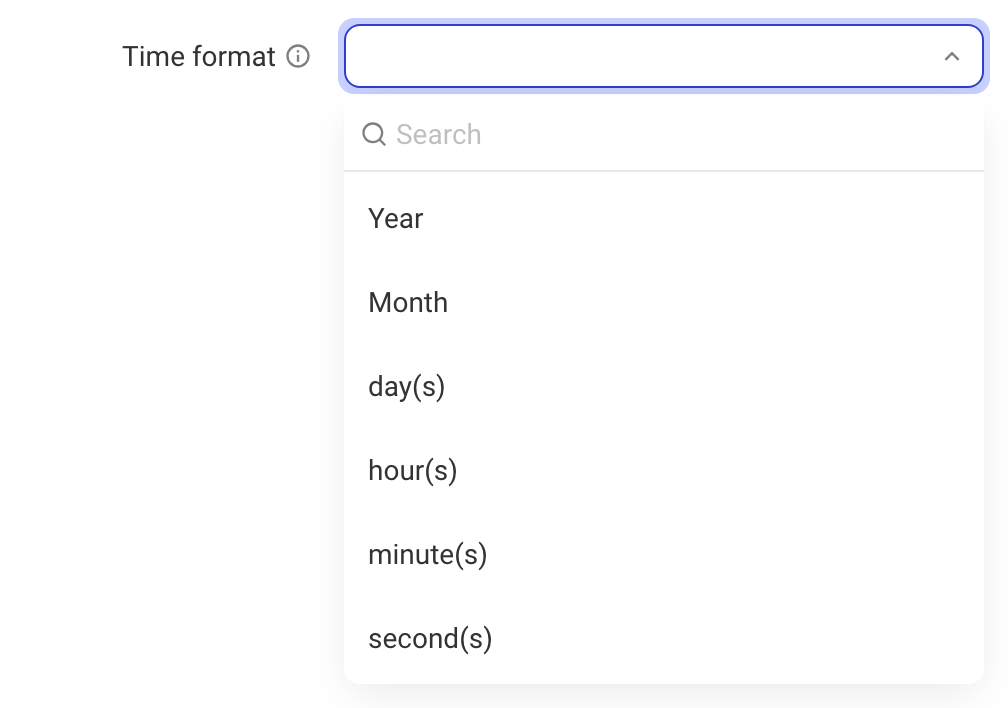

Time format options and formats preview
🔵 User entities column
Select the column in the data source to associate with the entity property
When the entity property type is String or Time, the data type of the entity column must be String
When the entity property type is Number, the data type of the entity column must be Number
3. Model-mapping asset list configuration
3.1 Asset data types
Assets of the model-mapping dimension table support the following types:
Number, String, Time, Boolean
For complex value acquisition scenarios, see Complex model-mapping configuration scenarios and SQL examples

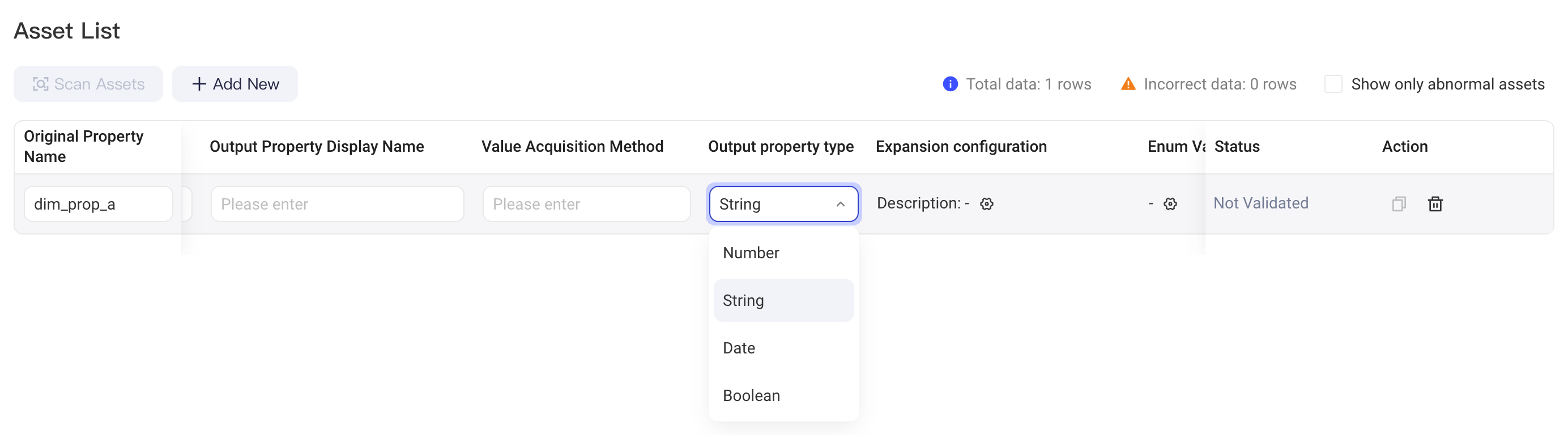

Model-mapping dimension table data type preview
