Create and manage workspace tables

Last updated 10/03/2026

Overview

Workspace tables are the core assets of the DataOps Platform and the scope of data that can be used directly in Flows of the current workspace, that is, the tables (Table) or views (View) created directly in Dev and Catalog of the DataOps Platform. They exist in both the development and production environments, support dual-environment release, lifecycle management, hot/cold data separation, and more, and are suitable for primary data storage.

In version 5.1, the former workspace tables, former system tables, and link views are displayed together.

This section describes in detail how to create, delete, edit, and query workspace tables, helping you quickly get started with creating workspace tables and Table Management.

Get to know Catalog

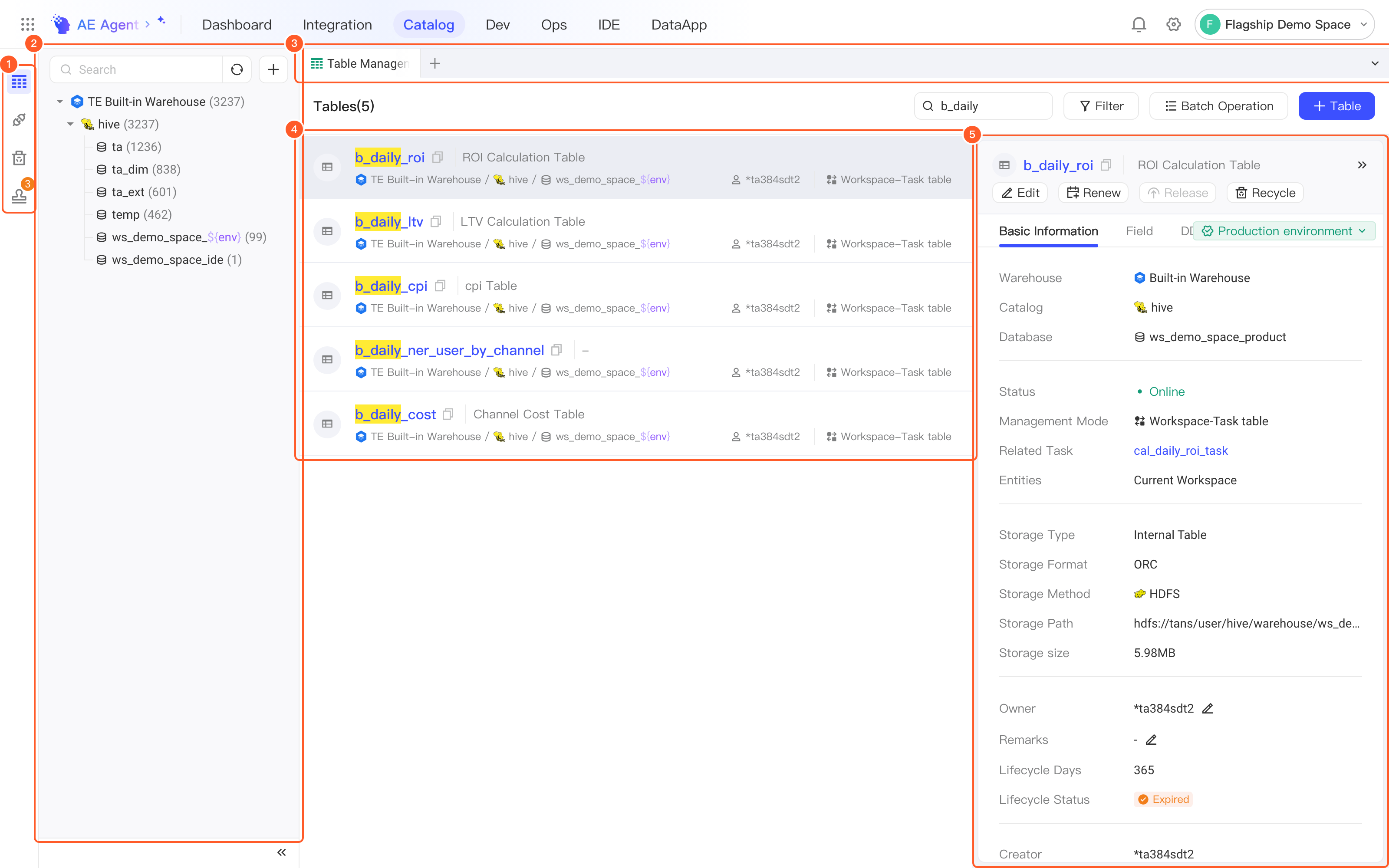

The new Catalog page has five functional areas: the feature switching area, dictionary area, tab area, page content area, and drawer area.

For an introduction to each area, see Catalog

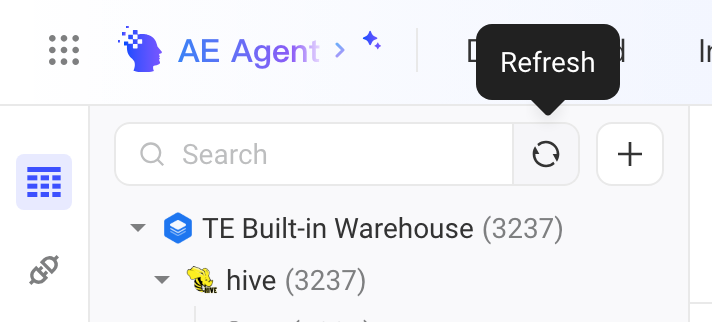

The top of the dictionary area supports search and refresh

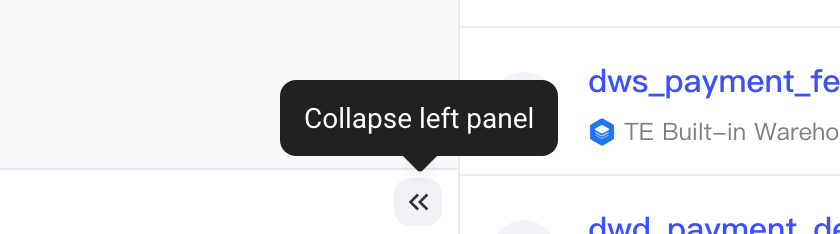

Click the button at the bottom of the dictionary area to collapse or expand it

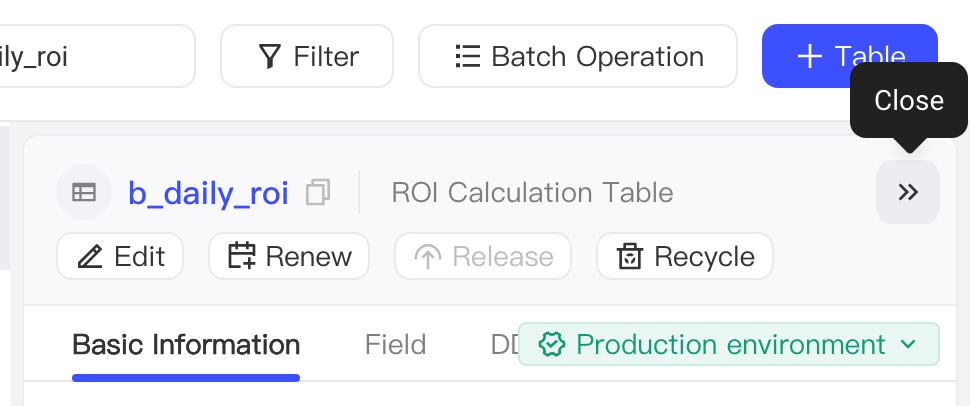

Click a blank area of a table to open the drawer, and click the button at the top of the drawer area to collapse it

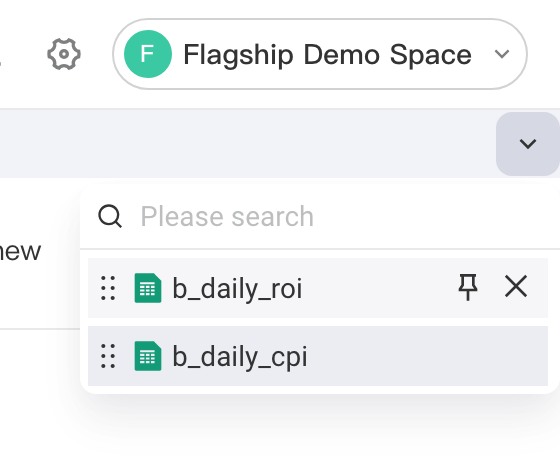

Click the drop-down button on the right of the tab area to pin and sort tabs

Create a workspace table

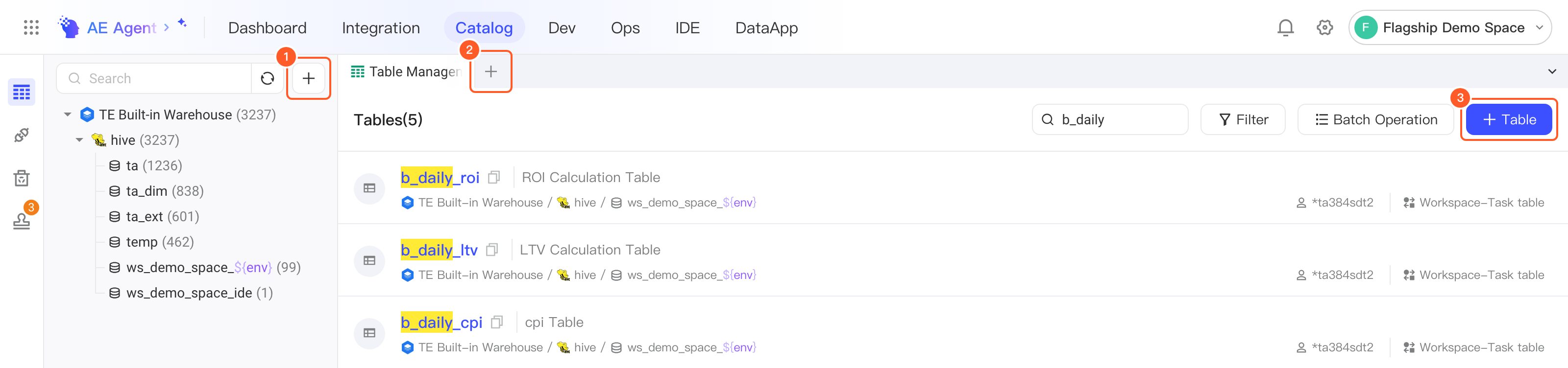

First, go to the Catalog page. You can create a workspace table in three ways on this page:

• Click the + button at the top of the dictionary area
• Click the + button at the end of the tab area
• Click + Table in the upper-right corner of the page content area

The Create New Table or View page opens

The management mode defaults to Workspace-Task table. You can choose a table type:

• Table: lets you define the table structure, storage format, storage method, and more for a physical table.
• View: lets you create a view based on base tables such as workspace task tables, system tables, and linked sources.

Note: In the content area of the Catalog page, view icons have a "👁️" so you can quickly tell them apart.

In Catalog, a newly created table goes into the development environment by default, and goes into the production environment after it's released. After a table or view is released, you can click Edit to switch to the development environment.

Create a table (Table)

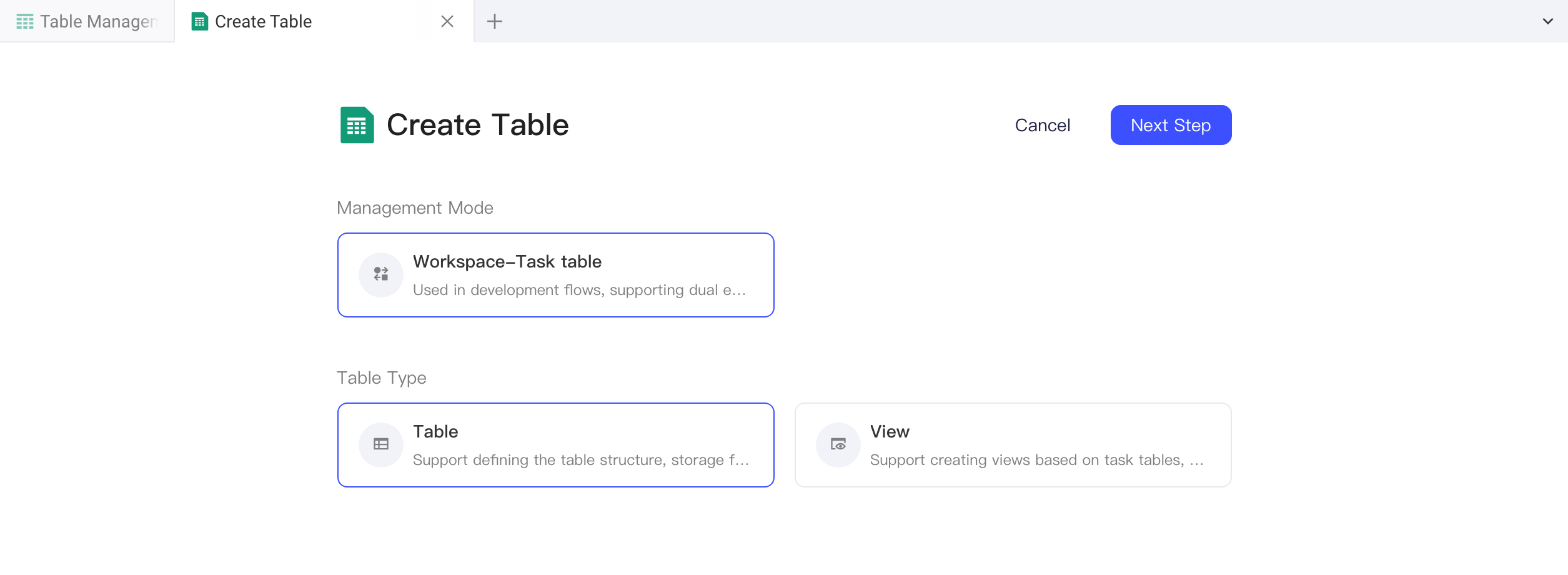

On the new workspace table page, select Table as the table type, then click Next to go to the new table page (development environment)

Mode switching

Tables support two creation methods: Form Mode and DDL Mode. The table schema is parsed in both directions: you can preview the DDL in Form Mode, or parse it in DDL Mode and go back to Form Mode to edit it again.

• Form Mode and DDL Mode are two views of the same configuration, and they share one set of settings
• You can create an Internal Table / External Table as needed (note: once a table is created, its table type can't be changed)
• Once an external table path is saved, it can't be changed
• In DDL Mode, you must Parse before you can switch to Form Mode

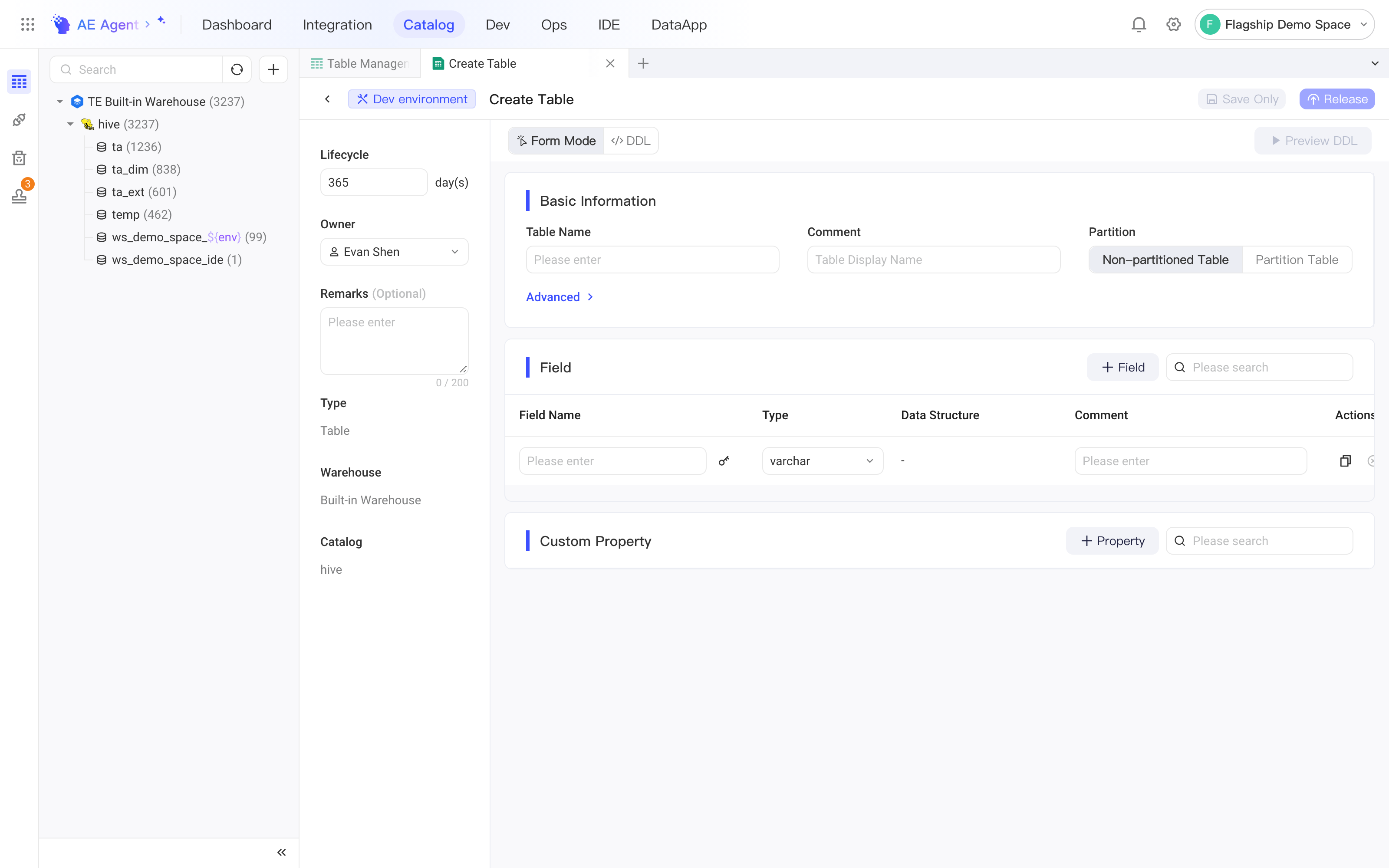

Form Mode

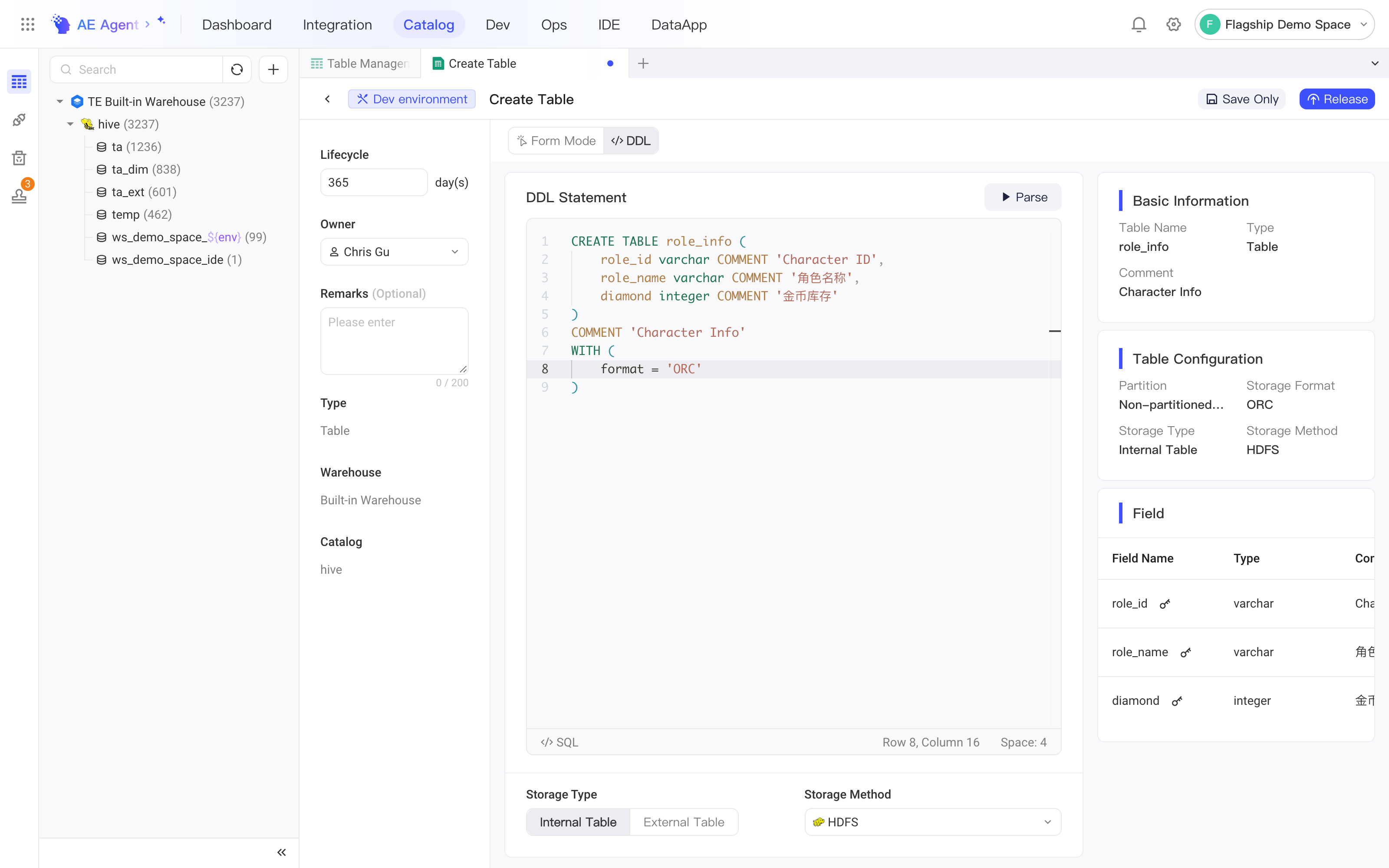

DDL Mode

Table configuration information

Basic table information
Field name	Description
Remarks	Remarks of the table
Lifecycle	The manageable lifecycle of the current workspace table
Owner	Owner of the workspace table
Basic Information
Field name	Description
Table Name	Unique within the space. Must start with a lowercase letter, can contain lowercase letters, numbers, and underscores, and can't exceed 80 characters
Type	Table, View (View isn't selectable yet)
Comment	Display name (comment) of the table

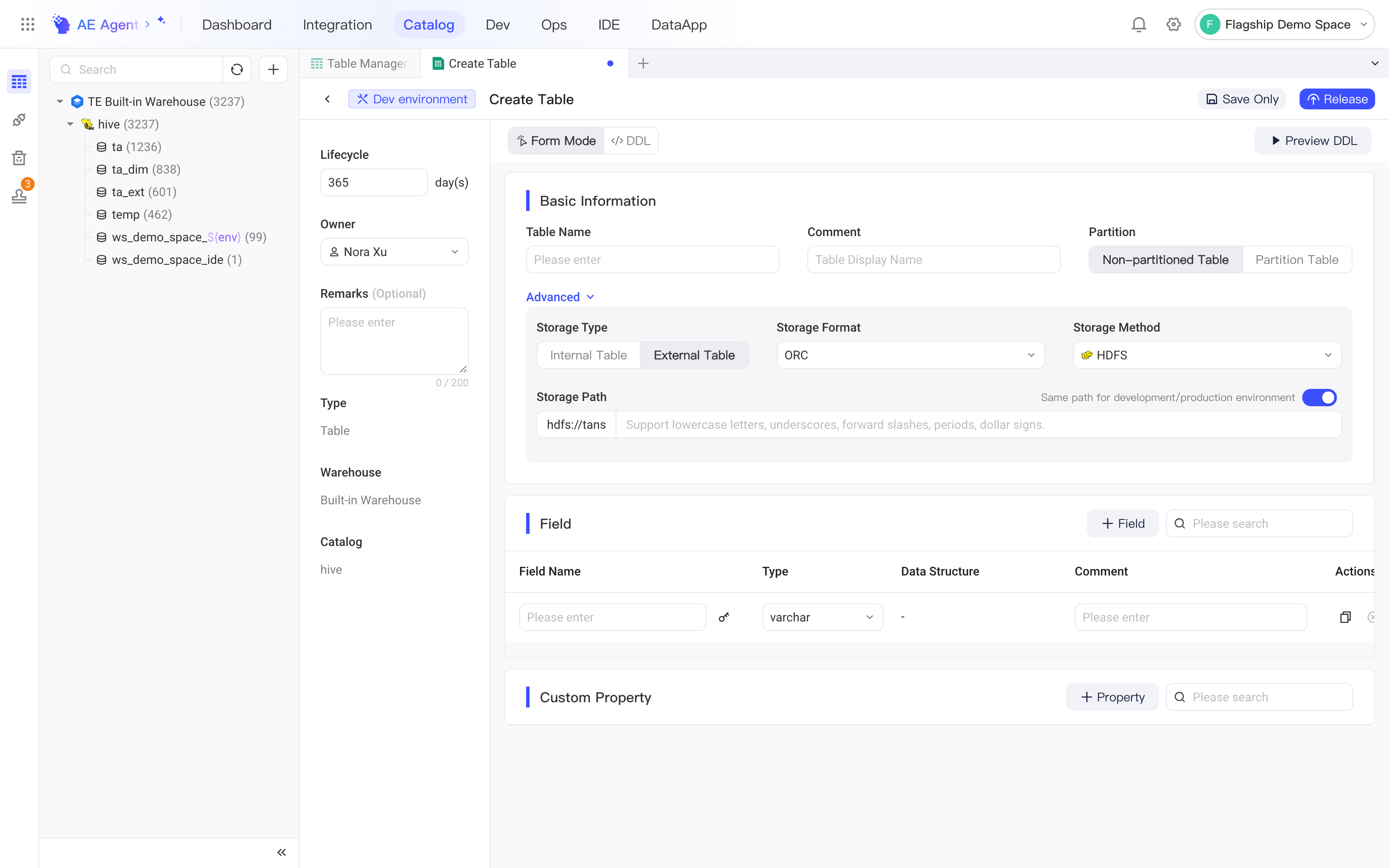

Table Configuration
Partition	Partition Table Non-partitioned Table
Storage Type	Internal Table External Table Once released, the table type can't be changed
Storage Method	HDFS Object storage S3 and OSS object storage are supported. To enable cloud object storage, contact ThinkingAI O&M staff.
Storage Format	Supports multiple storage formats, such as orc, parquet, text, csv, and json
Storage Path	Storage Type = Internal Table, Storage Method = Object storage: you can select a configured storage Bucket Storage Type = Internal Table, Storage Method = HDFS: stored in the AE built-in path Storage Type = External Table, Storage Method = Object storage: you need to customize the storage path Storage Type = External Table, Storage Method = HDFS: you need to customize the storage path

Note: Once a table is saved, its storage type, storage path, and so on are fixed and can't be changed.

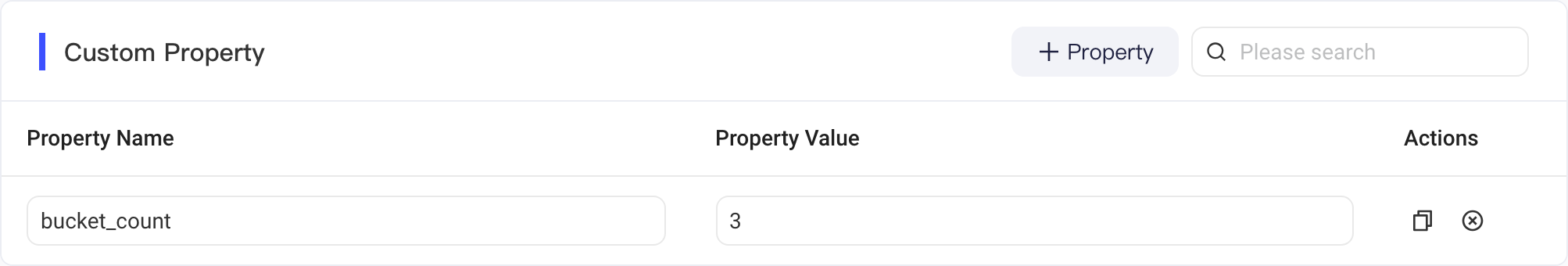

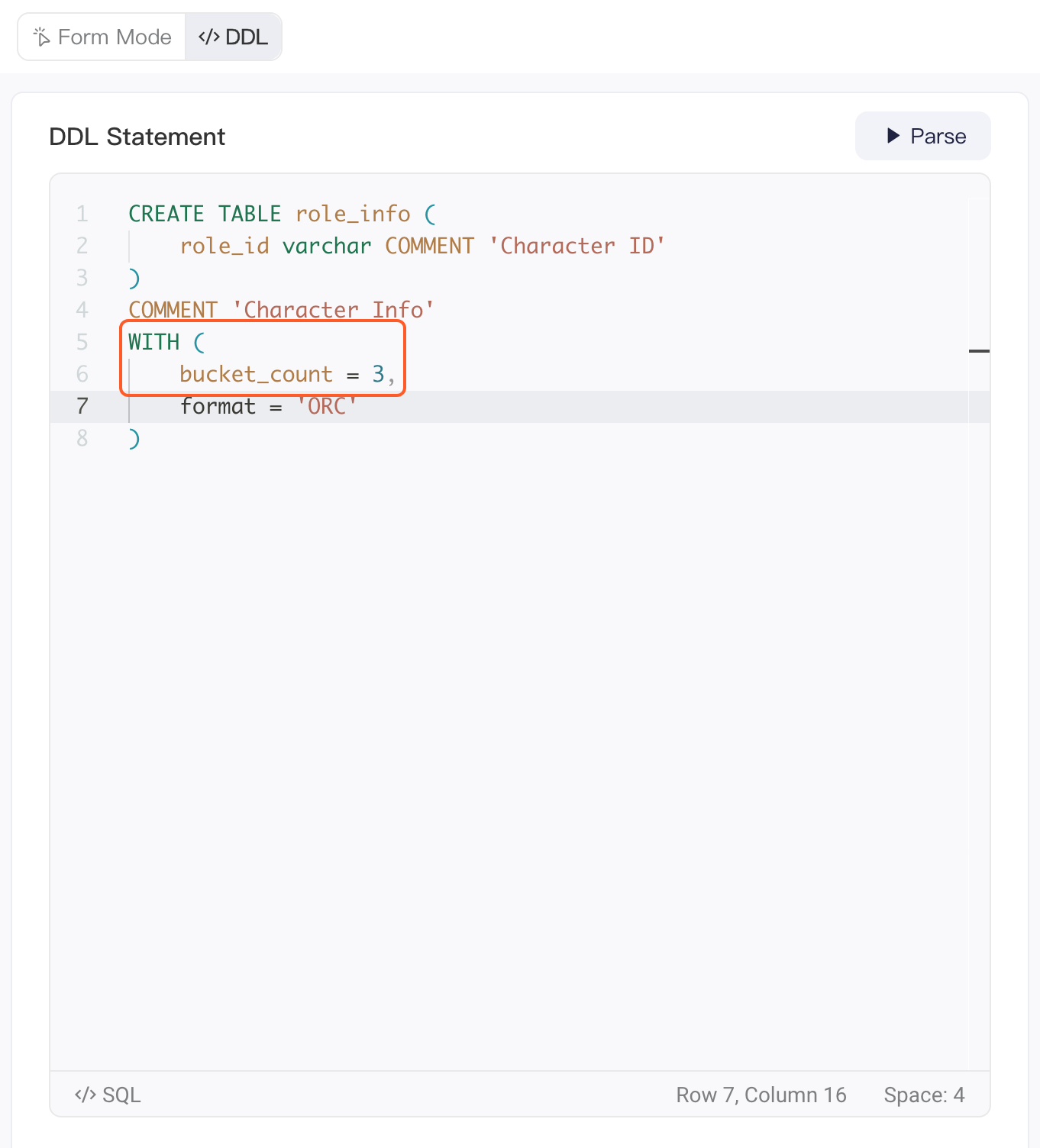

Custom table properties

You can customize some table properties. The allowlist is as follows:

"format"
"partitioned_by"
"external_location"
"location"
"bucket_count"
"bucketed_by"
"sorted_by"
"bucketing_version"

Of these, format, partitioned_by, external_location, and location are parsed by the system.

Save options

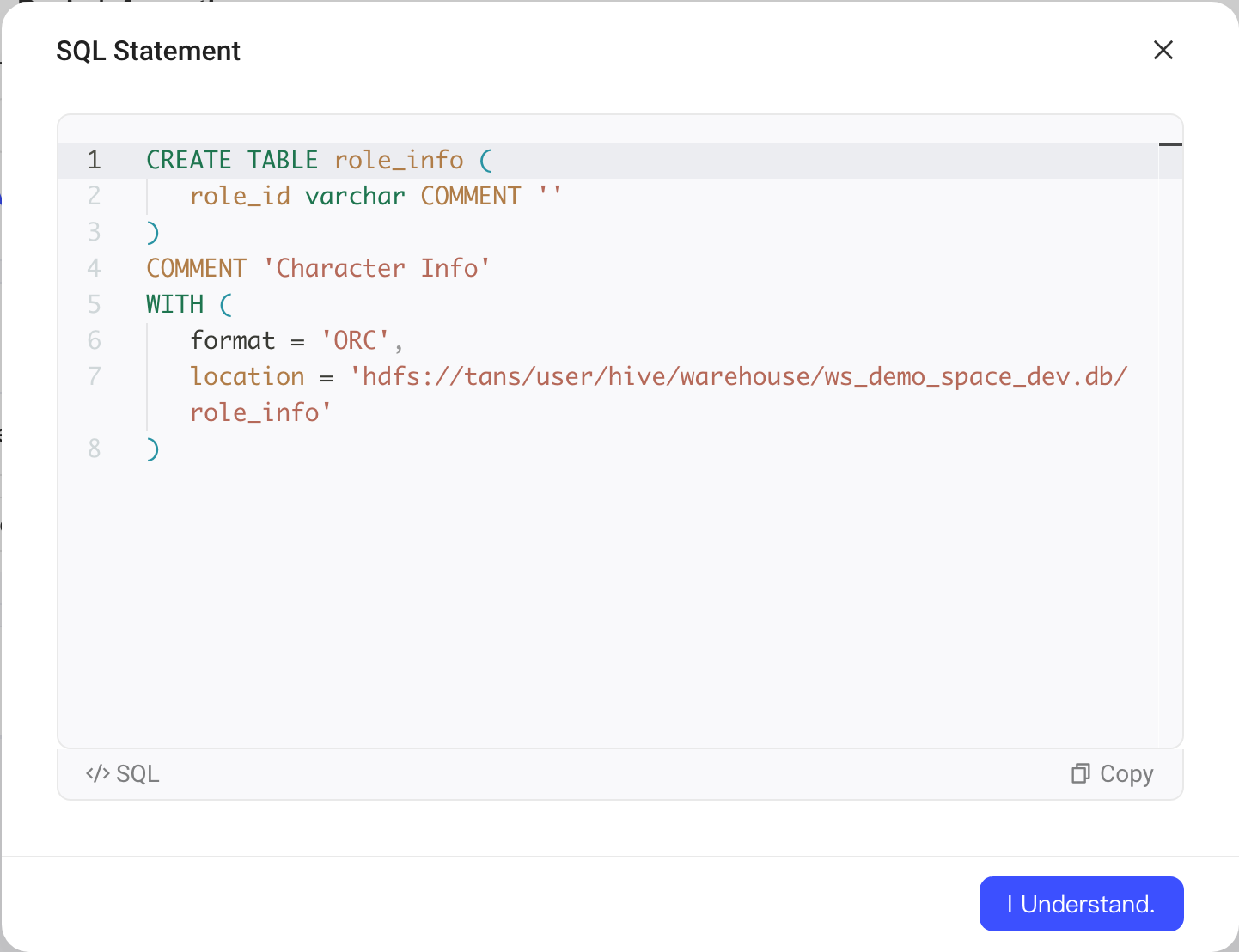

• If you use Form Mode: after you finish configuring the fields in Form Mode, click Preview DDL in the upper-right corner to view the table's DDL statement and confirm the table structure.

• If you use DDL Mode: after you finish the DDL statement, click Parse in the upper-right corner and confirm the table structure in the field area at the lower right of the page. You can also go back to Form Mode to edit it manually.

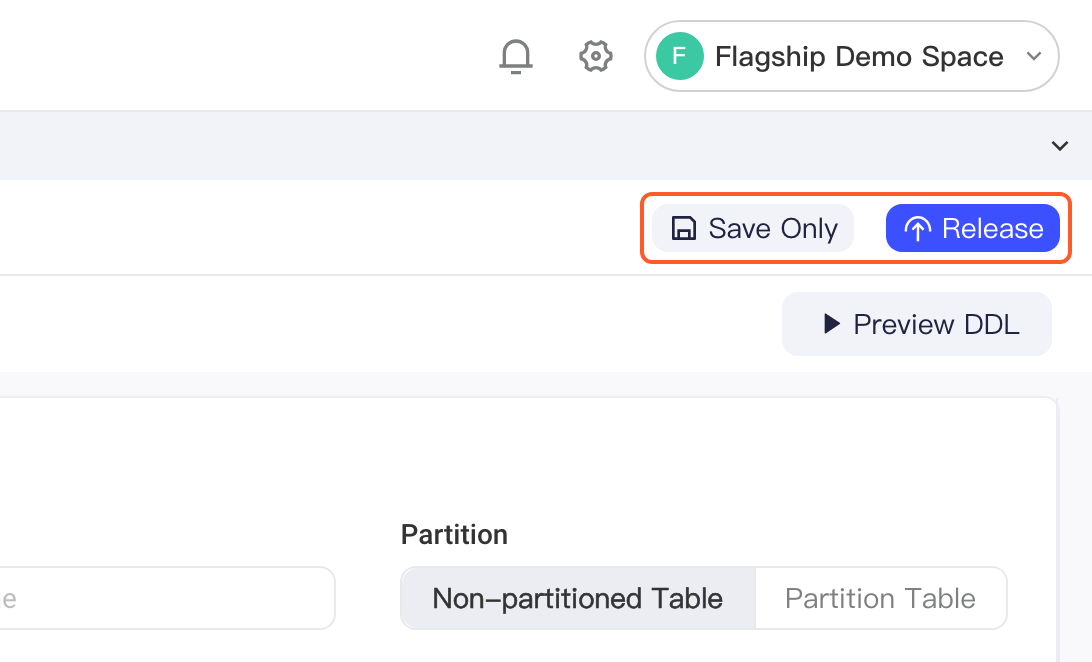

Finally, after you finish configuring the workspace table, click Save only or Release in the upper-right corner of the page to create the workspace table. The difference between them is:

• Save only: creates the workspace table only in the development environment. You can release the production environment workspace table later once the configuration is finalized

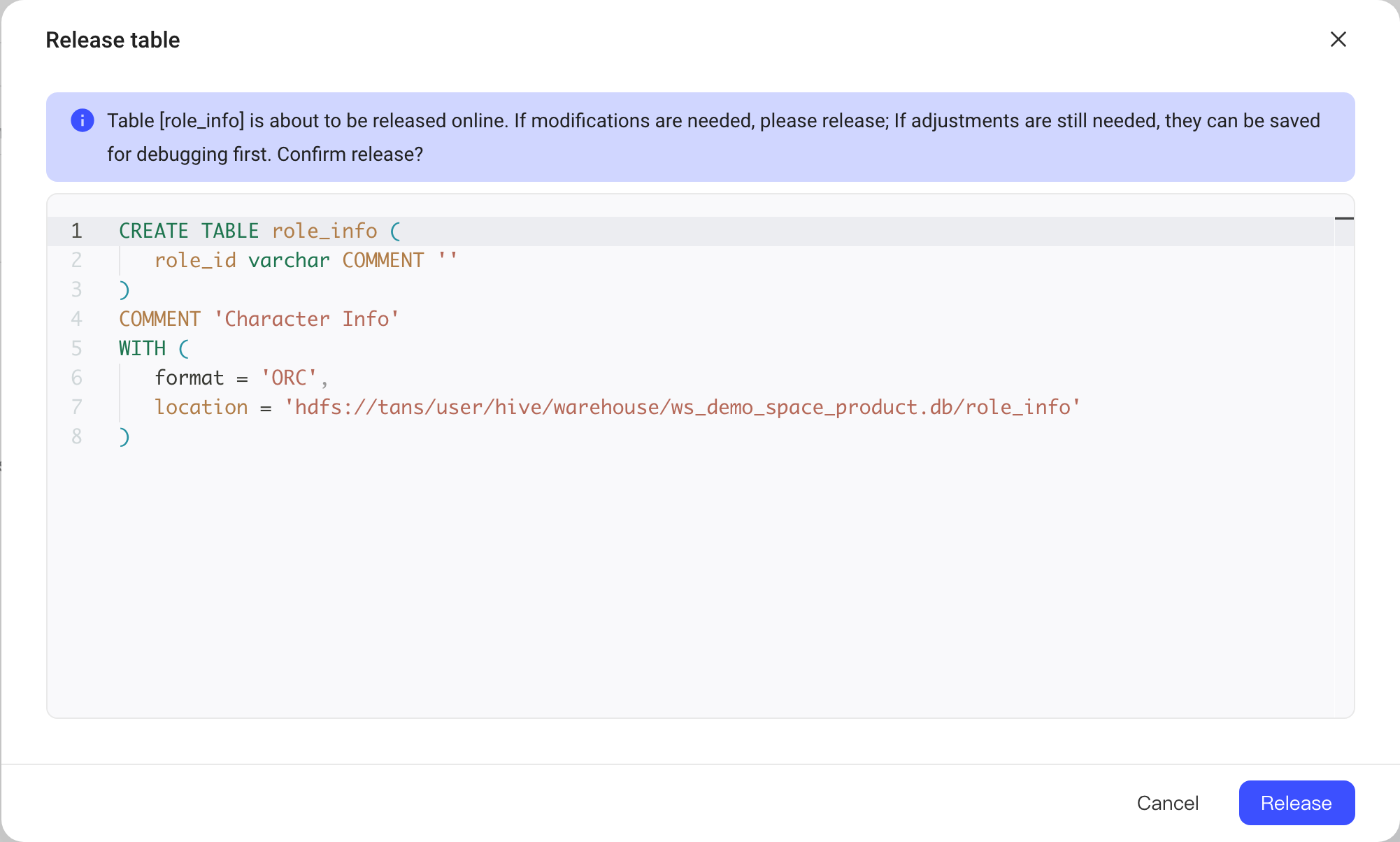

• Release: creates the workspace table in both the development and production environments at the same time. It's equivalent to saving and releasing, and is suitable when all settings are complete.

Create a view (View)

You can use tables in custom Catalogs mounted to AE Trino as base tables to create views that can be used in the workspace. Views can be used in all modules of the DataOps Platform, for example, queried in Flows or authorized to AE analytics modules.

Views can be created one at a time or in batches.

Create a single view

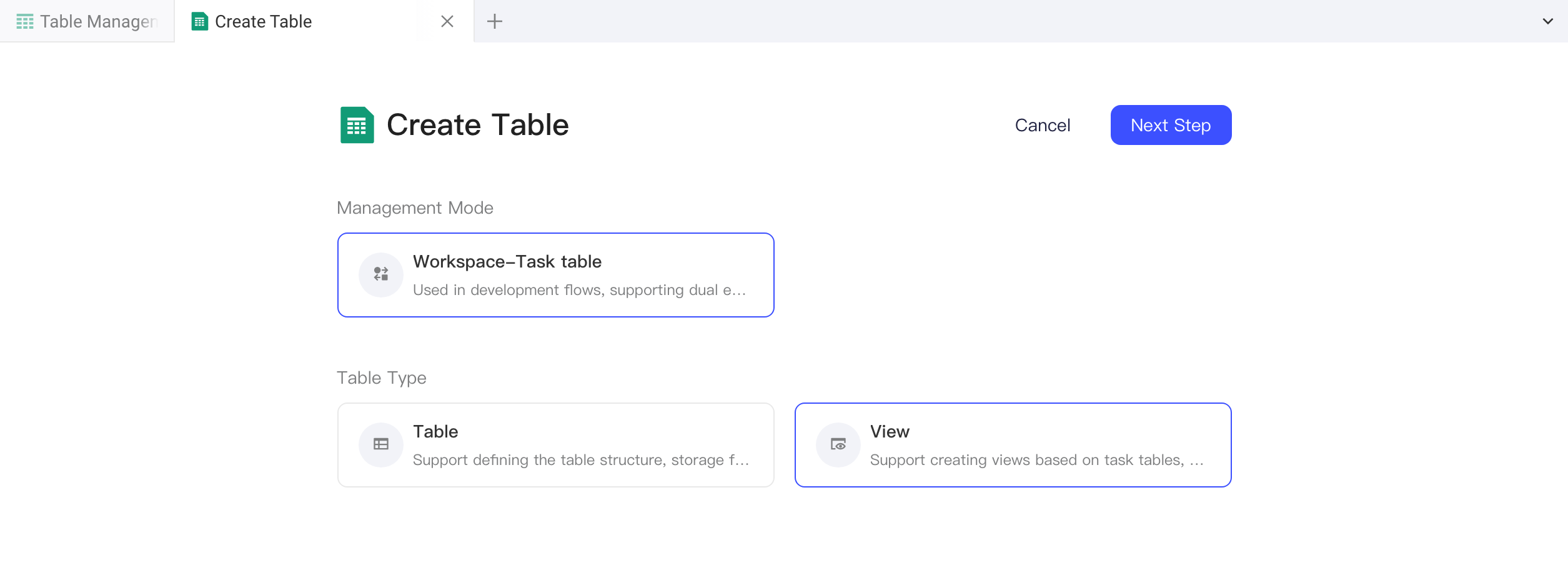

On the new workspace table page, select View as the table type, then click Next

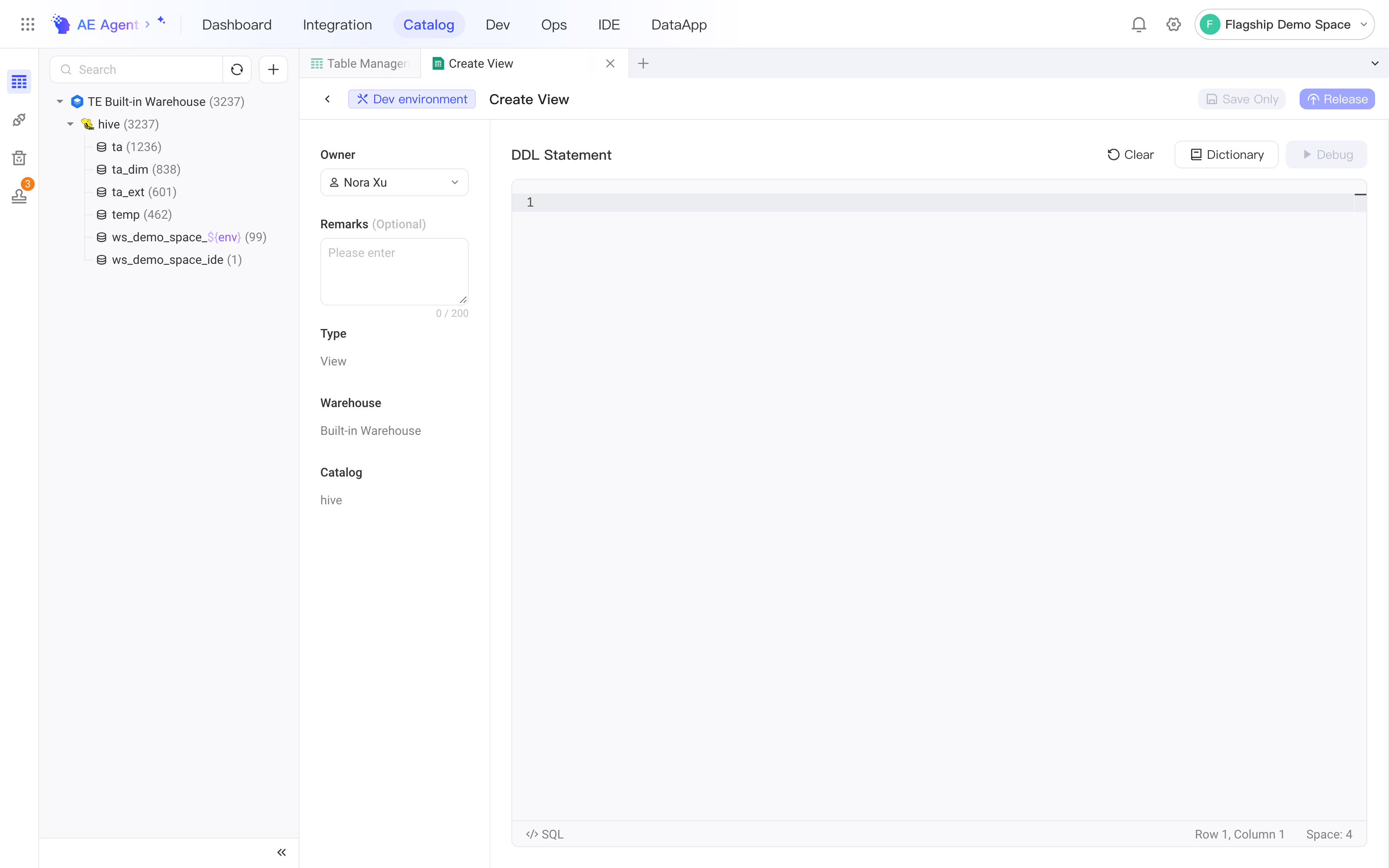

The new view page (development environment) opens:

You can create a view in two ways:

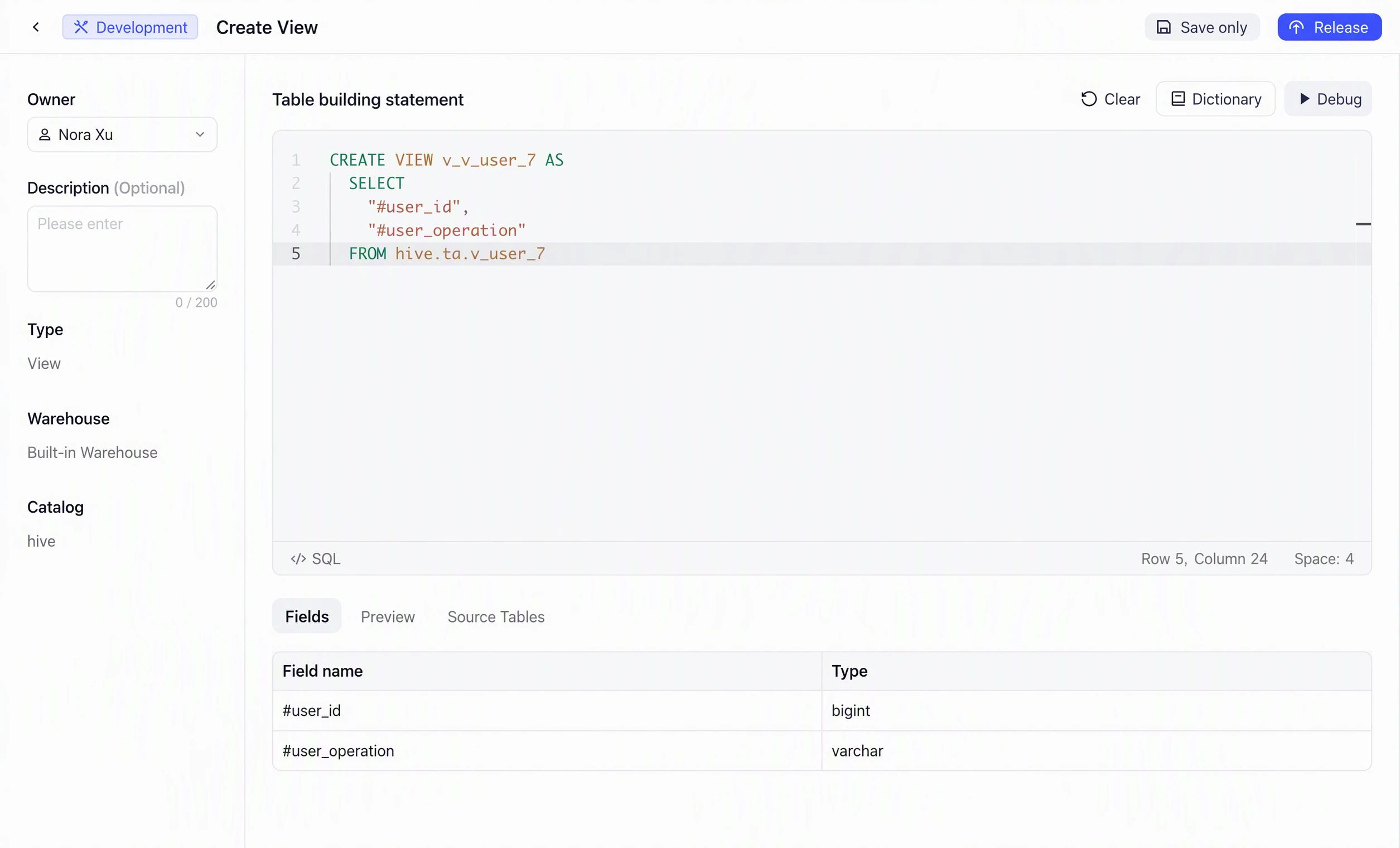

• Enter the DDL statement directly, then click Debug

• Click Dictionary in the upper-right corner to help you write the statement

  • In the dictionary area, select the catalog, source database, and source table (or enter the table's fully qualified name to parse it)

  Note: The catalog drop-down menu shows the display names of the Catalogs available for linking (the display name can be defined during configuration), the Catalog types, and their logos. If the Catalog you want to link doesn't appear in the drop-down menu, contact ThinkingAI staff to configure it.

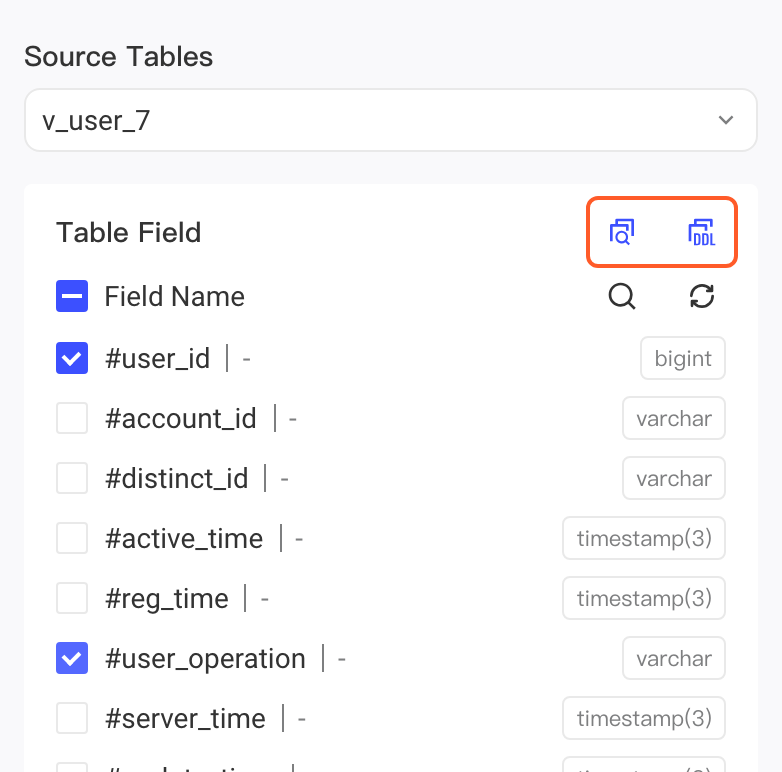

  • Then select the fields you need and click Generate Query in the upper-right corner of Table Field. The statement is automatically copied to your clipboard. Or click Generate DDL to copy it to the clipboard, then paste it into the DDL statement IDE to debug

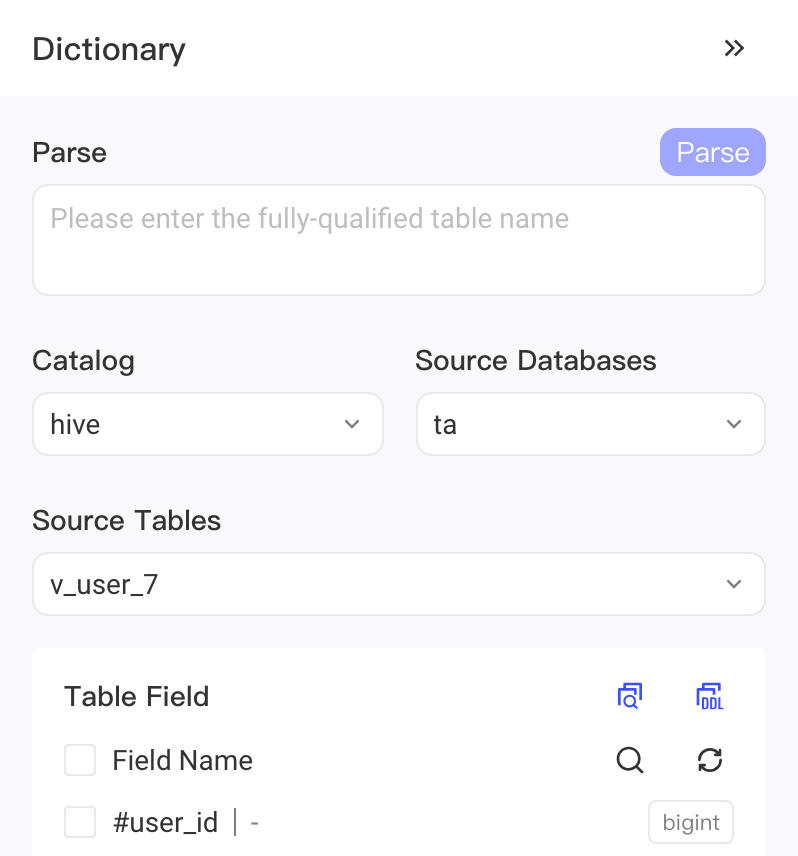

After you select a source, all fields of the table appear

Statements can be generated automatically

After debugging succeeds, the field preview, data preview, and source base tables appear for you to check.

You can implement more complex view structures by writing SQL statements.

Finally, you need to rename the view. In the generated statement, the name defaults to VIEW + source table name. Change it in the statement as needed

Note: A new view also becomes a workspace table in the workspace, so it can't have the same name as an existing workspace table.

After you complete all the steps above, click Save only or Release in the upper-right corner of the page to create the view. The difference between them is:

• Save only: creates the workspace table only in the development environment. You can release the production environment workspace table later once the configuration is finalized
• Release: creates the workspace table in both the development and production environments at the same time. It's equivalent to saving and releasing, and is suitable when all settings are complete.

Create in batches

Batch release, batch delete, and other operations on views are currently supported.

In this version, go to Link Management for further operations. See Batch create link views

Table Management

The page content area shows all workspace tables (tables and views) in the current workspace, and provides a rich set of operations to help you find and use tables quickly and efficiently.

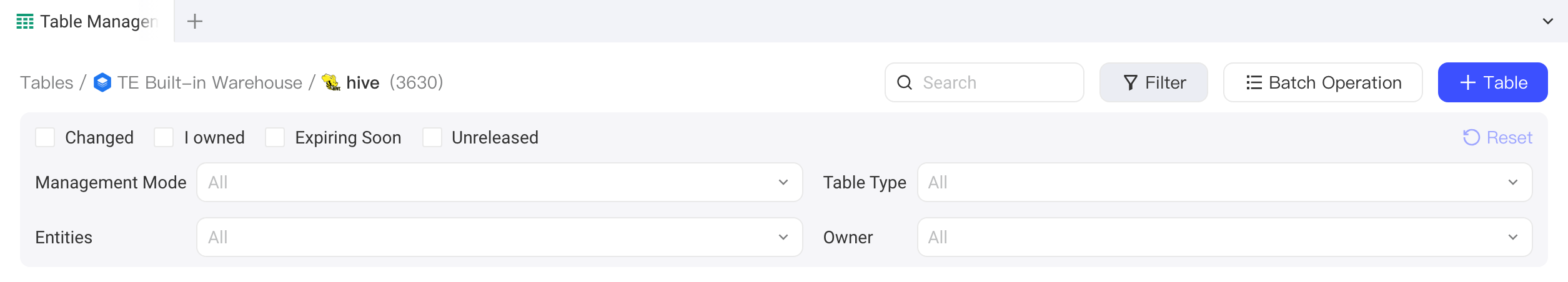

1. Click the funnel button at the top to filter. The following filter conditions are currently supported:

• Changed
• I owned
• Expiring Soon
• Unpublished
• Management Mode: Workspace-Task table, Workspace-IDE table, System table, External authorized table
• Table Type: Physical table, View
• Owning entity
• Owner

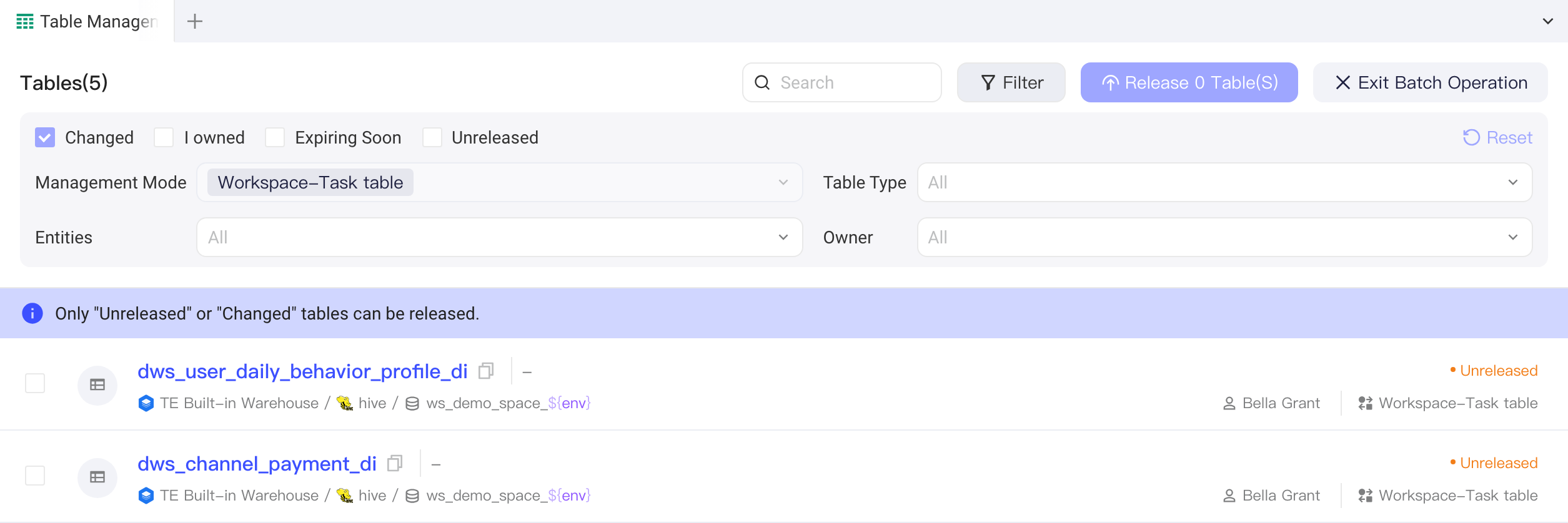

1. You can perform batch operations:

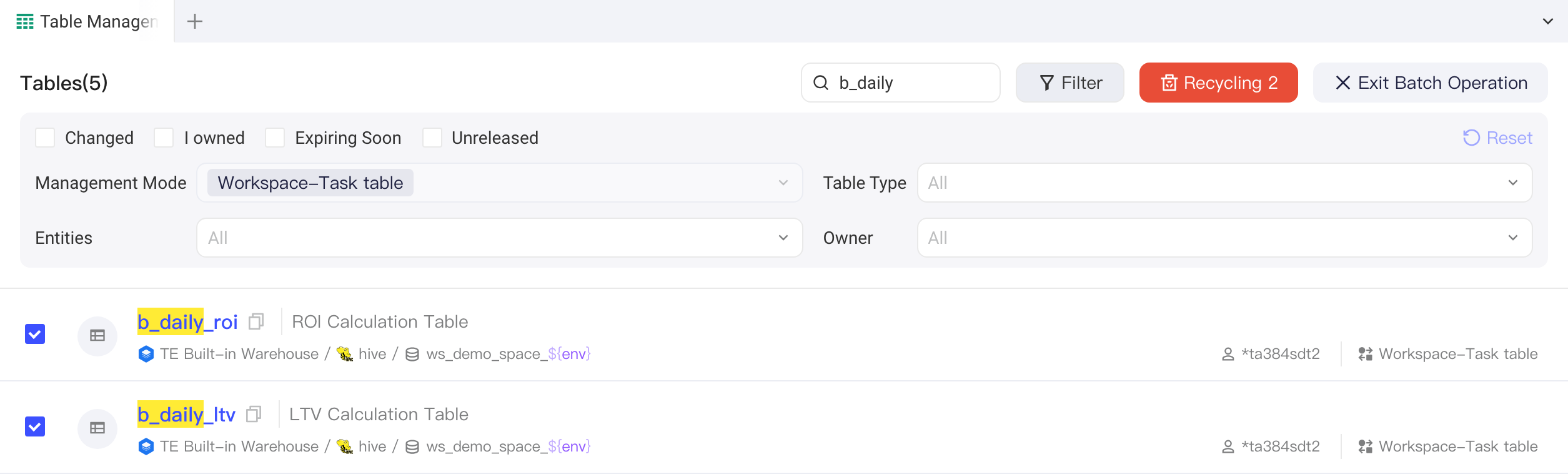

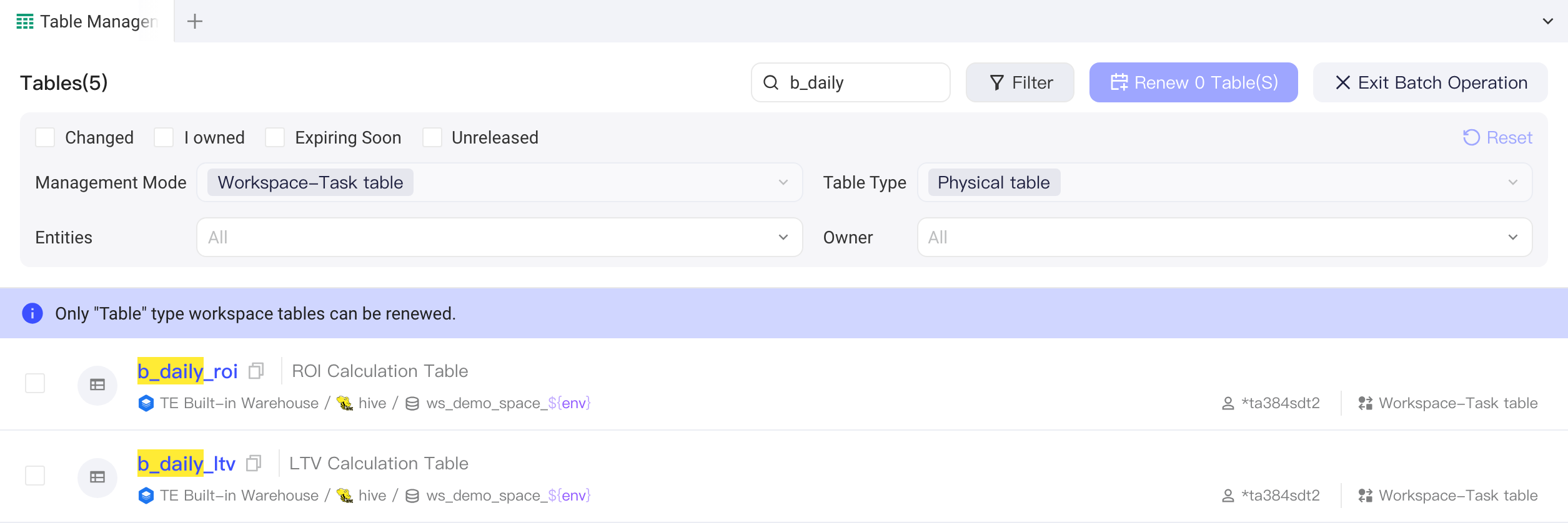

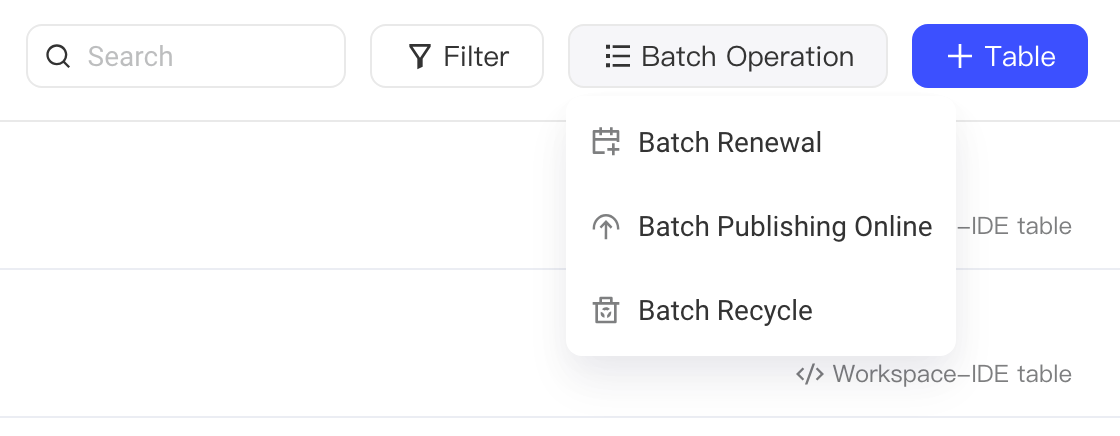

Hover over Batch Operation in the upper-right corner of the list to expand the batch operation menu. Batch renewal, batch release, and batch recycling are currently supported.

After you select a batch operation, the list shows the workspace tables on which that operation can be performed.

Note: Views don't need to be renewed

1. You can also use Search to search table names and table comments to find the workspace table you need

Workspace table details page

The page content area of Table Management offers two ways to view the details of a workspace table:

1. Click a blank area of the workspace table to open the drawer, where you can preview, renew, recycle, and quickly edit some basic information (table comment, owner, remarks). Click Edit to go to the details page.

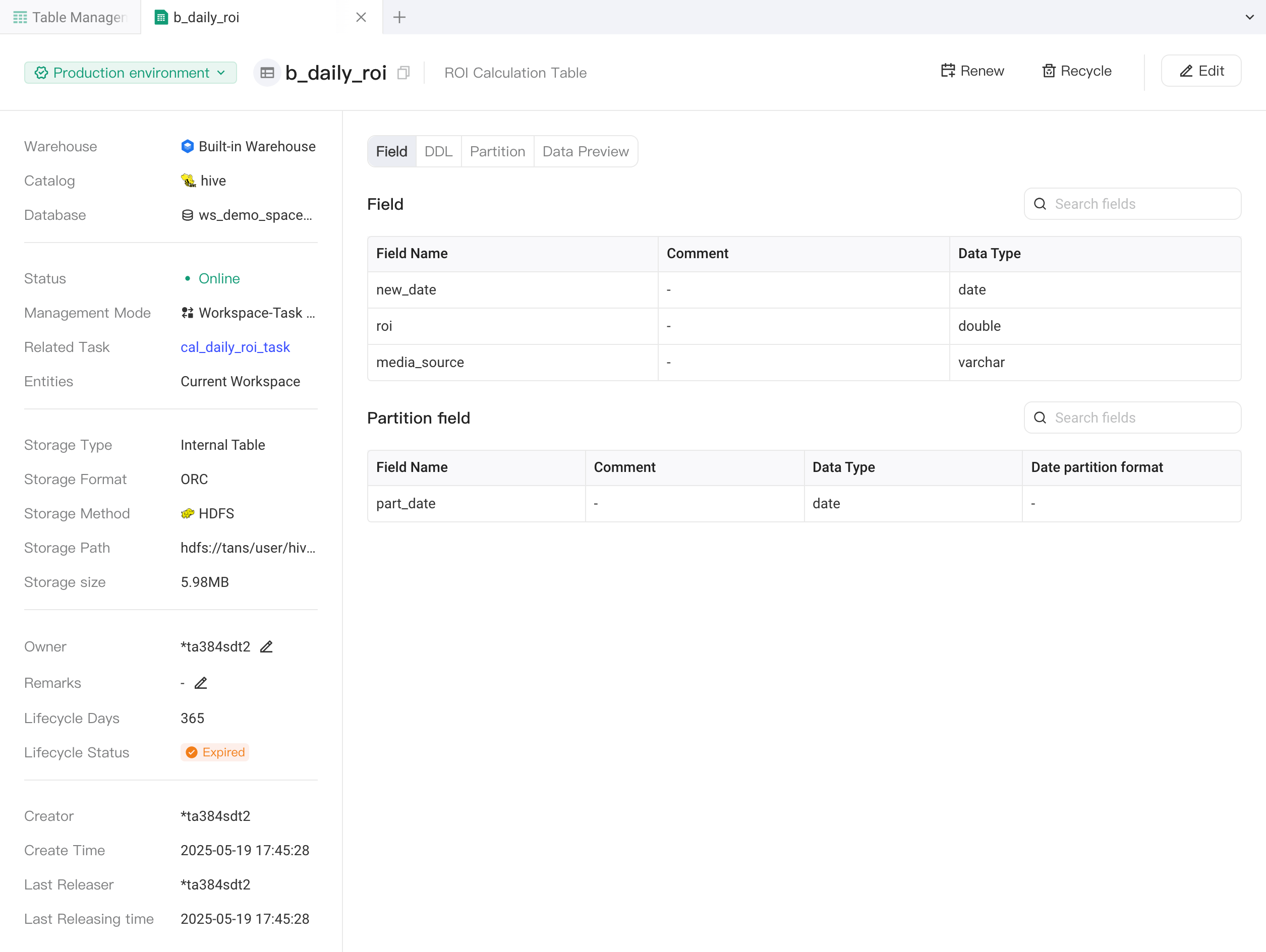

2. Click the table name to go to the details page. Different table types and statuses show different pages. Taking a standard workspace table as an example, the details page contains the following core information:

• Basic information: table name, environment, warehouse, catalog, database, and so on
• Field structure: column name, type, comment
• DDL statement: the table creation statement
• Data preview: the first N rows of data
• Partition details (for partitioned tables): partition data volume and storage size

Other table types may show different fields.

For Hive external partitioned tables, you can also configure automatic or manual partition sync. For details, see Partition table sync.

1. The table management display items are listed below:

Column name	Description
Table Name	Name of the workspace table. Click it to open the workspace table details page
Comment	User-defined description of the table
Warehouse name	Name of the warehouse that the workspace table belongs to
Catalog name	Name of the catalog that the workspace table belongs to
Database name	Name of the database that the workspace table belongs to
Status	Release status of the workspace table: Online or Not online
Management Mode	Defaults to Workspace-Task table
Related task name	Tasks related to the workspace table
Owning entity name	The space entity that the workspace table belongs to
Storage Type	Internal Table or External Table
Storage Format	Storage format of the workspace table, such as ORC
Storage Method	Storage method of the workspace table, such as HDFS
Storage Path	Storage path of the workspace table
Lifecycle Status	Lifecycle status of the workspace table: Normal or Expiring Soon. Filterable (a table enters the Expiring Soon status when its remaining lifecycle is less than 7 days; if the table's maximum lifecycle is less than 7 days, it always stays in the Expiring Soon status)
Lifecycle Days	Can be renewed
Owner	Owner of the workspace table
Remarks	User-defined remarks
Creator	Creator of the workspace table
Created at	Creation time of the workspace table
Last Releaser	Last releaser of the workspace table
Last Releasing time	Time of the workspace table's last release
Field preview	Field list of the workspace table
DDL	DDL statement of the workspace table
Data preview	Shows the data in the workspace table. Supports refresh
Usage scenarios (hidden by default)	Which scenarios in the DataApp module the workspace table can be used in
Create Time (hidden by default)	Creation time of the workspace table
Action - Edit	Click to open the workspace table edit page
Action - Renew	Click to manually renew the workspace table and refresh its lifecycle days
Action - Release	Click to release a workspace table that has changes or hasn't been released
Action - Recycle	Click to recycle the workspace table. Recycled workspace tables can be viewed in the workspace table recycle bin, where you can restore or permanently delete them

1. The view management display items are listed below:

Column Name	Description
View Name	Name of the created view. Click the jump button to open the view details page
Comment	User-defined description of the view
Warehouse name	Name of the warehouse that the workspace table belongs to
Catalog name	Name of the catalog that the workspace table belongs to
Database name	Name of the database that the workspace table belongs to
Status	Release status of the view: Online or Not online
Management Mode	Defaults to Workspace-Task table
Owner	Owner of the view
Remarks	User-defined remarks
Lifecycle Status	Lifecycle status of the workspace table. Defaults to Normal for views
Creator	Creator of the workspace table
Created at	Creation time of the workspace table
Last Modifier	Last modifier of the workspace table
Last Modified Time	Time of the workspace table's last modification
Field preview	Field list of the workspace table
DDL	DDL statement of the workspace table
Data preview	Shows the data in the workspace table. Supports refresh
Source Tables	Fully qualified name of the source base table. Click it to open the table details page
Action - Edit	Click to open the link view edit page
Action - Release	Click to release an unreleased link view
Action - Recycle	Click to recycle the link view. Recycled views can be viewed in the workspace table recycle bin of the Dev module, where you can restore or permanently delete them
