Preset properties

Last updated 10/05/2026

1. Preset properties carried by all events

The following preset properties are carried by all events in the iOS SDK, including auto-tracked events

Property name	Display name	Property type	When collected	Description
#ip	IP address	Text	Collected on the server	The user's IP address, which AE uses to get the user's geographic location
#country	Country	Text	Collected on the server	The user's country, generated from the IP address
#country_code	Country code	Text	Collected on the server	The country code of the user's country (ISO 3166-1 alpha-2, that is, two uppercase letters), generated from the IP address
#province	Province	Text	Collected on the server	The user's province, generated from the IP address
#city	City	Text	Collected on the server	The user's city, generated from the IP address
#os_version	OS Version	Text	Collected once at initialization	The OS version number, such as 15.6.1
#manufacturer	Device manufacturer	Text	Collected once at initialization	Manufacturer of the user's device, such as Apple
#os	OS	Text	Collected once at initialization	Such as iOS
#device_id	Device ID	Text	Collected once at initialization	The user's device ID. On iOS, the user's IDFV or UUID is used
#device_type	Device Type	Text	Collected once at initialization	Device type, such as iPhone and iPad
#screen_height	Screen height	Numeric	Collected once at initialization	Screen height of the user's device, such as 667
#screen_width	Screen width	Numeric	Collected once at initialization	Screen width of the user's device, such as 375
#device_model	Device model	Text	Collected once at initialization	Model of the user's device, such as iPhone12,8
#app_version	App version	Text	Collected once at initialization	The version of your app
#bundle_id	Unique app identifier	Text	Collected once at initialization	Bundle name
#lib	SDK type	Text	Collected when the event occurs	The type of SDK you integrated, such as Android and iOS
#lib_version	SDK version	Text	Collected when the event occurs	The version of the SDK you integrated
#network_type	Network status	Text	Collected once at initialization and again when the network status changes	Network status when the event is uploaded, such as WIFI, 3G, and 4G
#carrier	Network carrier	Text	Collected once at initialization	Network carrier of the user's device, such as China Mobile and China Telecom. This field is not collected on iOS 16.4 and later
#zone_offset	Time Zone Offset	Numeric	Collected when the event occurs	Offset in hours of the data time relative to UTC
#install_time	App install time	Time	Collected once at initialization	Time when the user installed the app; the value comes from the system
#simulator	Whether it is a simulator	Boolean	Collected once at initialization	Whether the device is a simulator: true/false
#ram	Device memory status	Text	Collected when the event occurs	Current available memory and total memory of the user's device in GB, such as 1.4/2.4
#disk	Device storage status	Text	Collected when the event occurs	Current available storage and total storage of the user's device in GB, such as 30/200
#fps	Device FPS	Numeric	Collected when the event occurs	Current frame rate (frames per second) of the user's device, such as 60 (not collected by default in SDK v3.2.0 and later)
#system_language	System language	Text	Collected when the event occurs	System language of the user's device (ISO 639-1, that is, two lowercase letters), such as zh and en
#relaunched_in_background	Whether the app is in the background	Boolean	Collected when the event occurs	When the APP is launched in the background, this property is YES in the collected events. When the APP is launched normally, the collected events don't contain this property.

2. Preset properties of auto-tracked events

The following preset properties are specific to each auto-tracked event

• Preset properties of the APP start event (ta_app_start)

Property name	Display name	Property type	Description
#resume_from_background	Resumed from background	Boolean	Indicates whether the APP was opened or woken from the background. true means it was woken from the background, and false means it was opened directly
#start_reason	Launch reason	Text	The reason the APP was launched, as a JSON string. Currently, deeplink, push, and 3D Touch launch reasons can be collected. Sample data: {url:"thinkingdata://","data":{}}
#background_duration	Background duration	Number	How long the app stays in the background between two start events, in seconds

• Preset properties of the APP end event (ta_app_end)

Property name	Display name	Property type	Description
#duration	Event duration	Numeric	The duration of this APP visit (from start to end), in seconds

• Preset properties of the APP view page event (ta_app_view)

Property name	Display name	Property type	Description
#title	Page Title	Text	The title of the View Controller, whose value is the value of the controller.navigationItem.title property
#screen_name	Page name	Text	The class name of the View Controller
#url	Page URL	Text	The URL of the current page. Call getScreenUrl to set the URL
#referrer	Referrer URL	Text	The URL of the page before the jump. That page must call getScreenUrl to set the URL

• Preset properties of the APP control click event (ta_app_click)

Property name	Display name	Property type	Description
#title	Page Title	Text	The title of the View Controller, whose value is the value of the controller.navigationItem.title property
#screen_name	Page name	Text	The class name of the View Controller
#element_id	Element ID	Text	The ID of the control, which must be set with thinkingAnalyticsViewID
#element_type	Element type	Text	The type of the control
#element_selector	Element selector	Text	The concatenation of the control's viewPath
#element_position	Element position		Position of the control. Exists only when the control type is UITableView or UICollectionView, and indicates the position where the control was clicked. The value is section number(Section):row number(Row)
#element_content	Element content	Text	The content on the control

• Preset properties of the APP crash event (ta_app_crash)

Property name	Display name	Property type	Description
#app_crashed_reason	Exception information	Text	String. Records the stack trace at the time of the crash

3. Other preset properties

In addition to the preset properties above, some preset properties are recorded only after you call the corresponding APIs:

Property name	Display name	Property type	Description
#duration	Event duration	Numeric	Requires calling the timing function timeEvent. Records how long the event lasts, in seconds
#background_duration	Background duration	Numeric	Requires calling the timing function timeEvent. Records how long the app stays in the background during the event, in seconds

4. Get preset properties

In v2.7.0 and later, you can call getPresetProperties to get preset properties.

When server-side tracking needs some preset properties from the app, you can use this method to get them on the app side and then pass them to the server.

Objective-C

//Get the property object
TDPresetProperties *presetProperties = [TDAnalytics getPresetProperties];

//Generate event preset properties
NSDictionary *properties = [presetProperties toEventPresetProperties];
/*
   {
        "#carrier": "中国电信",
        "#os": "iOS",
        "#device_id": "A8B1C00B-A6AC-4856-8538-0FBC642C1BAD",
        "#screen_height": 2264,
        "#bundle_id": "com.sw.thinkingdatademo",
        "#manufacturer": "Apple",
        "#device_model": "iPhone7",
        "#screen_width": 1080,
        "#system_language": "zh",
        "#os_version": "10",
        "#network_type": "WIFI",
        "#zone_offset": 8,
    }
*/

//Get a specific preset property
NSString *bundle_id = presetProperties.bundle_id;//Package name
NSString *os = presetProperties.os;//OS type, such as iOS
NSString *system_language = presetProperties.system_language;//Phone system language
NSNumber *screen_width = presetProperties.screen_width;//Screen width
NSNumber *screen_height = presetProperties.screen_height;//Screen height
NSString *device_model = presetProperties.device_model;//Device model
NSString *device_id = presetProperties.device_id;//Unique device identifier
NSString *carrier = presetProperties.carrier;//Carrier of the phone's SIM card; on dual-SIM phones, the carrier of the primary SIM card is used
NSString *manufacture = presetProperties.manufacturer;//Phone manufacturer, such as Apple
NSString *network_type = presetProperties.network_type;//Network type
NSString *os_version = presetProperties.os_version;//OS version
NSNumber *zone_offset = presetProperties.zone_offset;//Time zone offset

Swift

let presetProperties = TDAnalytics.getPresetProperties();

//Generate event preset properties
let properties = presetProperties.toEventPresetProperties();

//Get a specific preset property
let bundle_id = presetProperties.bundle_id;//Package name
let os = presetProperties.os;//OS type, such as iOS
let system_language = presetProperties.system_language;//Phone system language
let screen_width = presetProperties.screen_width;//Screen width
let screen_height = presetProperties.screen_height;//Screen height
let device_model = presetProperties.device_model;//Device model
let device_id = presetProperties.device_id;//Unique device identifier
let carrier = presetProperties.carrier;//Carrier of the phone's SIM card; on dual-SIM phones, the carrier of the primary SIM card is used
let manufacture = presetProperties.manufacturer;//Phone manufacturer, such as Apple
let network_type = presetProperties.network_type;//Network type
let os_version = presetProperties.os_version;//OS version
let zone_offset = presetProperties.zone_offset;//Time zone offset

IP address, country, and city information is parsed and generated on the server side. The client doesn't provide APIs to get these properties

5. Disable preset property collection

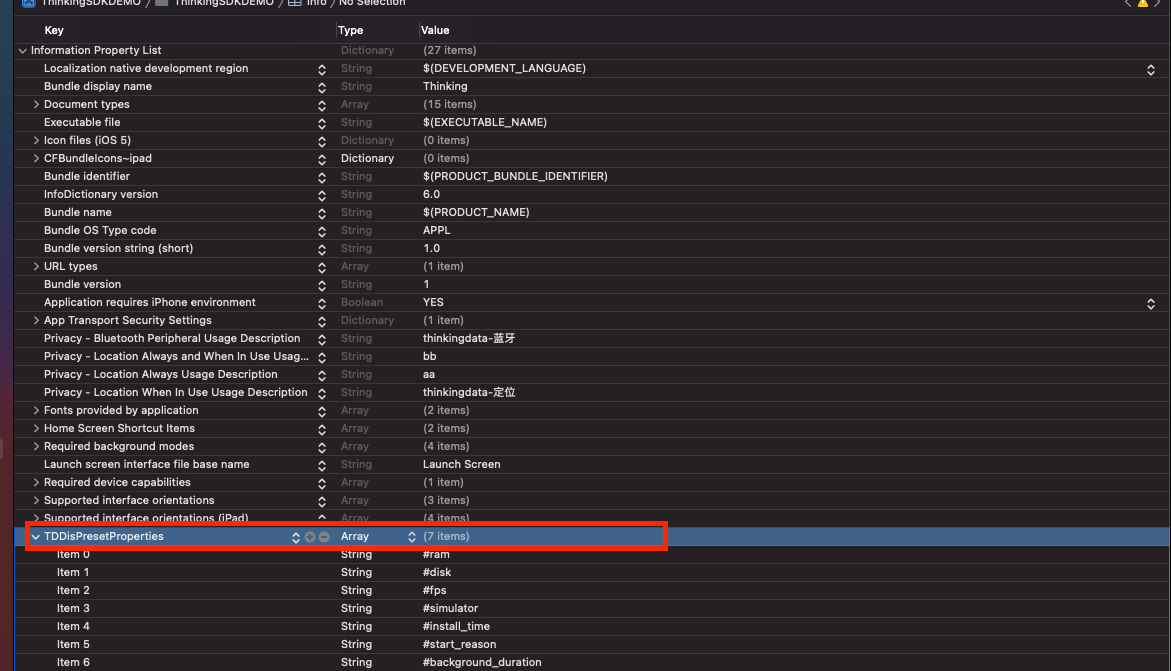

In some scenarios, for compliance or business reasons, you may want to stop collecting certain preset properties. You can add the TDDisPresetProperties field of type Array to the info.plist file of your project. The preset properties that correspond to the added fields are not uploaded. For example, to block preset properties such as @"#fps", @"#ram", @"#disk", @"#start_reason", and @"#simulator", configure them as shown in the following figure:

If you block the device ID and need to use first events, make sure you set the first_check_id property
