Custom trigger integration guide

Last updated 10/03/2026

For how to make calls, see the calling method description in the Open API document.

1. Create a custom triggered task

In the trigger rules of the custom trigger, create a trigger scene, configure a unique scene ID, and select the trigger entity ID type for the triggered task.

Tip: The scene ID that meets the trigger rules and the entity ID to trigger must match the configuration on your server for the trigger to succeed.

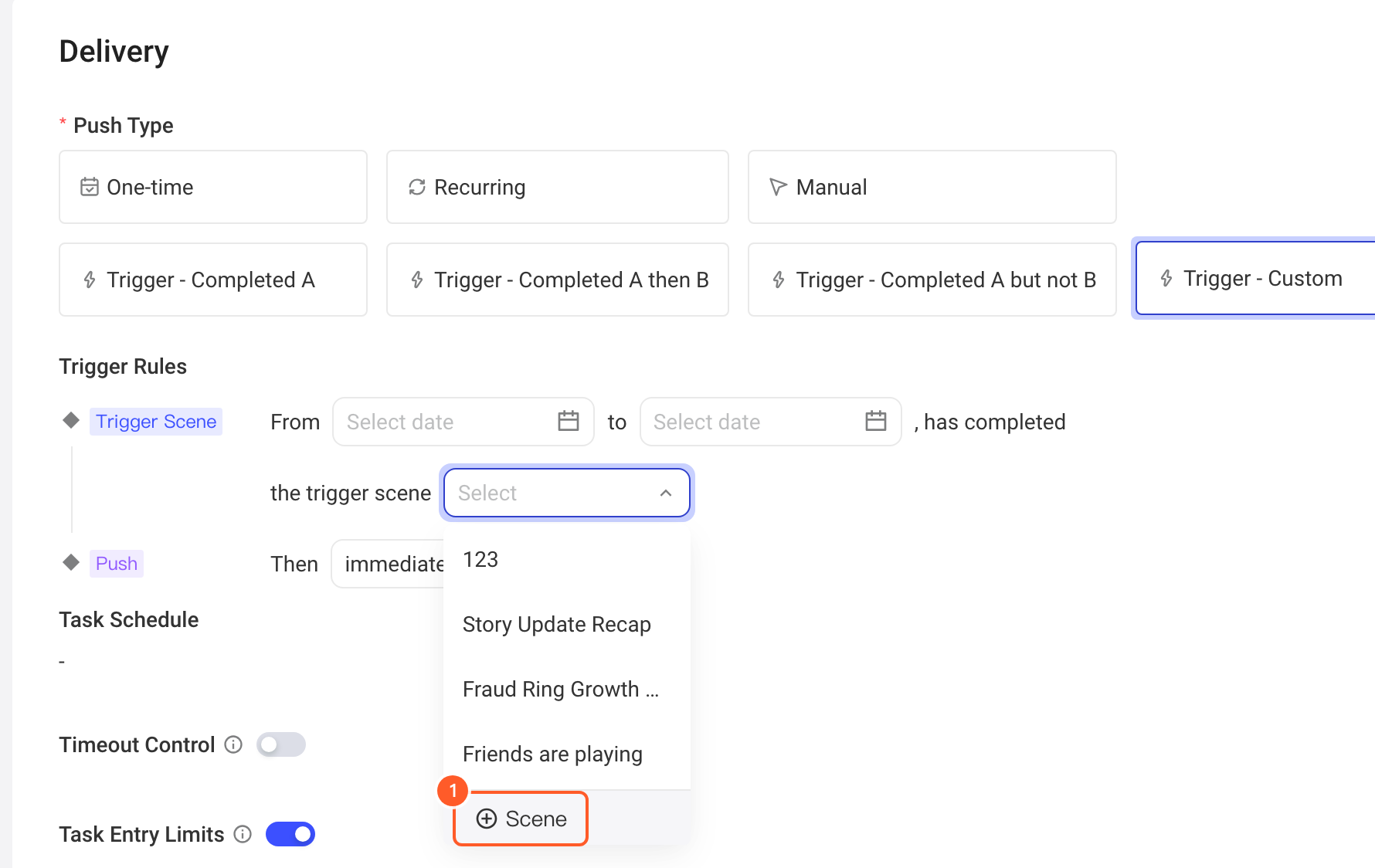

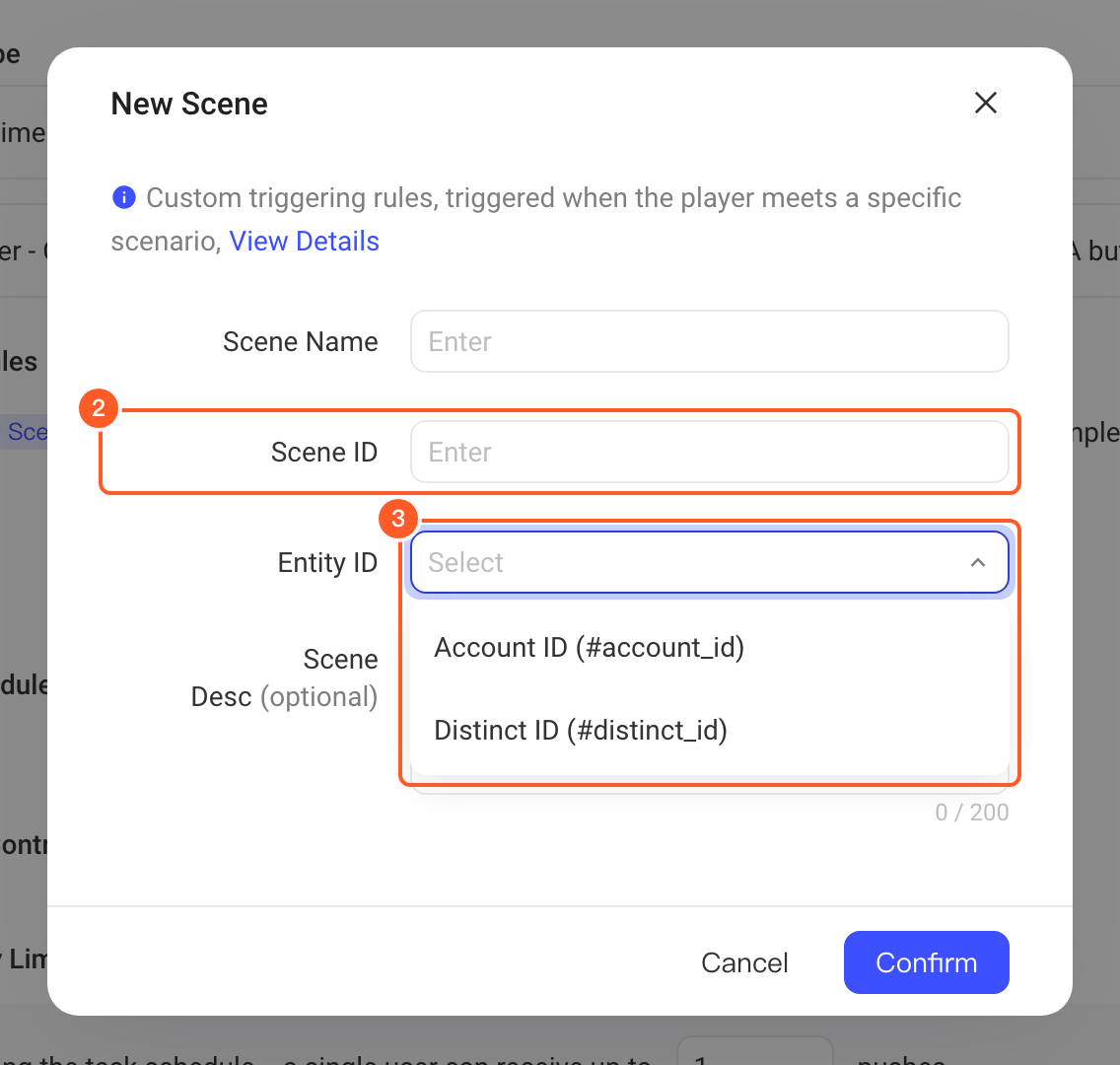

Numbers in the images: 1 creates a scene: click + Scene at the bottom of the Trigger Scene drop-down list. 2 is Scene ID in the New Scene dialog. 3 is Entity ID.

2. Call the trigger API

2.1 API URL

open/hermes/custom/trigger?token=xxx&projectId=11

2.2 Request method

POST

2.3 Content-Type

application/json

2.4 Request query parameters

Parameter name	Example value	Parameter type	Required	Description
eventuuid	xxx	String	Yes	Unique event ID
projectId	11	int	Yes	Project ID
sceneId		String	Yes	Scene ID
entityId		String	Yes	Value of the entity ID type in the scene: accountId/distinctId
eventTime		long	Yes	Event time
eventTimezone		double	Recommended; optional	Time zone of the event time. Defaults to the server time zone

2.5 Success response example

{
    "return_code": 0,
    "return_message": "success"
}

Parameter name	Example value	Parameter type	Description
return_code	0	Integer	Return code
return_message	success	String	Return message

2.6 Error response example

{
    "return_code": -1008,
    "return_message": "Invalid parameters"
}

2.7 Error codes

Error code	Description
-1008	Invalid parameters (hermes.open.service.error.eventtime.not_valid)
-1006	Token authentication failed (error.auth.authority_forbidden.token)
-1005	Too many requests/API rate limited (error.op.too_many_open_api_request)
-1023	Scene/task doesn't exist or has been deleted (error.op.not_existed_with_name)
-1011	Task status isn't In progress (hermes.open.service.error.task.status_not_working)
-1009	User not found (hermes.open.service.error.user_id.not_exit)
-1108	Duplicate event (hermes.open.service.error.task.event_id.repeat)
-1004	System error (hermes.service.error.system.common)
